Tabletops

Welding tables come in a variety of sizes to suit your unique fabrication needs. The five face design of the table using 25 mm thick plates and reinforcements underneath creates an extremely rigid table surface. A plasma nitride finish comes standard on all tables for a work surface extremely resistant to wear, deformation, corrosion, and weld spatter.

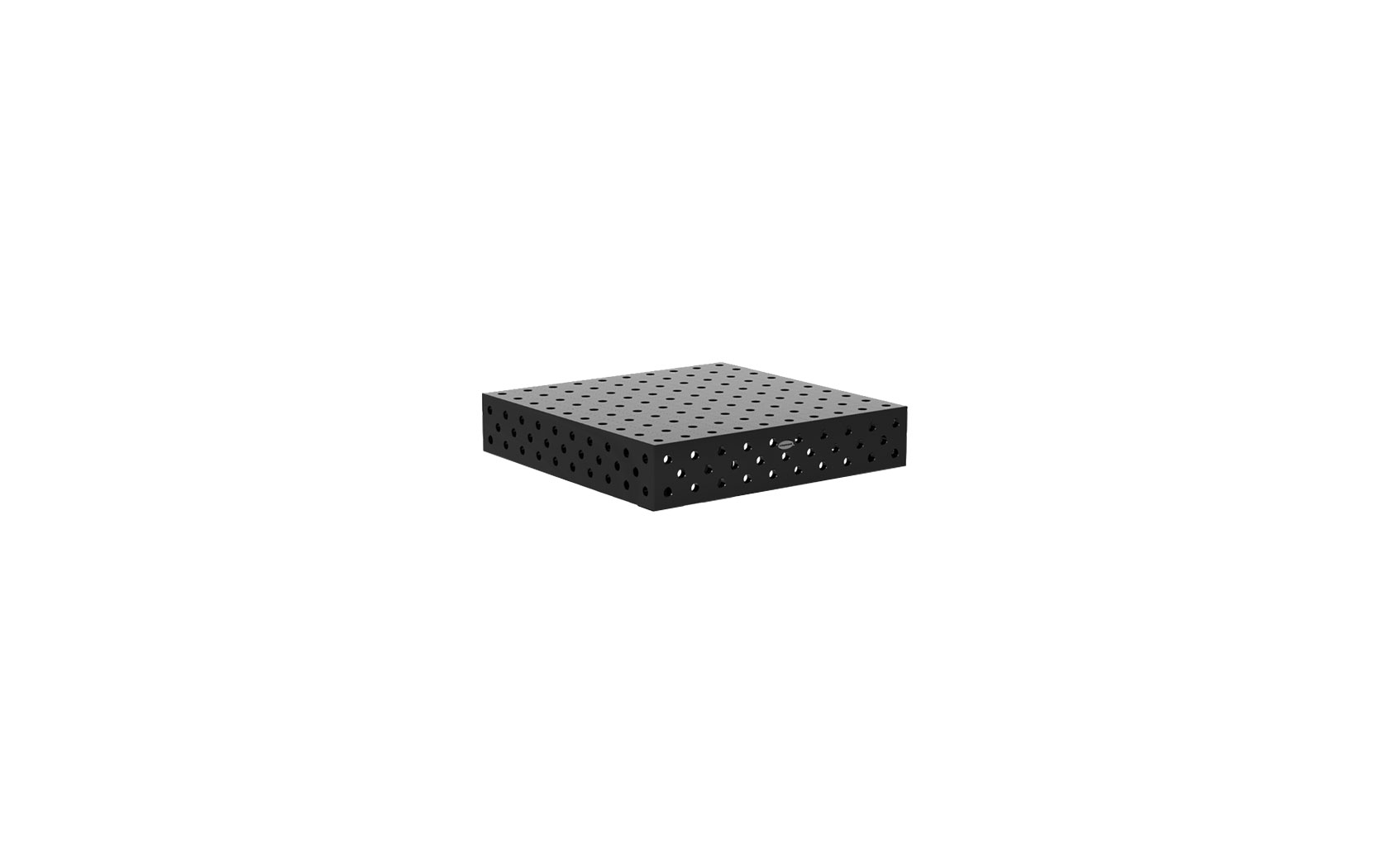

1.0 x 1.0 meter professional

1 x 1 meter Professional

(Requires 4 Legs.)

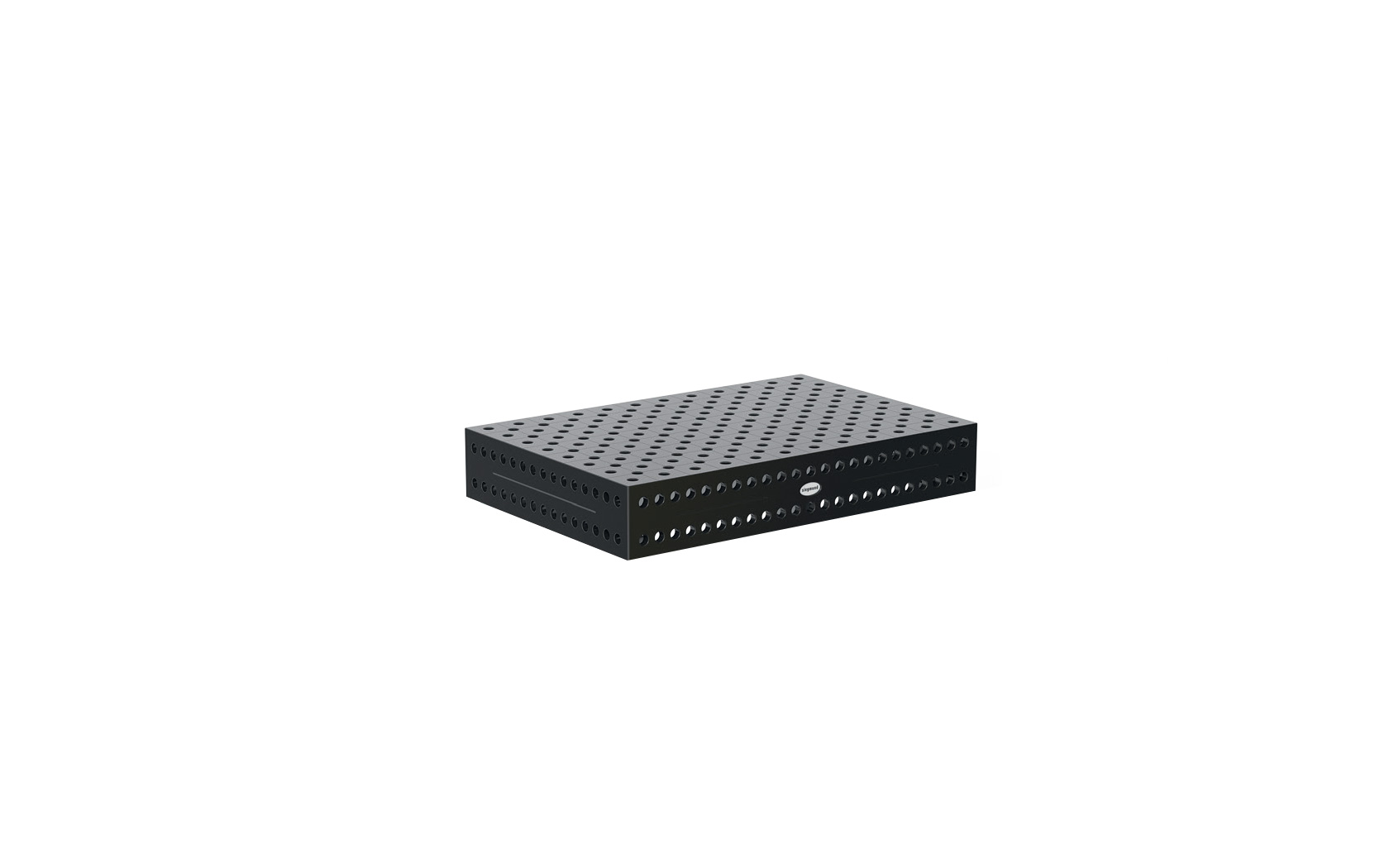

1.2 x 0.8 meter professional

1.2 x 0.8 meter Professional

(Requires 4 Legs.)

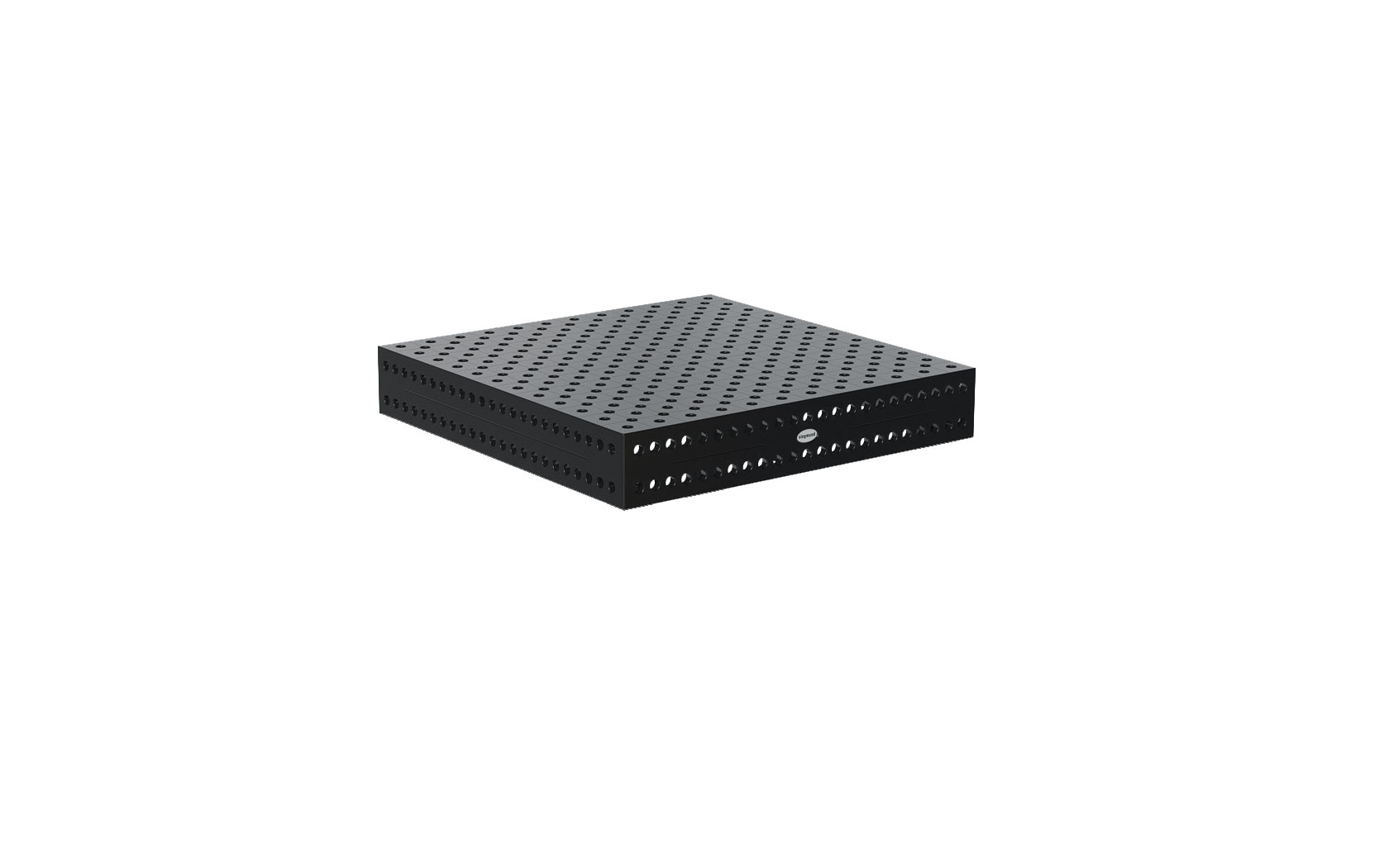

1.2 x 1.2 meter professional

1.2 x 1.2 meter Professional

(Requires 4 Legs.)

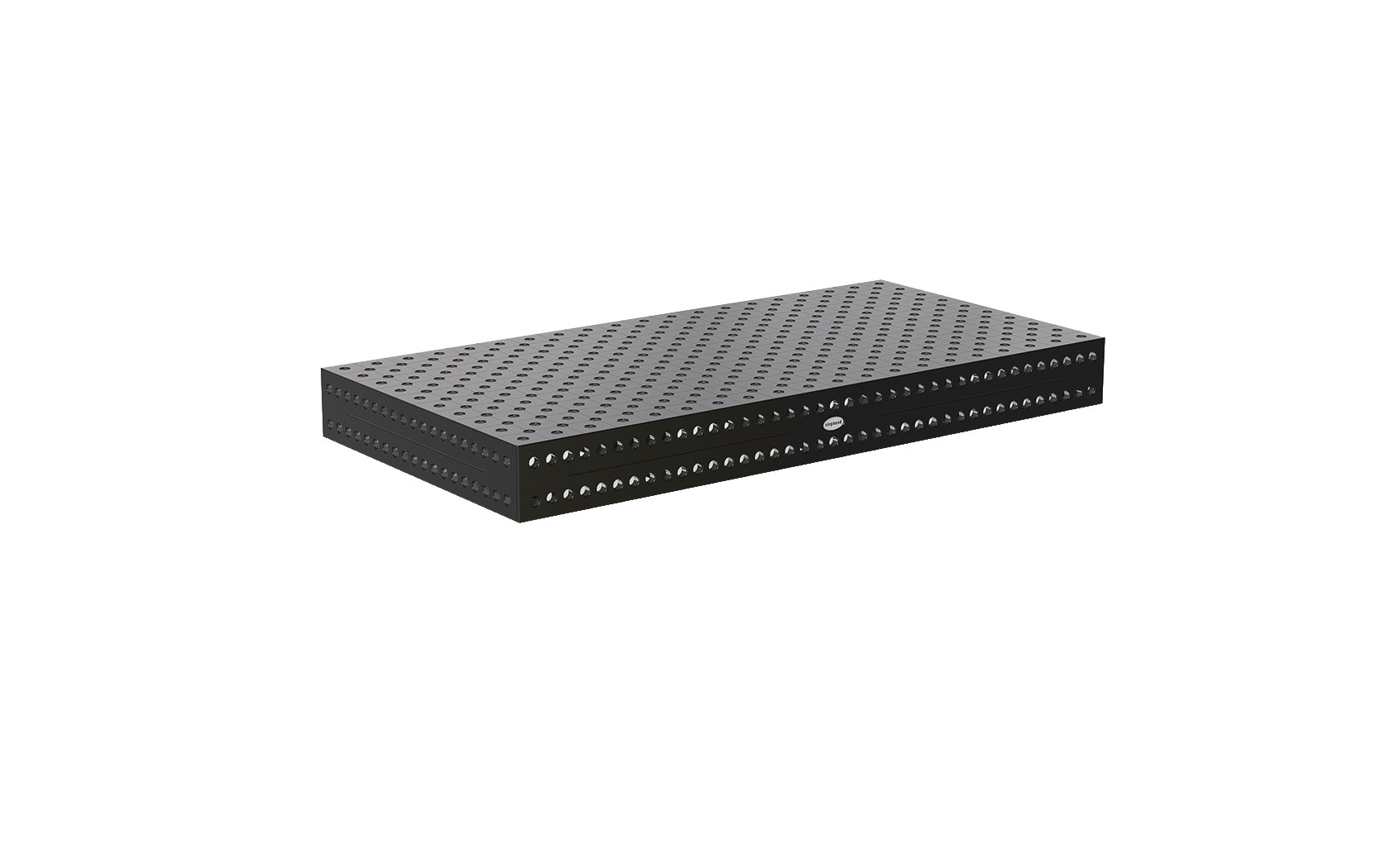

2 x 1 meter professional

2 x 1 meter Professional

(Requires 4 Legs.)

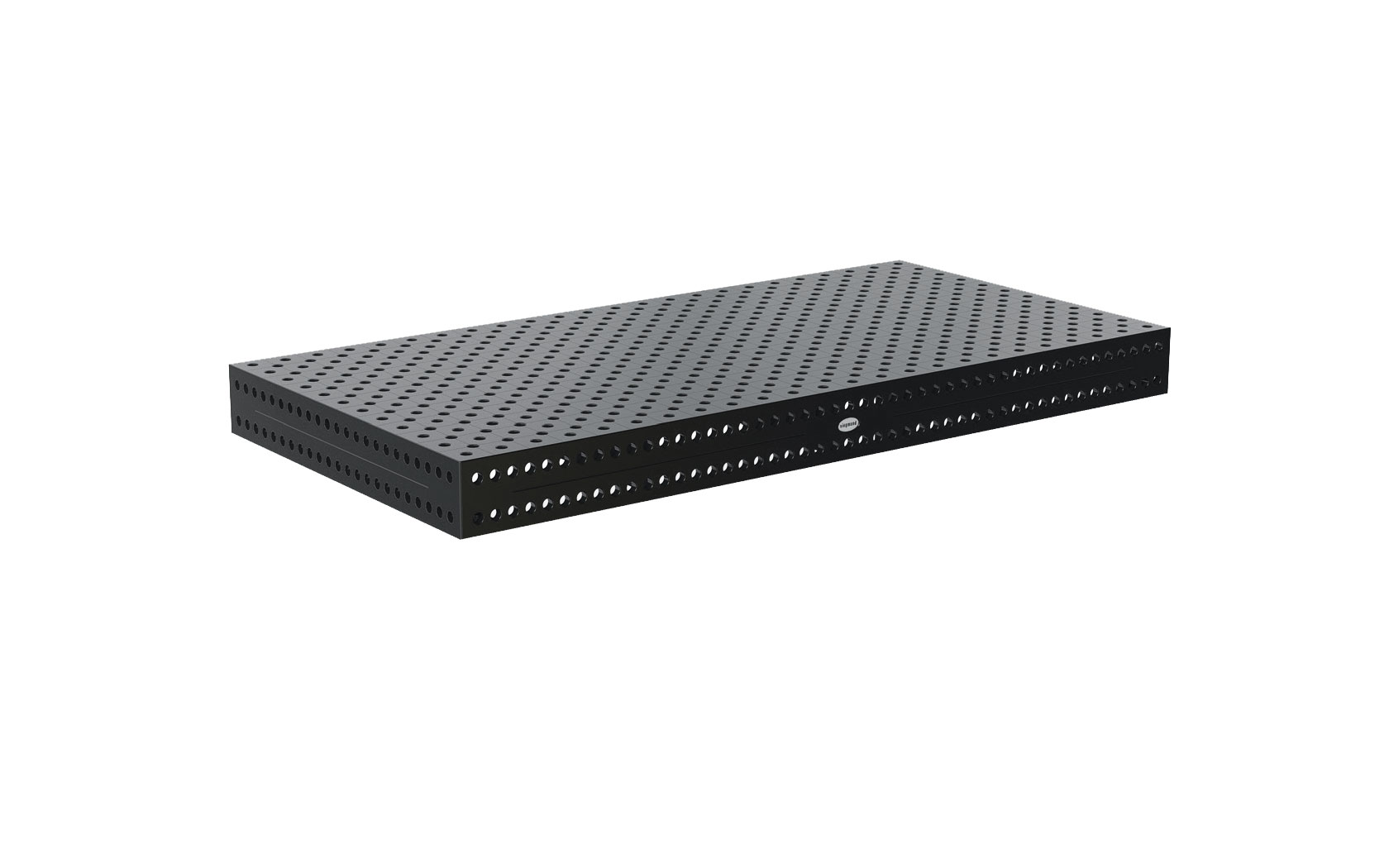

2.4 x 1.2 meter professional

2.4 x 1.2 meter Professional

(Requires 4 Legs.)

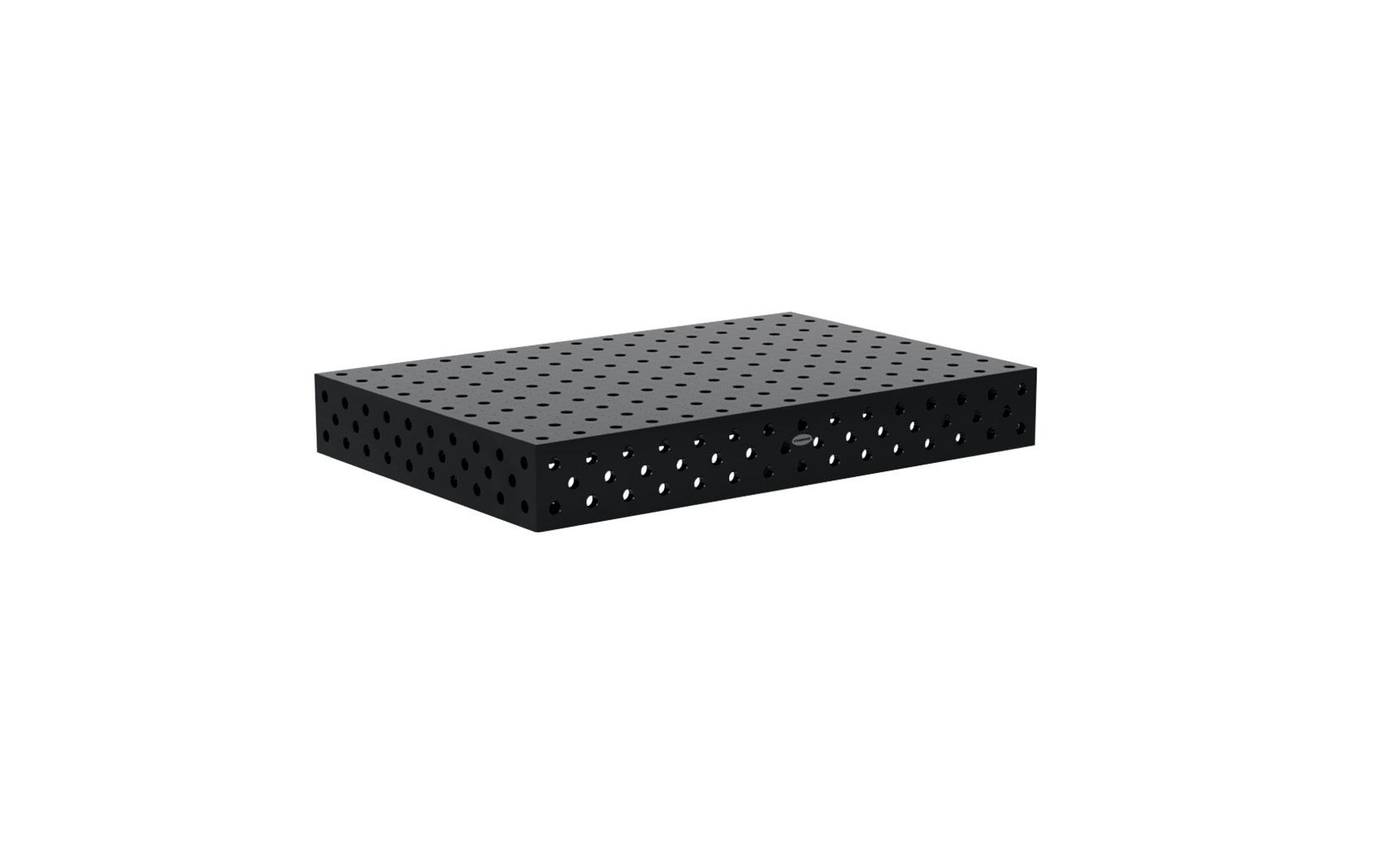

1.5 x 1.0 meter professional

1.5 x 1.0 meter Professional

(Requires 4 Legs.)

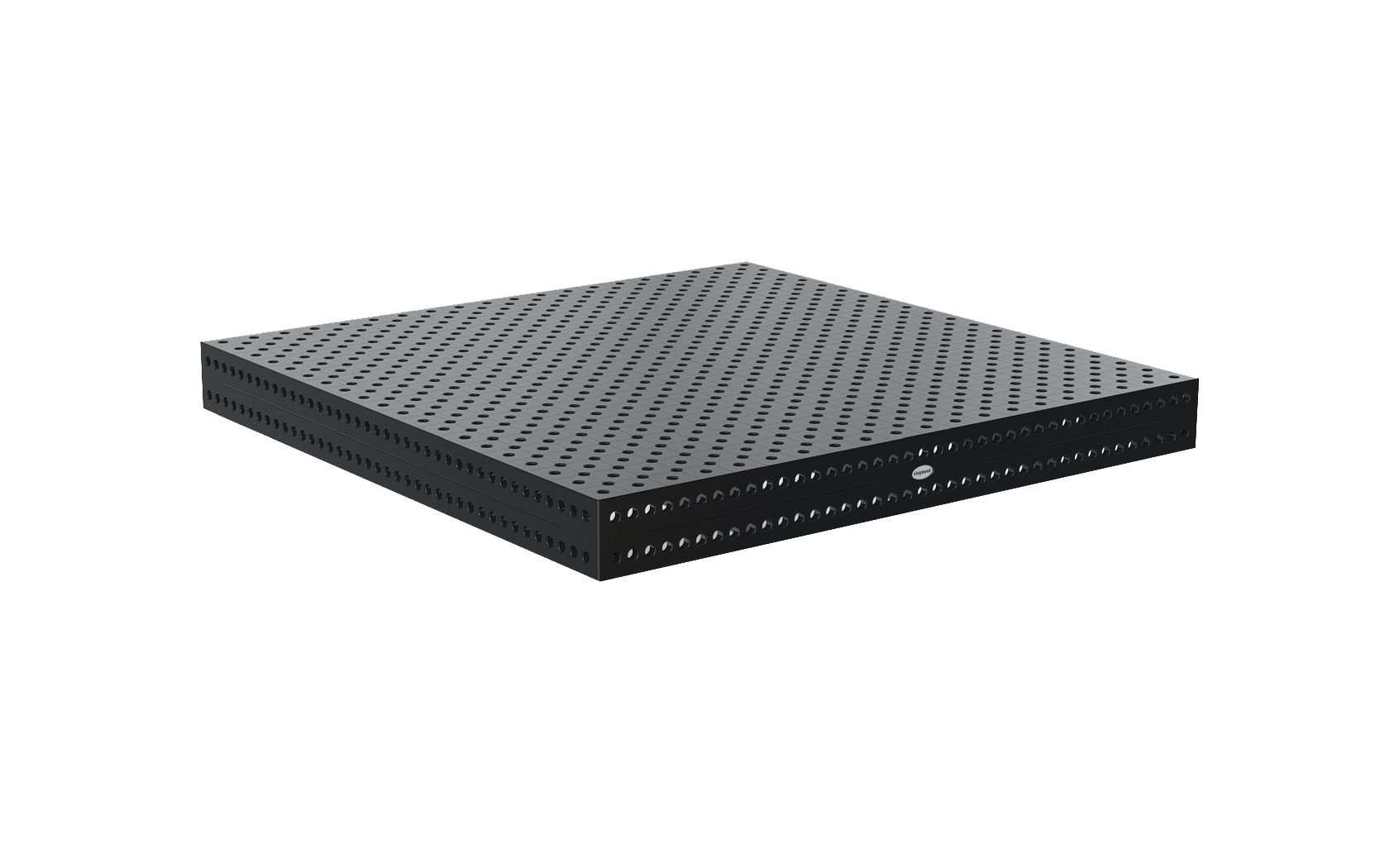

2 x 2 meter professional

2 x 2 meter Professional

(Requires 4 Legs.)

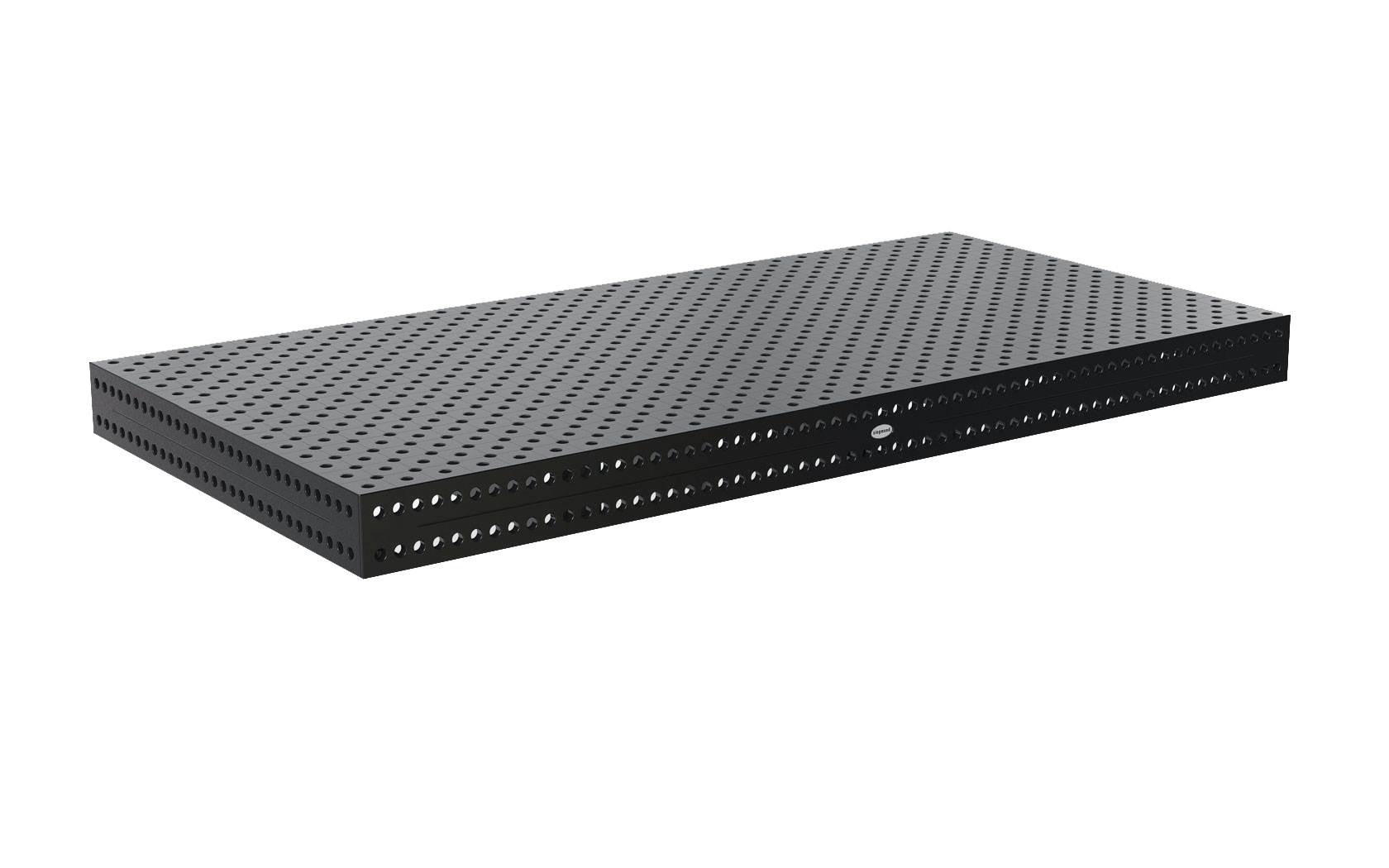

3 x 1.5 meter professional

3 x 1.5 meter Professional

(Requires 6 Legs.)
4 x 2 meter professional

4 x 2 meter Professional

(Requires 8 Legs.)

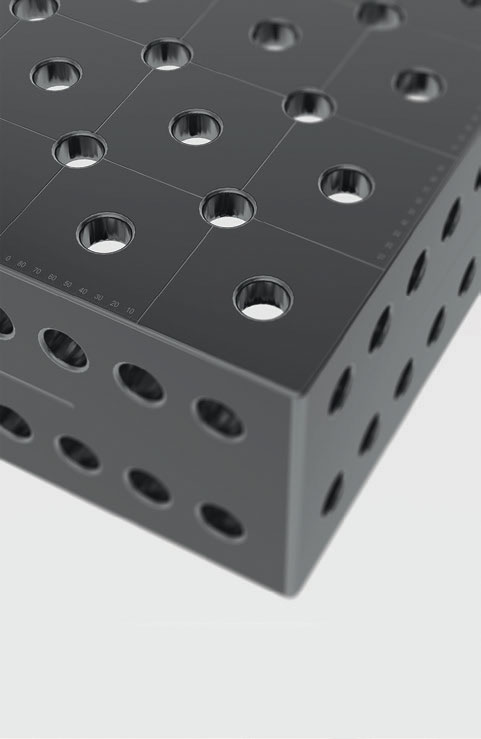

Diagonal Grid Patterns

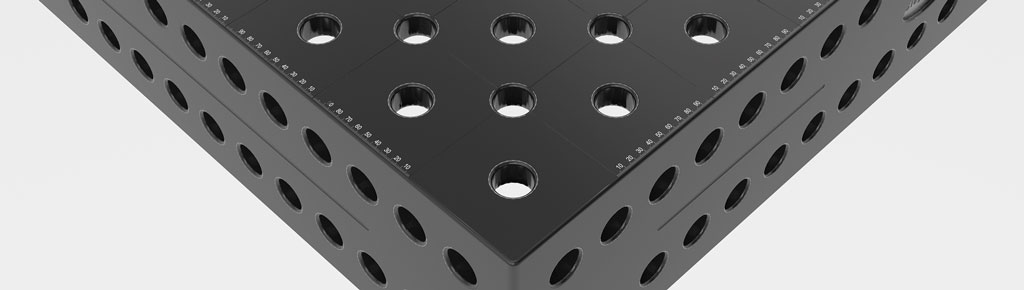

Work holes are 28 mm diameter and spaced 100 mm apart. The diagonal grid pattern provides 80-90% more fixture locations on the top face of the table for even greater flexibility.

Diagonal threaded hole pattern of M8, M12, or M16 thread available on special order as well as custom tables sizes.

Diagonal grid patten
Name (Tabletop only) Item Number Length (mm) Width (mm) Height (mm) Weight (kg) Length * (in) Width * (in) Height * (in) Weight * (lb)
S28- 1 x 1 Meter Professional Extreme 750 with Diagonal Grid S2-280010-XD7 1000 1000 200 371 39.4 39.4 7.9 816
S28- 1.2 x 0.8 Meter Professional Extreme 750 with Diagonal Grid S2-280025-XD7 1200 800 200 363 47.2 31.5 7.9 799
S28- 1.2 x 1.2 Meter Professional Extreme 750 with Diagonal Grid S2-280015-XD7 1200 1200 200 493 47.2 47.2 7.9 1085
S28- 2 x 1 Meter Professional Extreme 750 with Diagonal Grid S2-280020-XD7 2000 1000 200 673 78.7 39.4 7.9 1481
S28- 2.4 x 1.2 Meter Professional Extreme 750 with Diagonal Grid S2-280030-XD7 2400 1200 200 918 94.5 47.2 7.9 2020
S28- 1.5 x 1.0 Meter Professional Extreme 750 with Diagonal Grid S2-280035-XD7 1500 1000 200 526 59.1 39.4 7.9 1157
S28- 2 x 2 Meter Professional Extreme 750 with Diagonal Grid S2-280045-XD7 2000 2000 200 1217 78.7 78.7 7.9 2677
S28- 3 x 1.5 Meter Professional Extreme 750 with Diagonal Grid S2-280040-XD7 3000 1500 200 1411 118.1 59.1 7.9 3104
S28- 4 x 2 Meter Professional Extreme 750 with Diagonal Grid S2-280055-XD7 4000 2000 200 2380 157.5 78.7 7.9 5236
* Values approximate. Values truncated (not rounded).
