Siegmund Welding Tables come with a wide range of mounting options to suit every workspace. Legs are ordered individually and the quantity required will vary depending on table size.

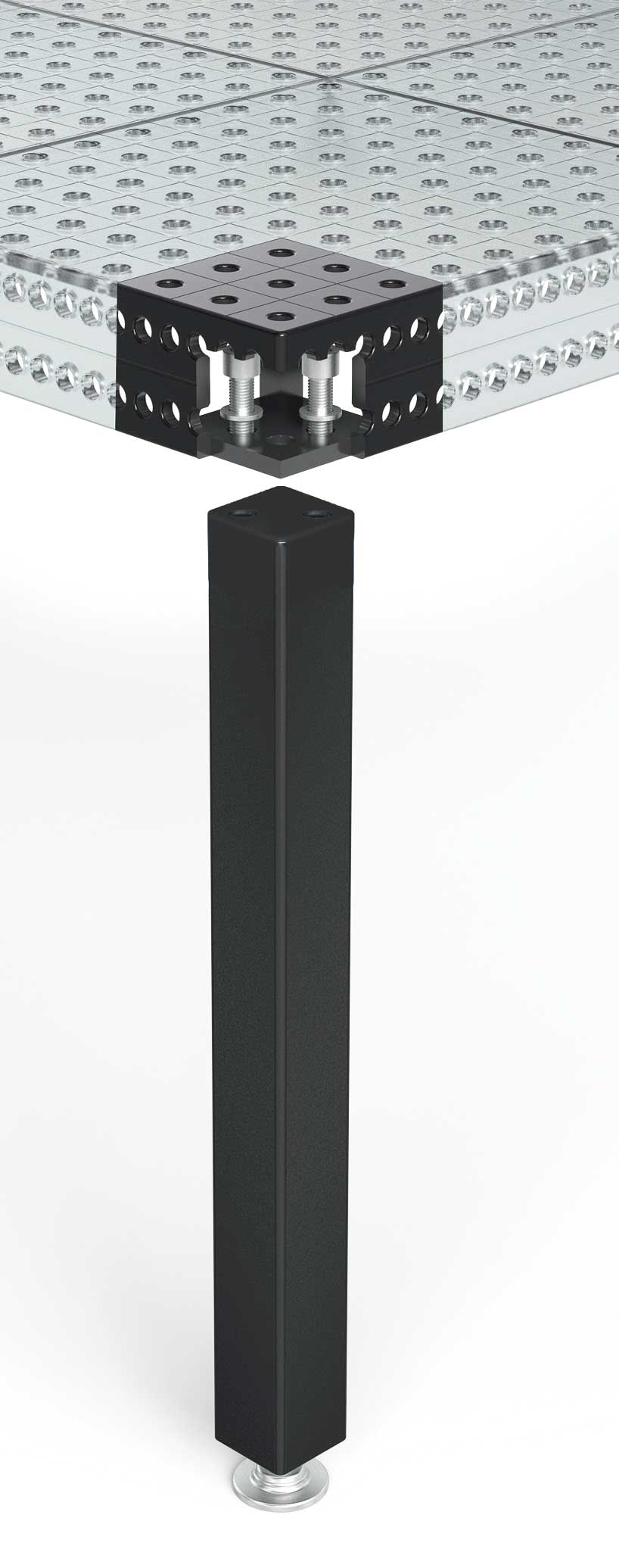

Legs mount onto plates at the bottom of the table; to calculate height of work surface add the height of the leg and the height of the table together. For example, the 750 mm Standard Leg combined with a table height of 100 mm results in a 850 mm high work surface. Leveling feet with spindles at the bottom of the legs offer fine adjustment.
S2-160857-X
S2-160858-X
S2-160877-X
* S2-160876-X
* S2-160879-X
S2-160873-X
S2-160875-X
The maximum bearing load per leg in system 16 is max. 200 - 1.000 kg for all tables depending on the leg type.
The indicated bearing loads are calculated with reserves for safety reasons.
Please consult with manufacturer if higher overall loads are required.
Two 14 mm hex drive cap screws with spring rings are included with each leg.
Each table leg bolt should be tightened with a torque of 150 Nm.

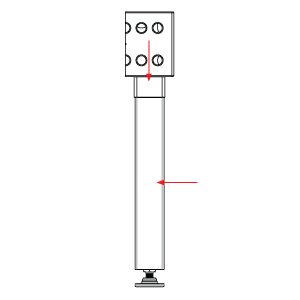

Vertical force direction: 10 kN
Horizontal force direction: Maximum stability ensured by large section tube (70 x 70 mm).
| Item Number | Name | Height (mm) | Spindle Adj. Range (mm) | Static Load Capacity (kg) | Weight (kg) |
|---|---|---|---|---|---|

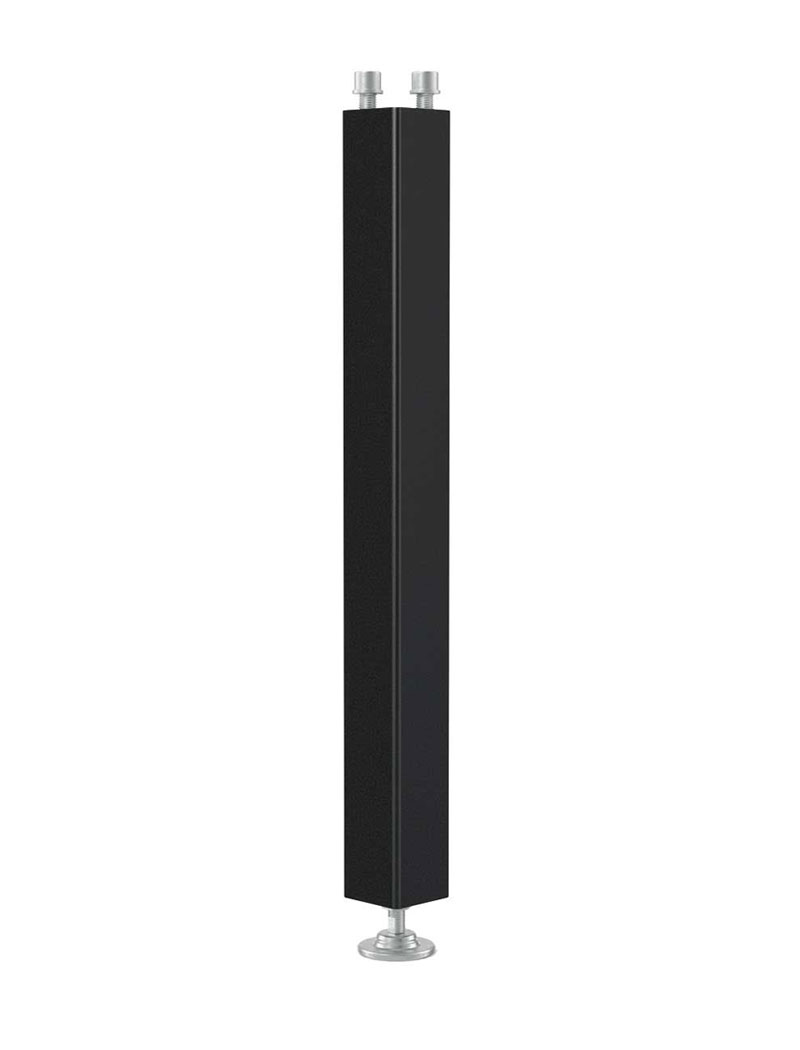

| S2-160857-X | Leg Standard equipment 850 | 850 | 40 | 1000 Per leg | 6.7 |
| S2-160858-X | Leg Standard equipment 750 | 750 | 40 | 1000 | 6.1 |

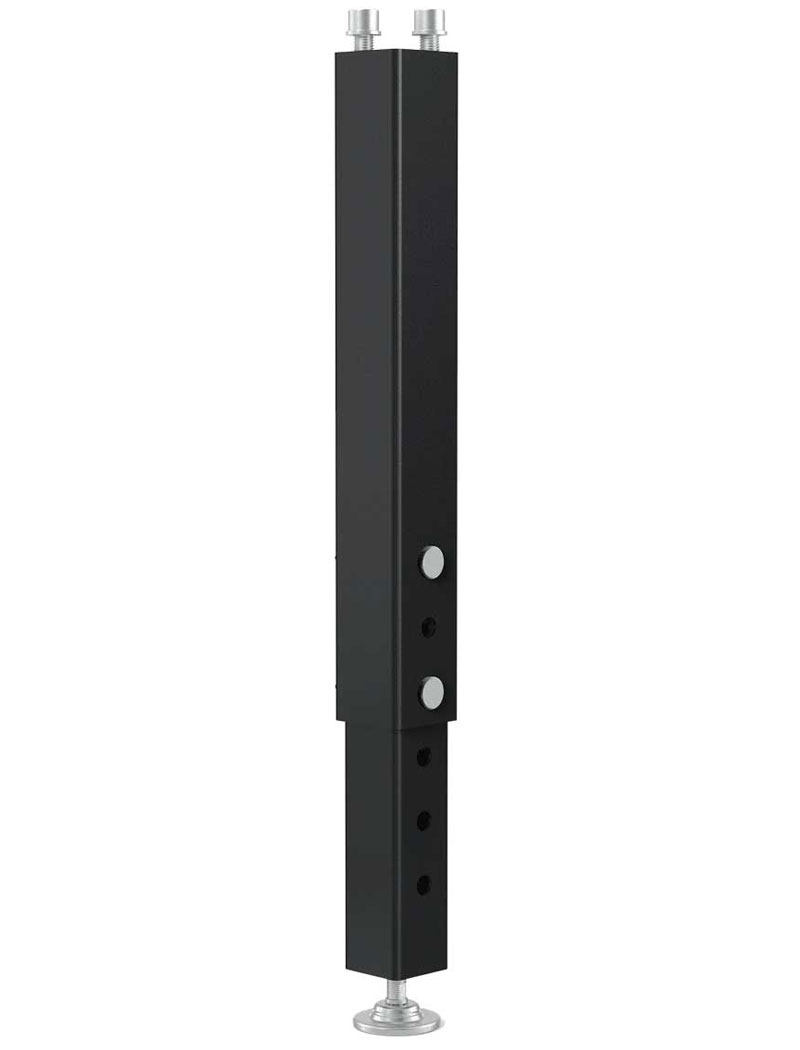

| S2-160877-X | Leg height - adjustable 550 - 950 | 550 - 950 | 40 | 1000 | 7.0 |

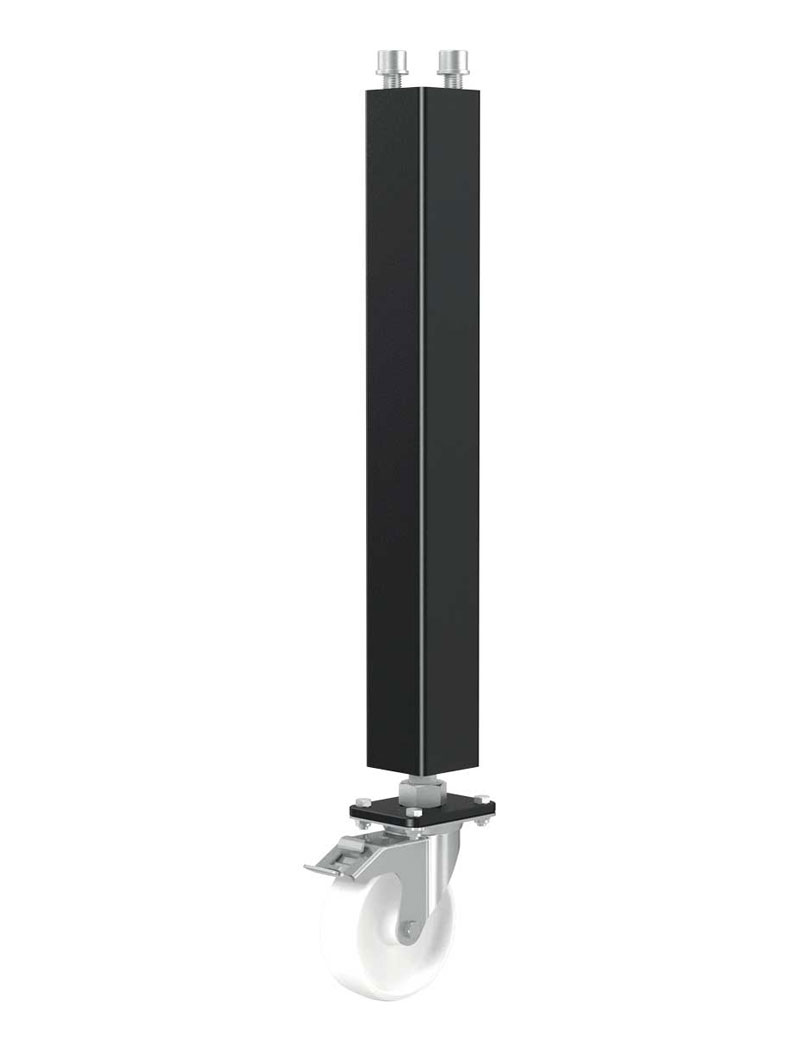

| *S2-160876-X | Leg with Caster and Locking Brake 750 | 750 | 40 | 200 | 7.0 |

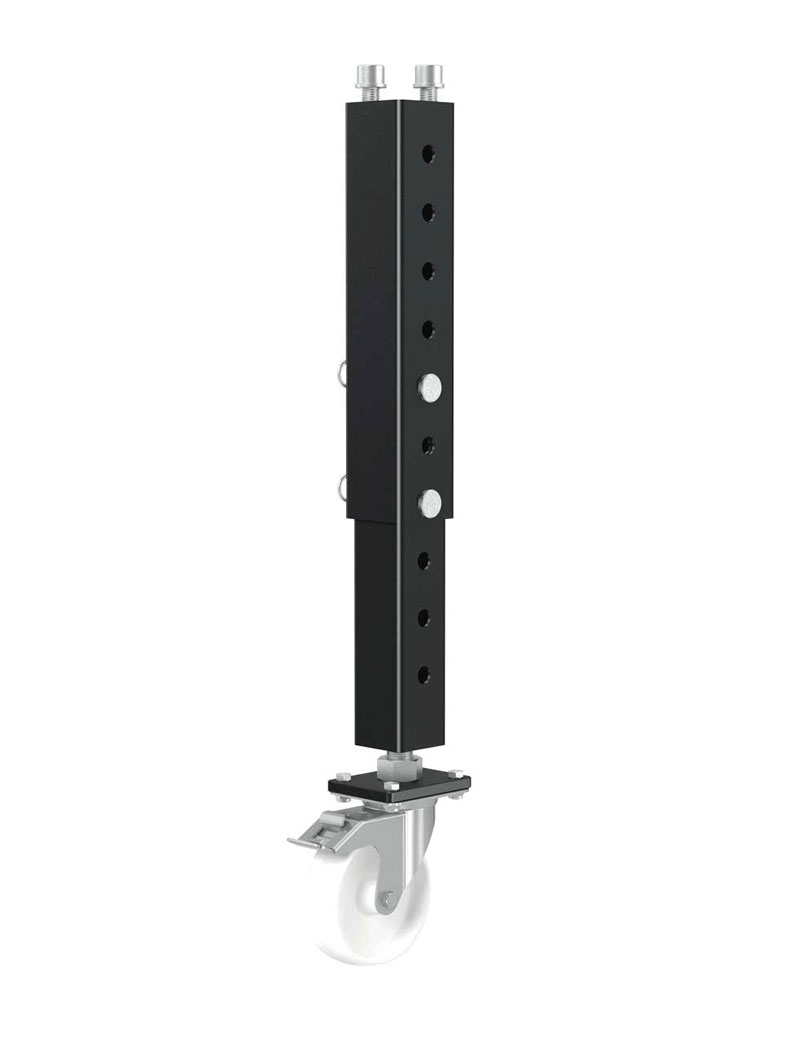

| *S2-160879-X | Leg height - adjustable with Caster and Locking Brake 600 - 900 | 600 - 900 | 40 | 200 | 8.0 |

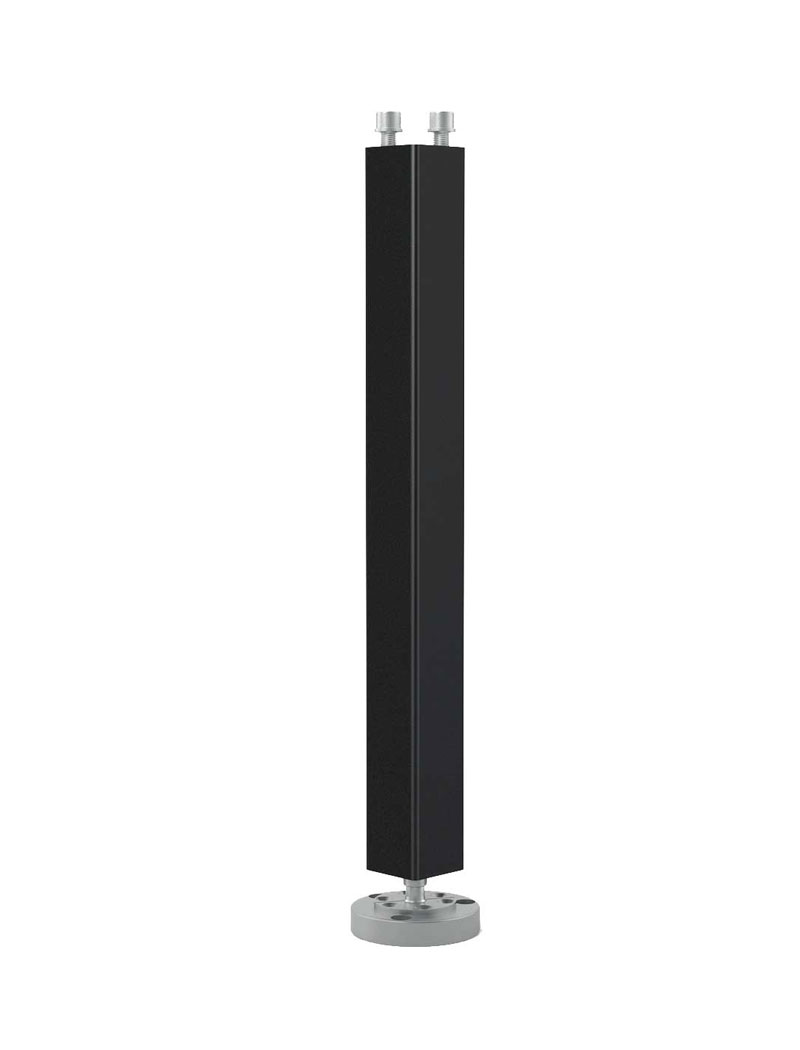

| S2-160873-X | Leg with Floor Anchoring 850 | 850 | 50 | 1000 | 9.3 |
| S2-160875-X | Leg with Floor Anchoring 750 | 750 | 50 | 1000 | 8.3 |
