S2-280300
S2-280301

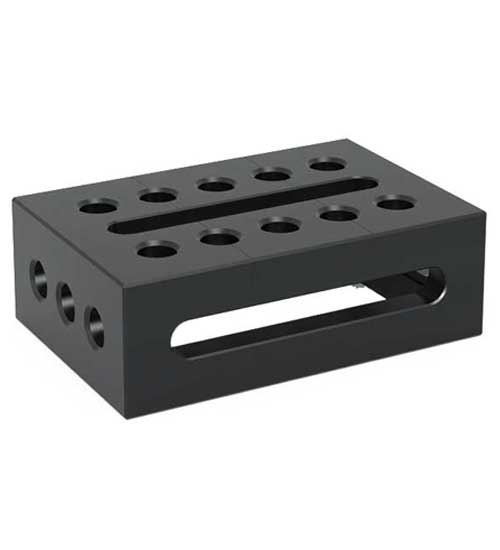

The Support and Clamping Frame features bore holes on a 50 mm grid with slots. Two versions with stops on either left or right side.

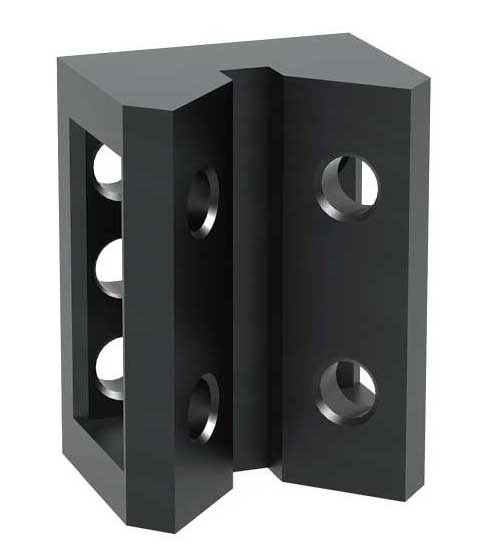

The Corner Square is used to mount clamping squares or U-shapes at table corners to extend the work surface. S2-280191-G can also be used as large V-blocks to hold round tubing in place when mounted with low profile bolts (S2-280522).
S2-280190-G
S2-280191-G
S2-280455
Angle Protractor w/ Spacer Sleeve allows adjustment in 10 degree increments or continuously variable from 0 - 90 degrees with 1 degree scale.
S2-280170

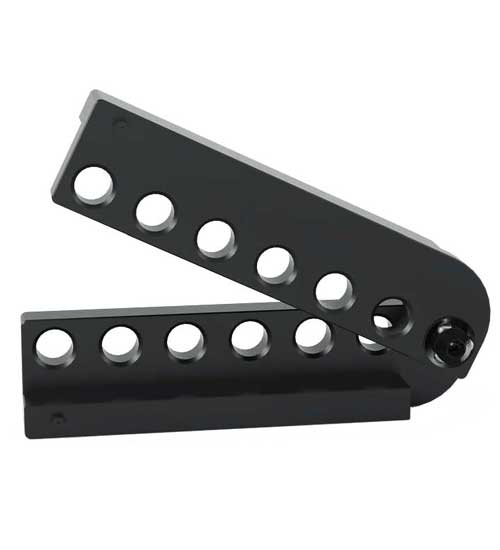

Adjustable Angle Bracket provides high repeat accuracy from 10 - 150 degrees. Angle can be set with included pins and angle template.
S2-280171
Load-Bearing Adjustable Angle uses a hydro mechanical mechanism and angle guide to lock angle into position.
| Item Number | Description | Length (mm) | Width (mm) | Height (mm) | Weight (kg) |
|---|---|---|---|---|---|
| S2-280300 | Support and Clamping Frame, nitrided - stop on right |
300 | 200 | 100 | 19.5 |
| S2-280301 | Support and Clamping Frame, nitrided - stop on left |
300 | 200 | 100 | 19.5 |
| S2-280190-G | Corner Connection, Cast Iron | 200 | 150 | 120 | 11.8 |
| S2-280191-G | Corner Connection, Cast Iron | 200 | 200 | 175 | 19.7 |
| S2-280455 | Angle Protractor w/ 20 mm Spacer Sleeve (S2-280538) | 250 | 250 | 5 | 1.5 |
| S2-280170 | Adj. Angle Bracket w/ angle template, non-load bearing | 350 | -- | -- | 14.5 |
| S2-280171 | Load Bearing Adj. Angle | 475 | -- | -- | 23.0 |
