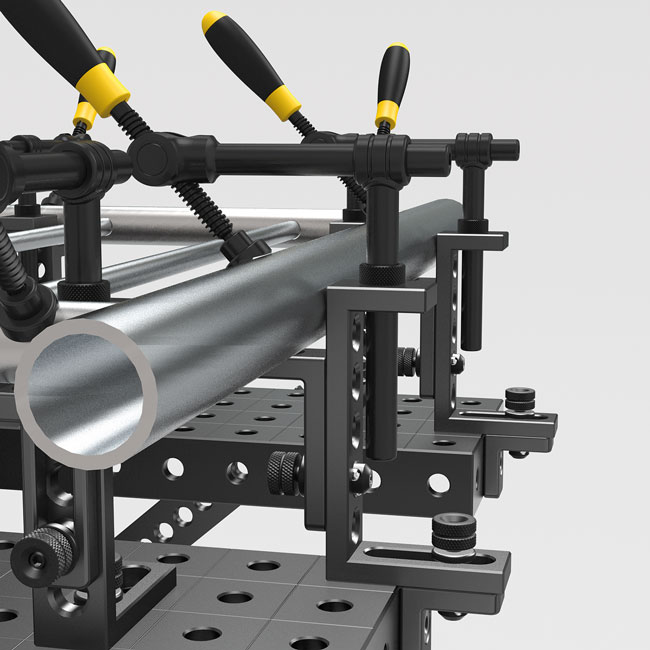

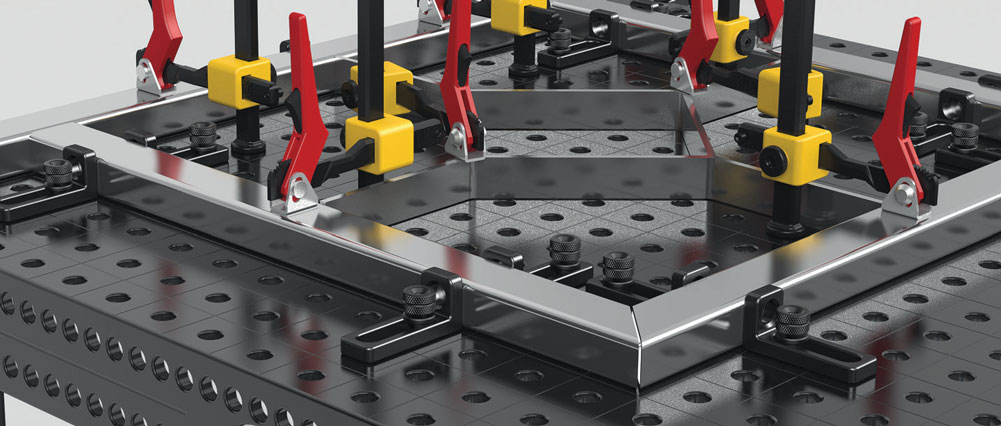

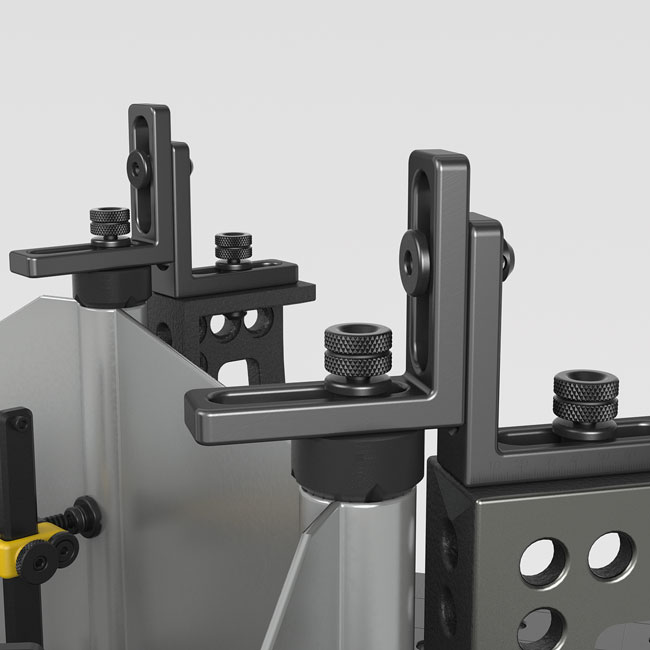

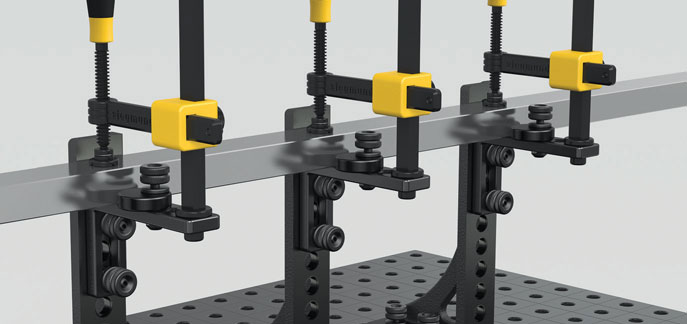

Stop and Clamping Squares can be used in the same manner as a stop or combined with other elements to form more complex fixtures. Oblong slots enable a range of adjustable options.
S2-160105
S2-160108-N
S2-160109
S2-160110-N
S2-160111
S2-160113
| Item Number | Name | Length (mm) | Width (mm) | Height (mm) | Thickness (mm) | Weight (kg) |
|---|---|---|---|---|---|---|

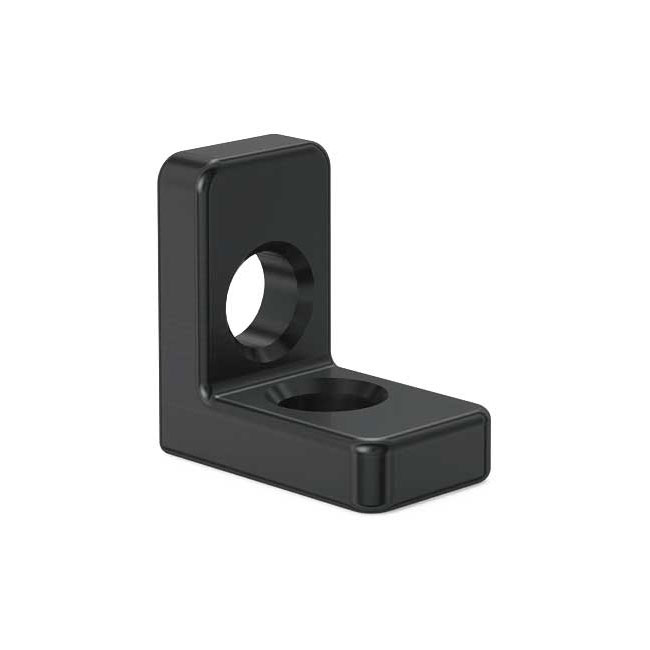

| S2-160105 | Stop and Clamping Square 50 L | 50 | 30 | 50 | 12 | 0.20 |
| S2-160108-N | Stop and Clamping Square 90 X | 90 | 30 | 25 | 12 | 0.19 |

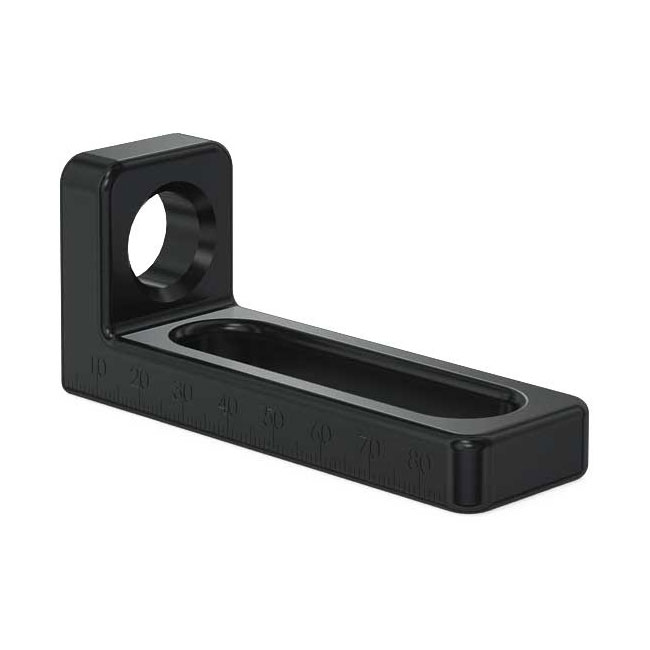

| S2-160109 | Stop and Clamping Square 90 SL with fine scaling on both sides | 90 | 30 | 40 | 12 | 0.21 |
| S2-160110-N | Stop and Clamping Square 90 L - Nitrided with fine scaling on both sides |
90 | 30 | 90 | 12 | 0.31 |

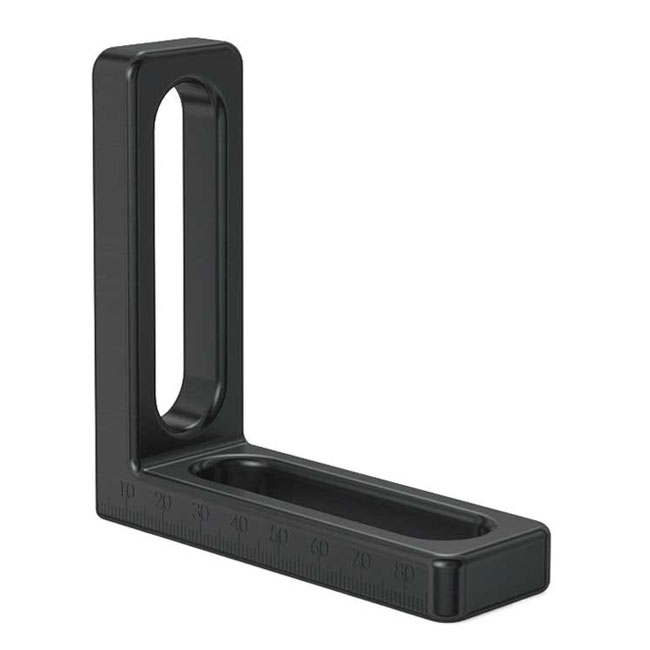

| S2-160111 | Stop and Clamping Square 90 WL with fine scaling on both sides | 90 | 30 | 90 | 12 | 0.27 |
| S2-160113 | Stop and Clamping Square 90 VL with fine scaling on both sides | 90 | 30 | 90 | 12 | 0.34 |
S2-160112
S2-160114
S2-160162
S2-160164
| Item Number | Name | Length (mm) | Width (mm) | Height (mm) | Thickness (mm) | Weight (kg) |
|---|---|---|---|---|---|---|

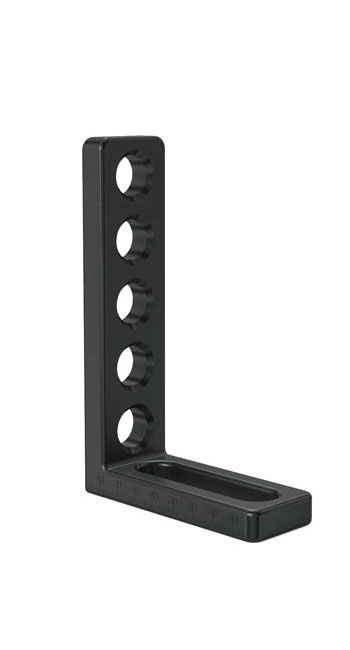

| S2-160112 | Stop and Clamping Square 140 L with fine scaling on both sides | 90 | 35 | 140 | 12 | 0.51 |

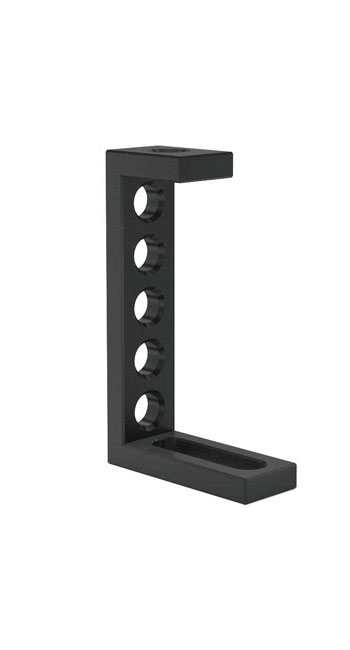

| S2-160114 | Stop and Clamping Square 150 L | 90 | 35 | 150 | 12 | 0.65 |
| S2-160162 | Stop and Clamping Square 300 G - stop on left |
150 | 50 | 300 | 12 | 2.40 |

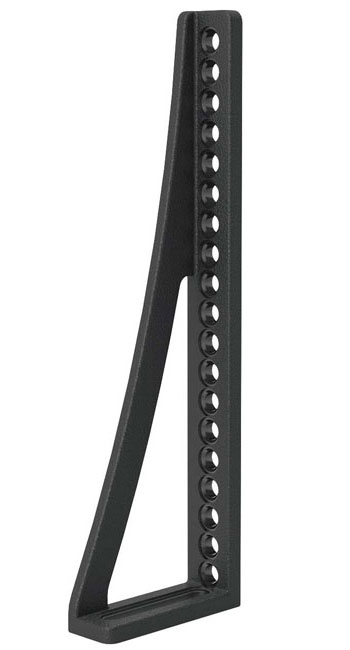

| S2-160164 | Stop and Clamping Square 500 G - stop on left |
150 | 50 | 500 | 12 | 4.40 |
