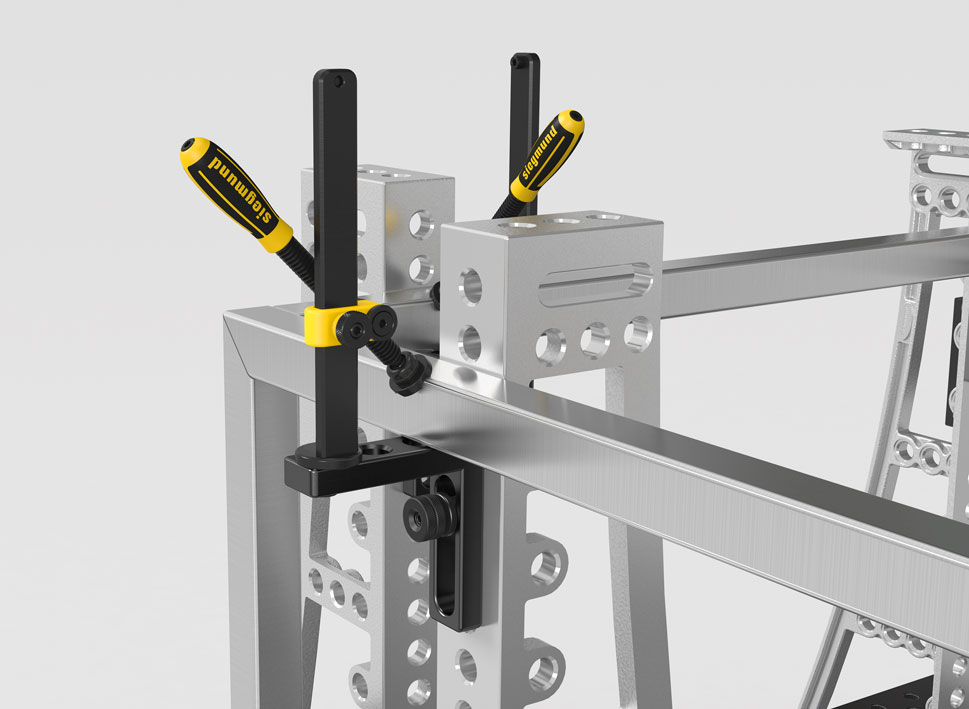

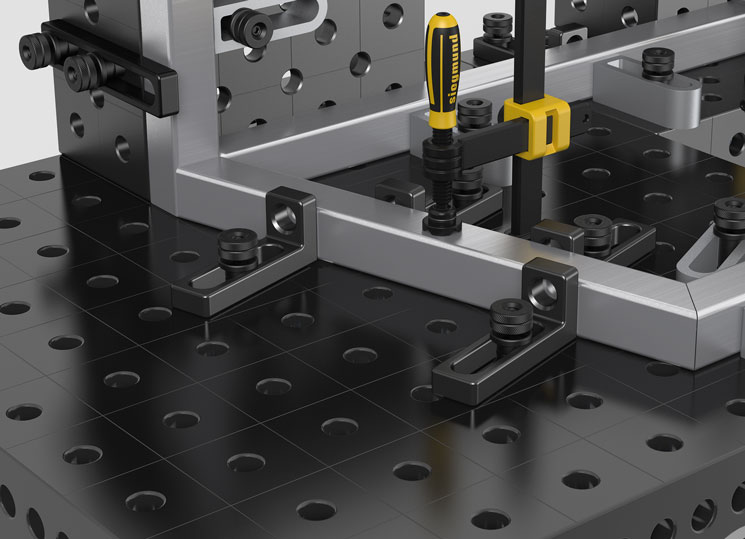

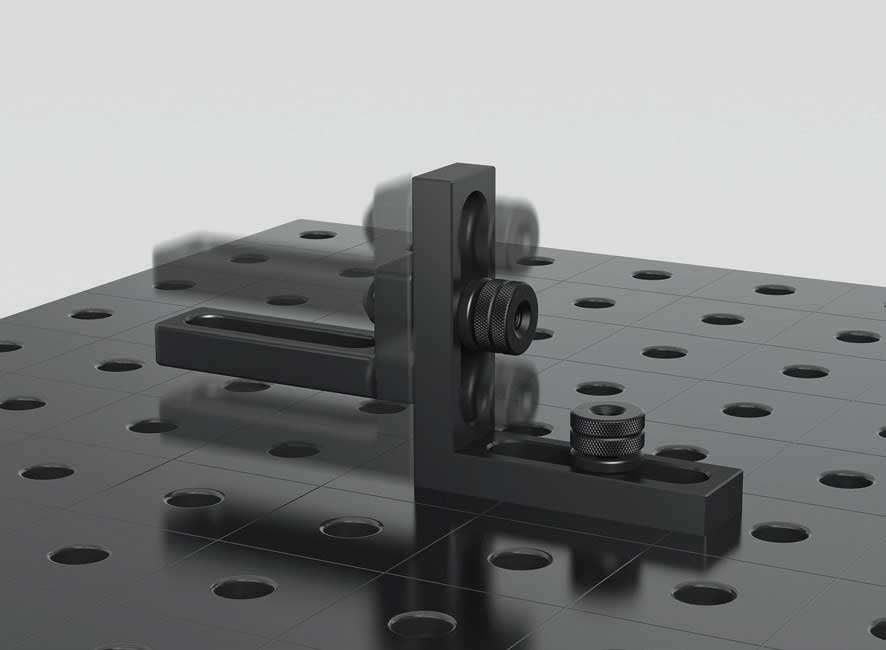

Stop and Clamping Squares can be used in the same manner as a stop or combined with other elements to form more complex fixtures. Oblong slots enable a range of adjustable options.
S2-280109
S2-280110-N
S2-280111
S2-280113
S2-280114
S2-280112
| Item Number | Name | Length (mm) | Width (mm) | Height (mm) | Thickness (mm) | Weight (kg) |
|---|---|---|---|---|---|---|

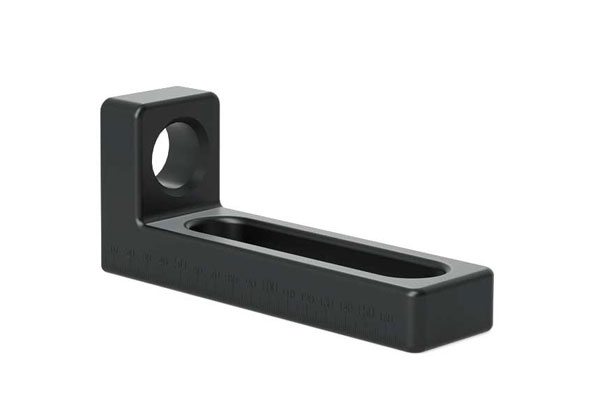

| S2-280109 | Stop and Clamping Square 175 x 75 SL | 175 | 50 | 75 | 25 | 1.4 |
| S2-280110-N | Stop and Clamping Square 175 L (Nitrided) | 175 | 50 | 175 | 25 | 2.0 |

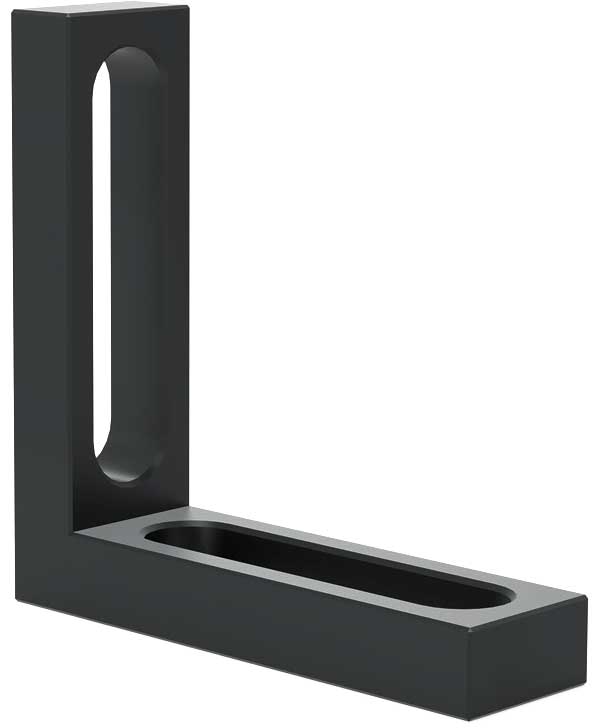

| S2-280111 | Stop and Clamping Square 175 WL | 175 | 50 | 175 | 25 | 1.8 |
| S2-280113 | Stop and Clamping Square VL | 175 | 50 | 175 | 25 | 2.4 |

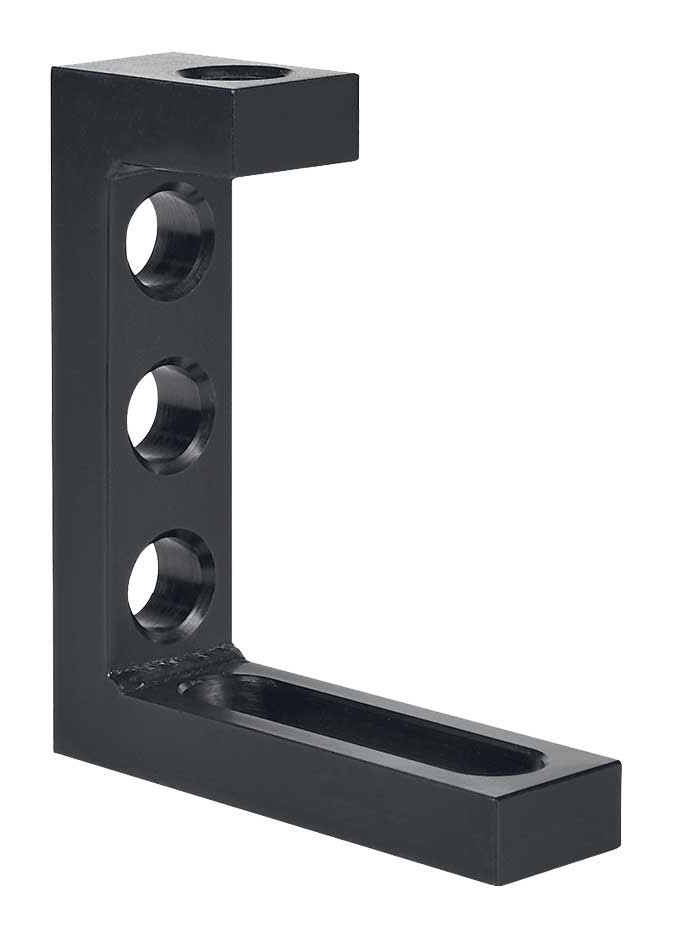

| S2-280114 | Stop and Clamping Square 200 L | 175 | 50 | 200 | 25 | 2.7 |

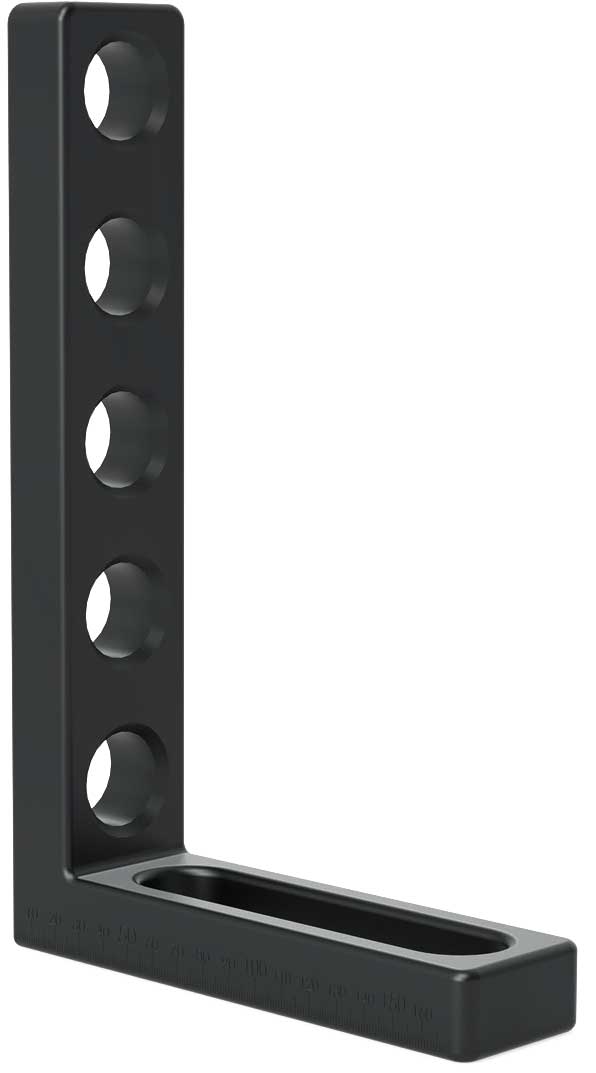

| S2-280112 | Stop and Clamping Square 275 L | 175 | 50 | 275 | 25 | 2.8 |
