System 16

NEW! PROFESSIONAL EXTREME 750

All System 16 Professional Extreme tables now feature the latest upgrades in aesthetics, versatility, and durability. Our Double Hardened Tables are constructed from through hardened steel before undergoing a Plasma Nitride treatment to provide you with a table of superior quality and performance.

MATERIAL THICKNESS

MATERIAL THICKNESS

11.5 - 13 mm
VICKERS HARDNESS GRADE

Table top: Surface hardness: approx. 750
Table side: Surface hardness: approx. 550

* The four side faces are still constructed from our standard, high quality S355J2+N (St 52/3) Steel to provide the ideal balance of properties for performance, durability, and cost.

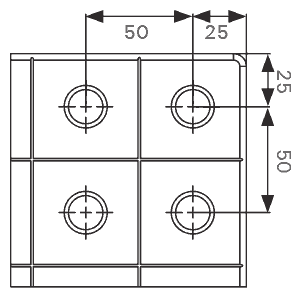

Table surface

DATA

  • borehole spacing 50 mm
  • grid line spacing 50 mm

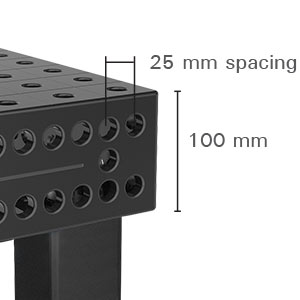

TABLE SIDE PANEL

TABLE SIDE PANEL

  • 100 mm high
  • additional boreholes enable parallel clamping in a 25 mm wide by 50 mm high grid

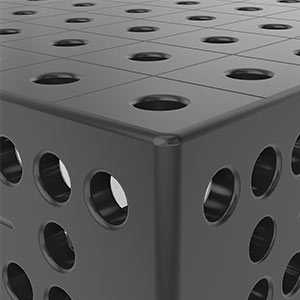

ELABORATE RADIUSES

ELABORATE RADIUSES

  • 3 mm radius of top table edge reduces damages to Siegmund accessories and customers components
  • 6 mm radius on edges reduces risk of injury

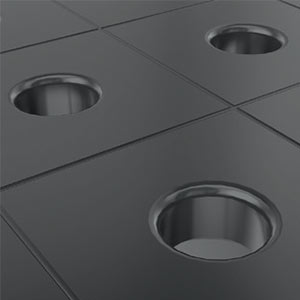

SYSTEM BOREHOLE

SYSTEM BOREHOLE

  • Ø 16 mm
  • radius R2 for boreholes on the table surface allow for faster clamping
  • large chamfer on table underside for maximum clamping force of bolts

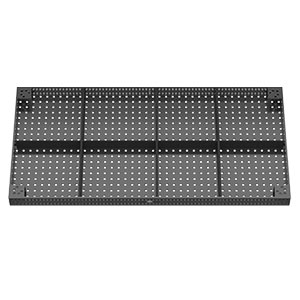

4 x 2 meter professional

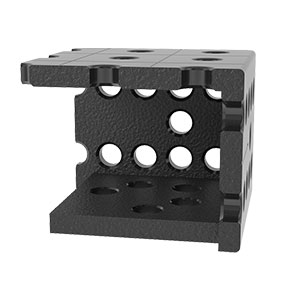

RIBBING

Multiple ribbing on the underside for maximum stability and precision.
