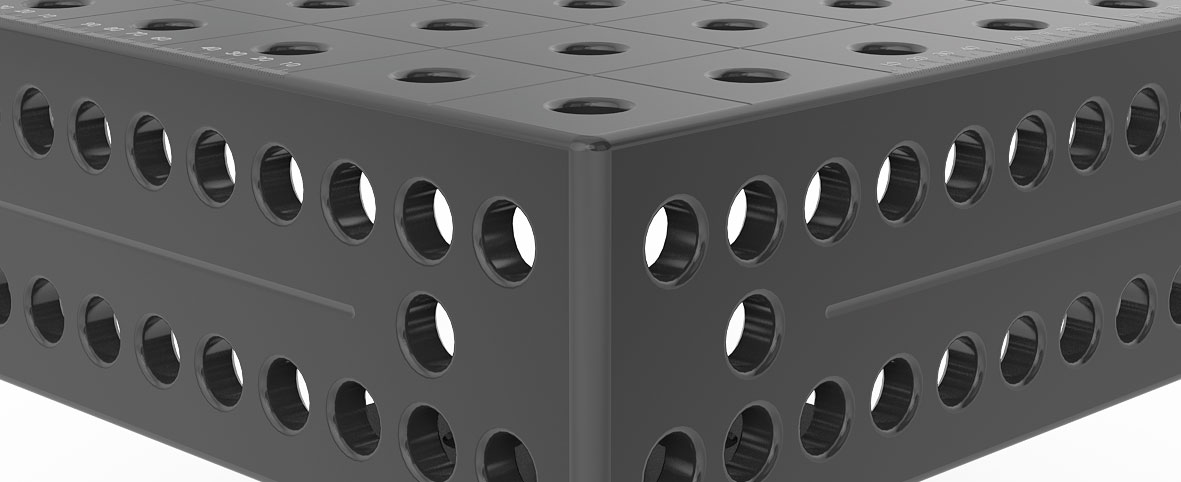

Welding tables come in a variety of sizes to suit your unique fabrication needs. The five face design of the table using 25 mm thick plates and reinforcements underneath creates an extremely rigid table surface. A plasma nitride finish comes standard on all tables for a work surface extremely resistant to wear, deformation, corrosion, and weld spatter.
1.0 x 0.5 meter Professional
1.2 x 0.8 meter Professional
1.2 x 1.2 meter Professional
2 x 1 meter Professional
2.4 x 1.2 meter Professional
1.5 x 1.0 meter Professional
3 x 1.5 meter Professional

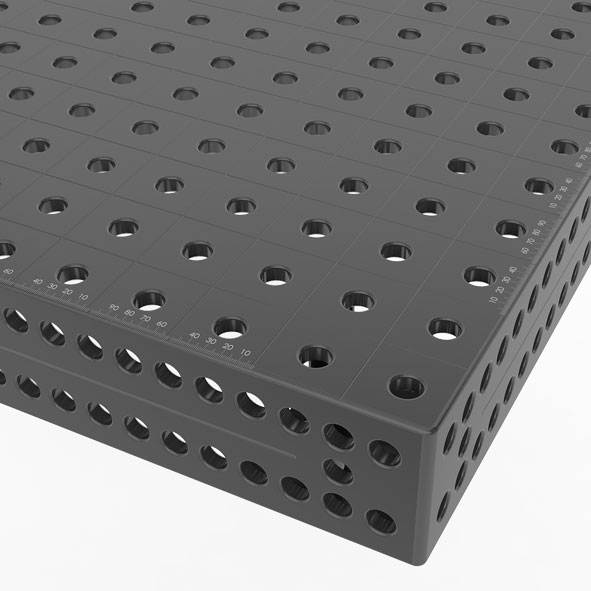

Work holes are 16 mm diameter and spaced 50 mm apart. The standard grid pattern simplifies the set-up of your equipment.
| Name (Tabletop only) | Item Number | Length (mm) | Width (mm) | Height (mm) | Weight (kg) | Length * (in) | Width * (in) | Height * (in) | Weight * (lb) |
|---|---|---|---|---|---|---|---|---|---|

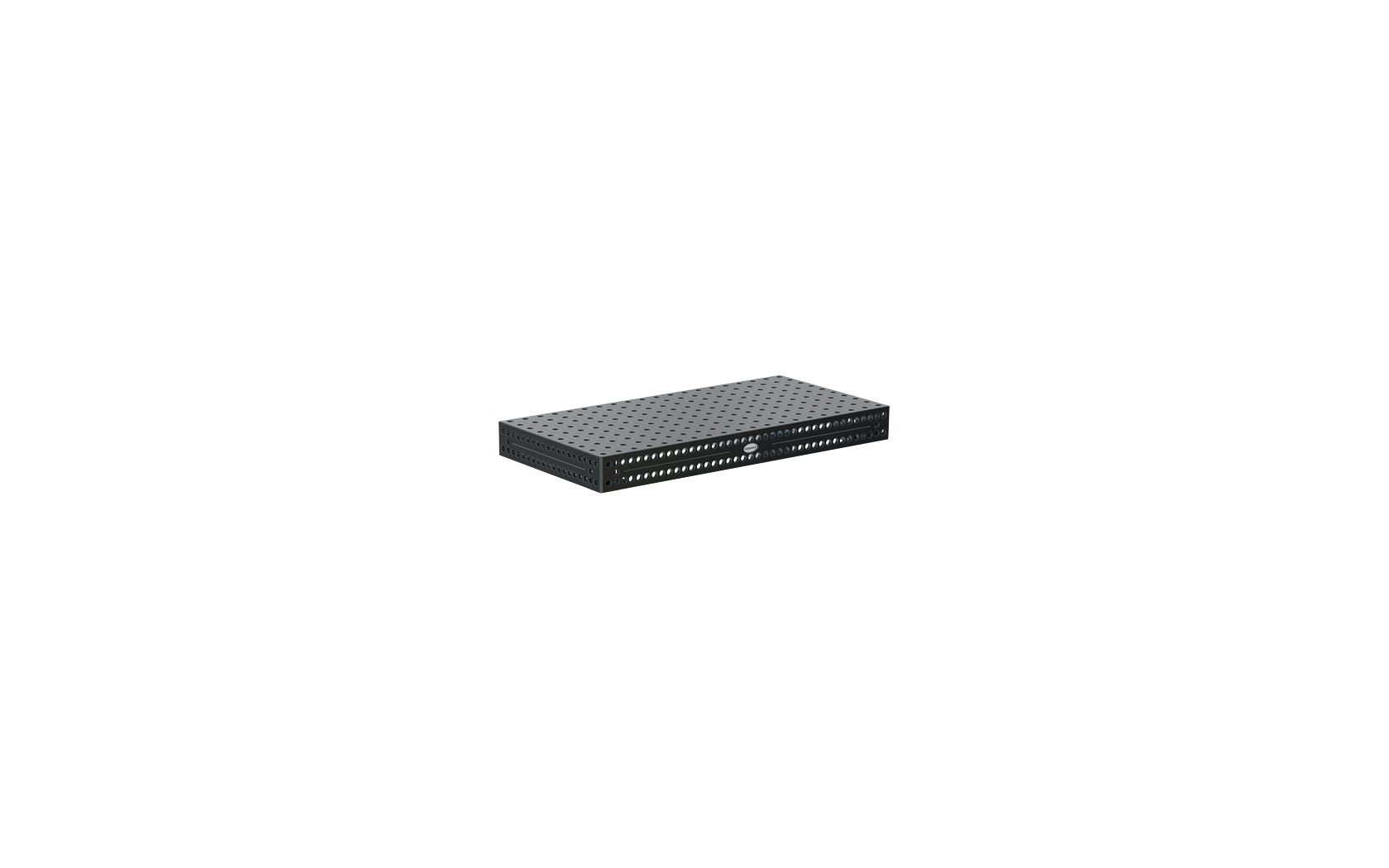

| S16- 1.0 x 0.5 Meter Professional Extreme 750 | S2-160005-X7 | 1000 | 500 | 100 | 104 | 39.4 | 19.7 | 3.9 | 229 |

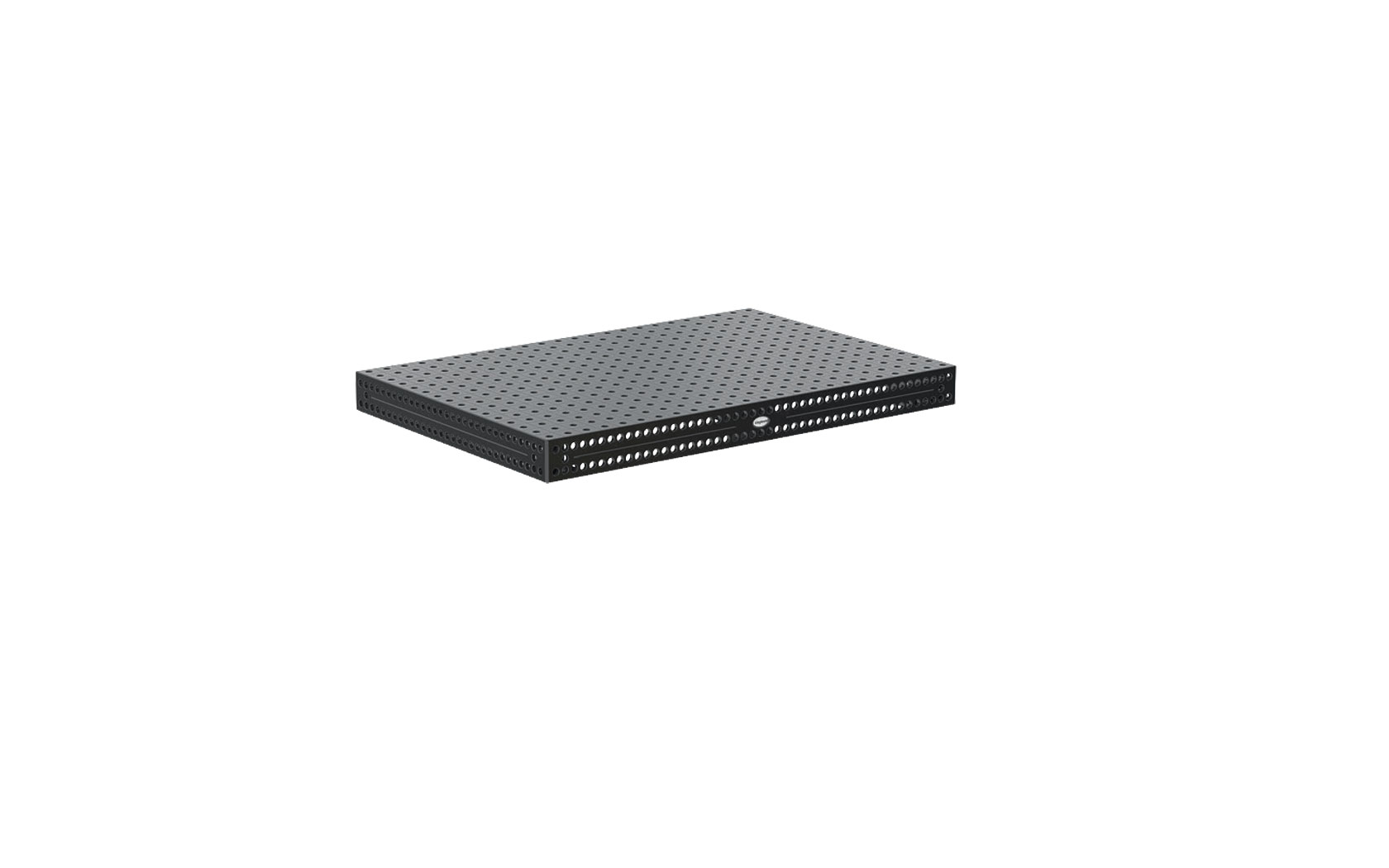

| S16- 1.2 x 0.8 Meter Professional Extreme 750 | S2-160025-X7 | 1200 | 800 | 100 | 171 | 47.2 | 31.5 | 3.9 | 376 |

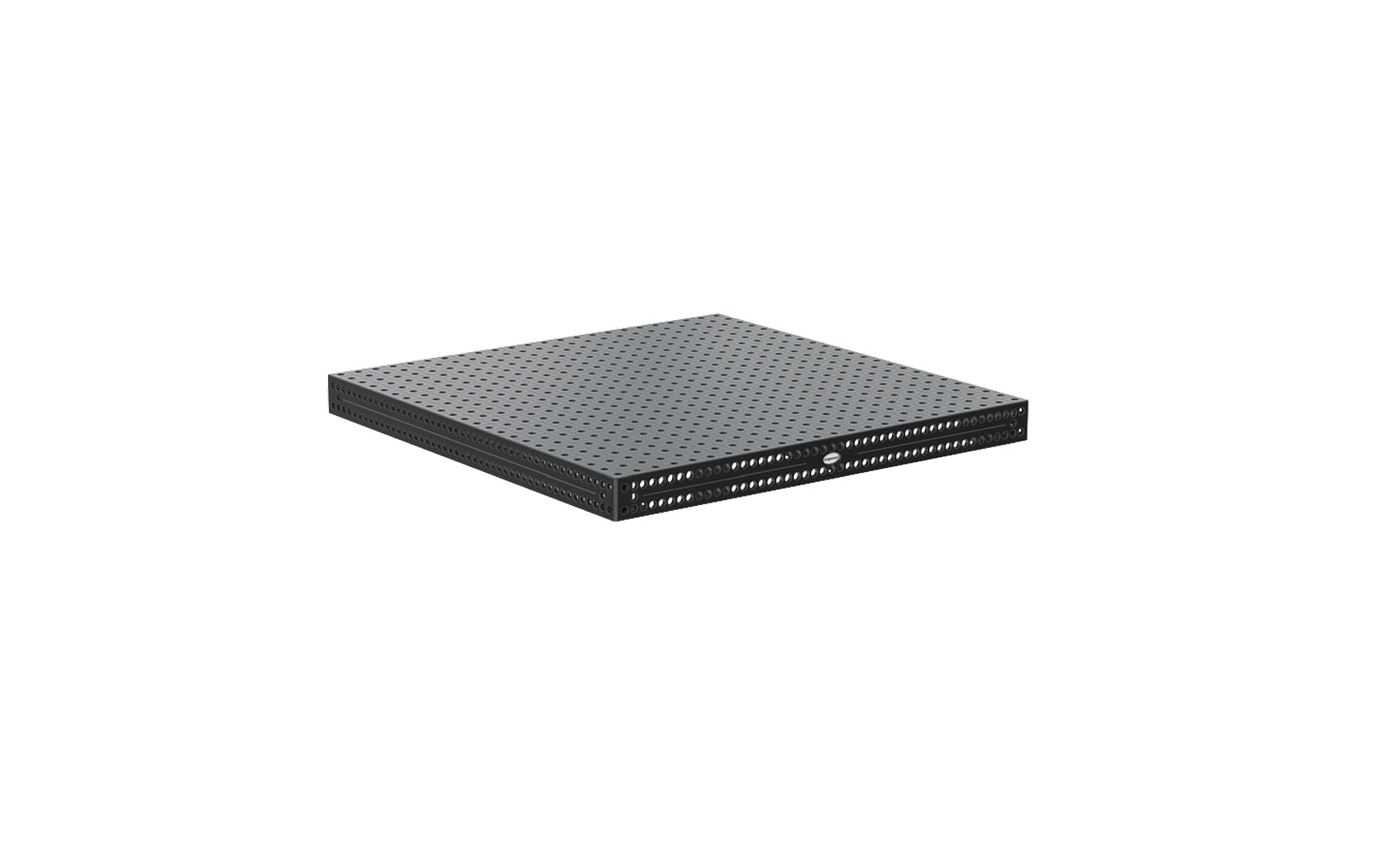

| S16- 1.2 x 1.2 Meter Professional Extreme 750 | S2-160015-X7 | 1200 | 1200 | 100 | 237 | 47.2 | 47.2 | 3.9 | 521 |

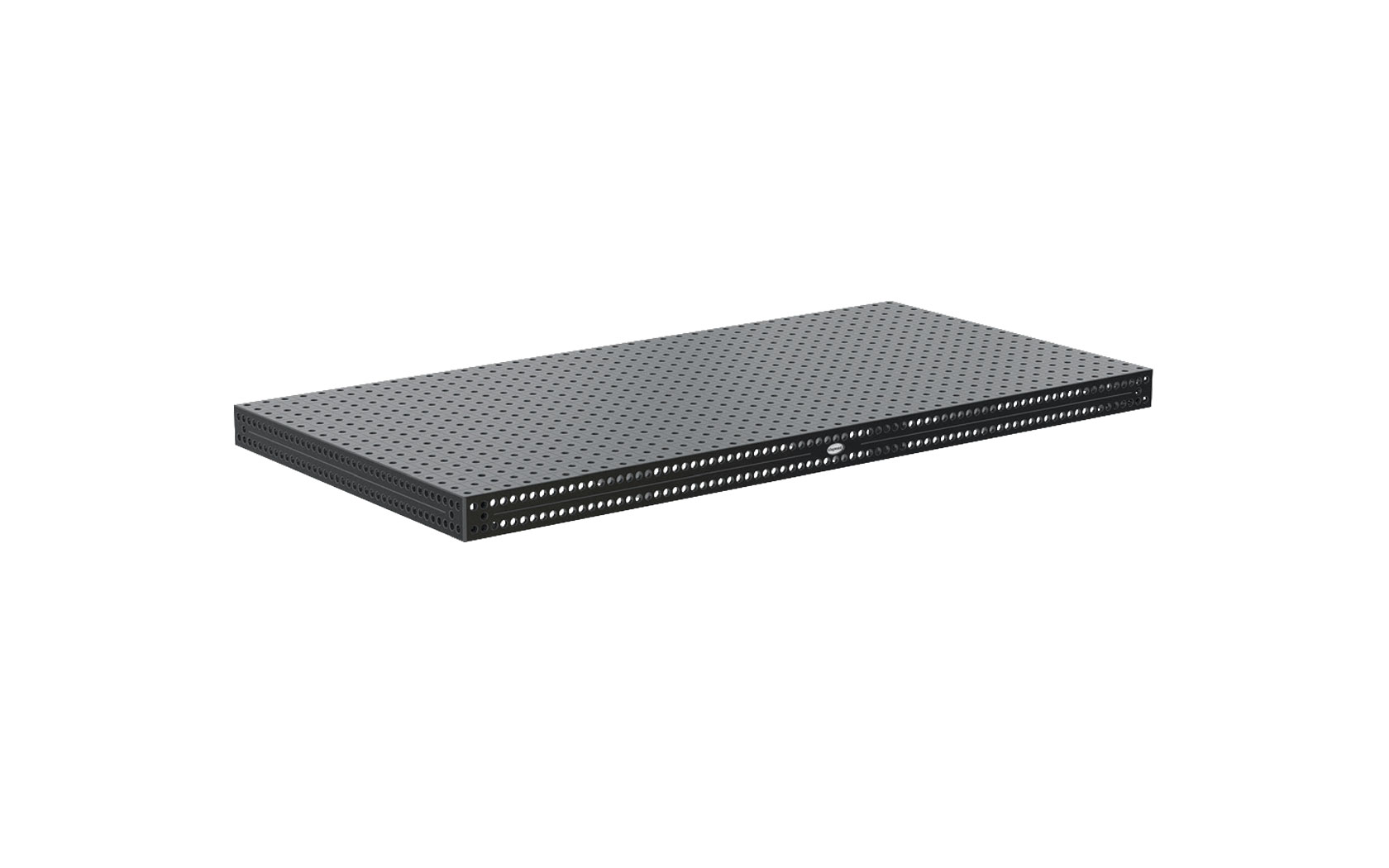

| S16- 2 x 1 Meter Professional Extreme 750 | S2-160020-X7 | 2000 | 1000 | 100 | 330 | 78.7 | 39.4 | 3.9 | 726 |

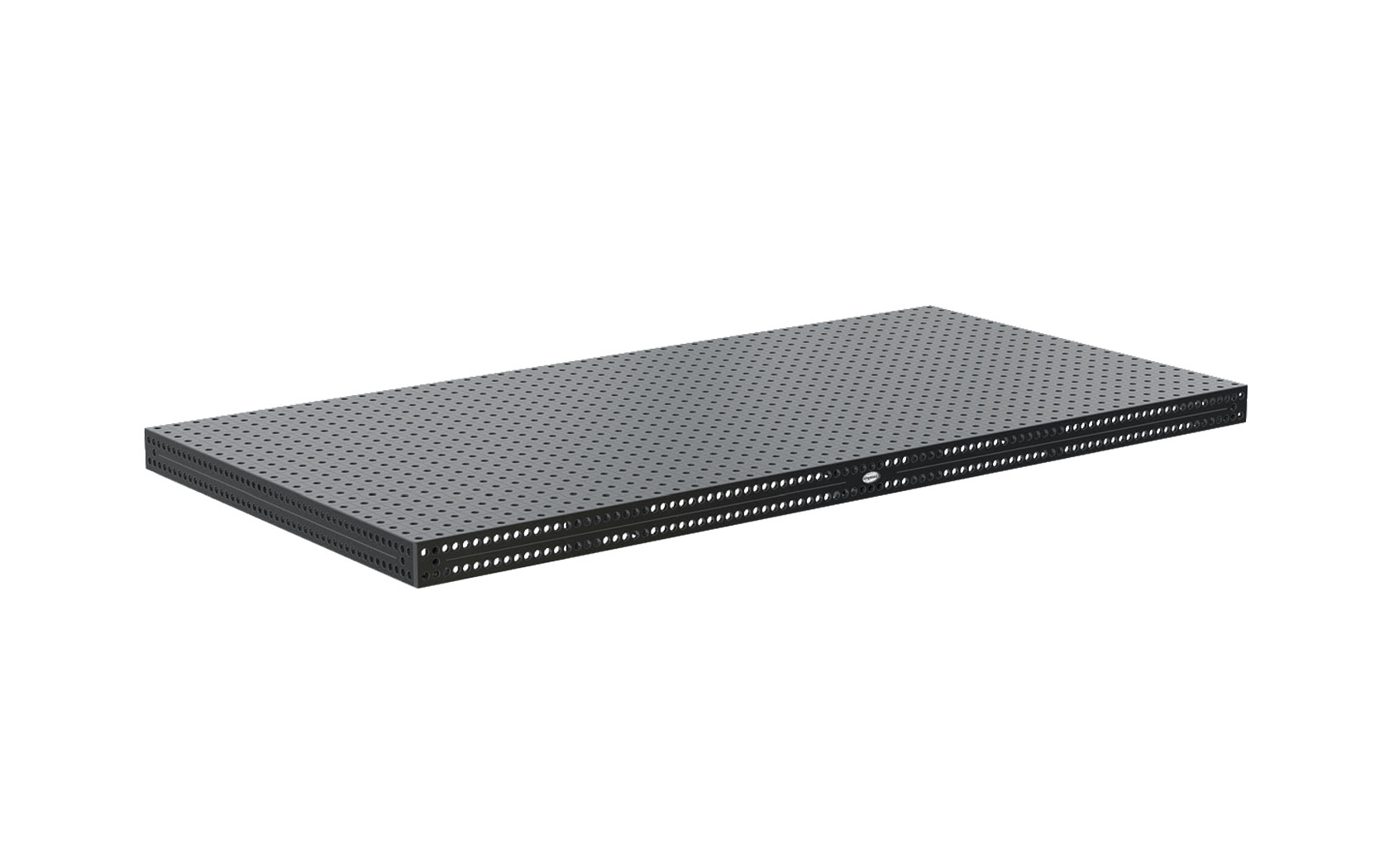

| S16- 2.4 x 1.2 Meter Professional Extreme 750 | S2-160030-X7 | 2400 | 1200 | 100 | 466 | 94.5 | 47.2 | 3.9 | 1025 |

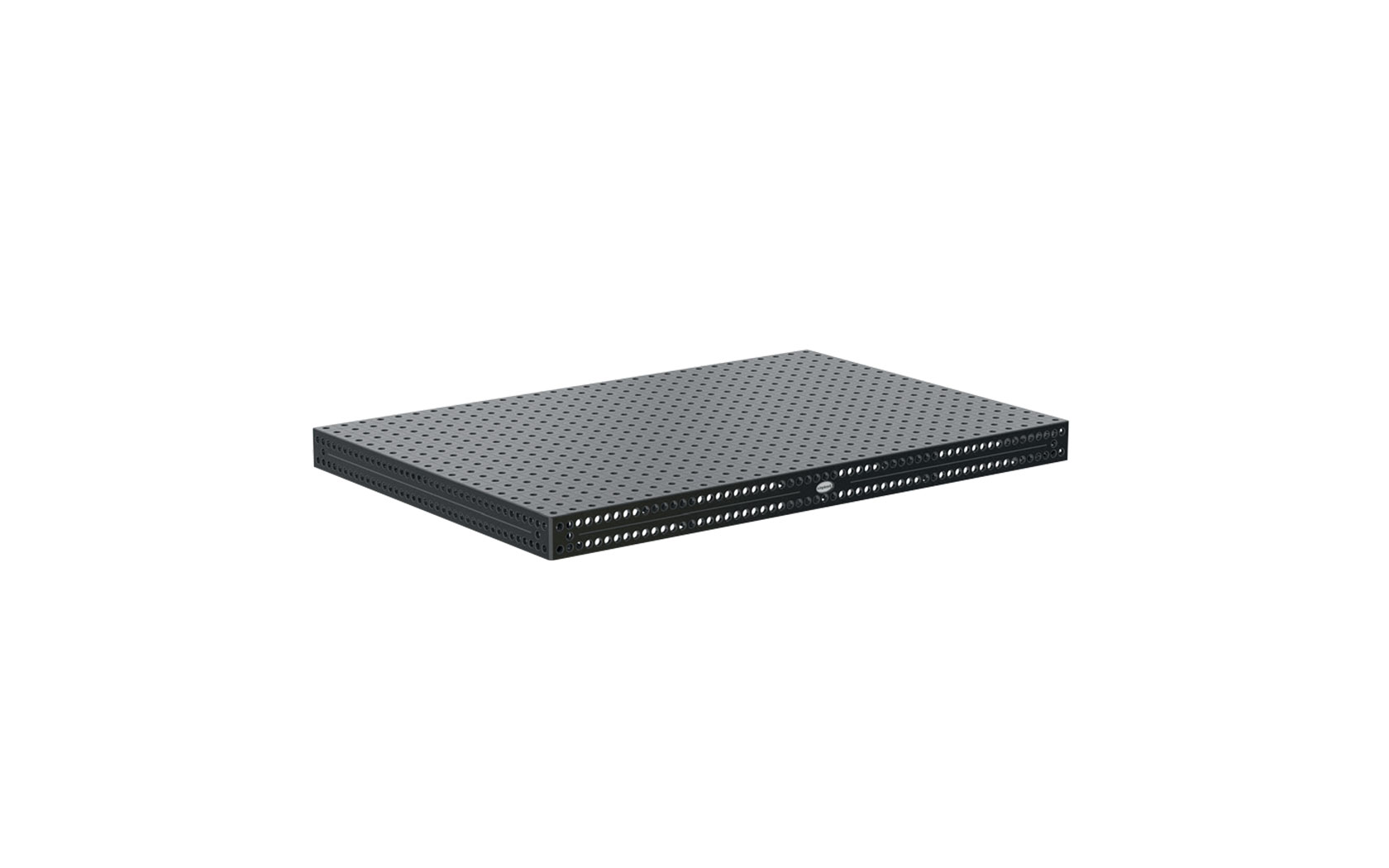

| S16- 1.5 x 1.0 Meter Professional Extreme 750 | S2-160035-X7 | 1500 | 1000 | 100 | 257 | 59.1 | 39.4 | 3.9 | 565 |
| S16- 3 x 1.5 Meter Professional Extreme 750 | S2-160040-X7 | 3000 | 1500 | 100 | 746 | 118.1 | 59.1 | 3.9 | 1641 |
