System 28

NEW! PROFESSIONAL EXTREME 750

All System 28 Professional Extreme tables now feature the latest upgrades in aesthetics, versatility, and durability. Our Double Hardened Tables are constructed from through hardened steel before undergoing a Plasma Nitride treatment to provide you with a table of superior quality and performance.

MATERIAL THICKNESS

MATERIAL THICKNESS

approx. 24.5 - 27 mm
VICKERS HARDNESS GRADE

Table top: Surface hardness: approx. 750
Table side: Surface hardness: approx. 550

* The four side faces are still constructed from our standard, high quality S355J2+N (St 52/3) Steel to provide the ideal balance of properties for performance, durability, and cost.

Table surface

TABLE SURFACE

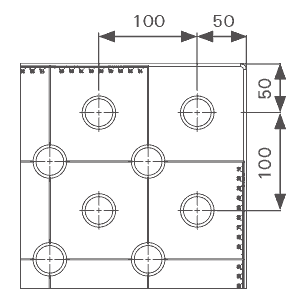

  • borehole spacing 100 mm (standard grid) with additional 100 mm grid offset by 50 mm in the x and y axis, aka diagonal grid
  • grid line spacing 100 mm
  • 0 - 100 mm repeating scale on table sides
TABLE SIDE PANEL

TABLE SIDE PANEL

  • 200 mm high
  • additional boreholes enable parallel clamping in a 50 mm wide by 100 mm high grid

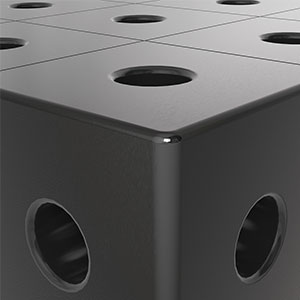

ELABORATE RADIUSES

ELABORATE RADIUSES

  • 3 mm radius of top table edge reduces damages to Siegmund accessories and customers components
  • 6 mm radius on edges reduces risk of injury
SYSTEM BOREHOLE

SYSTEM BOREHOLE

  • Ø 28.15 mm
  • radius R3 for boreholes on the table surface allow for faster insertion of bolts and accessories
  • large chamfer on table underside for maximum clamping force of bolts
4 x 2 meter professional

RIBBING

  • load capacity of over 10 metric tons
  • increased rib height
