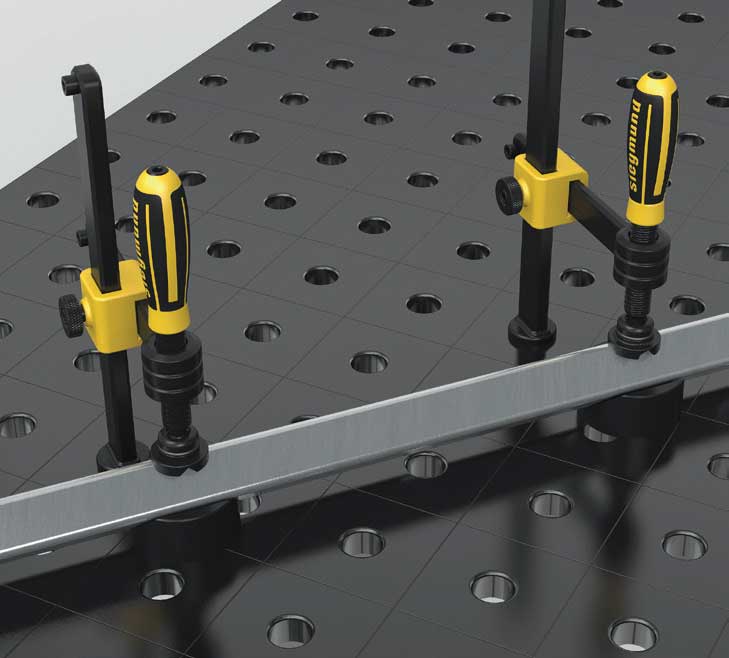

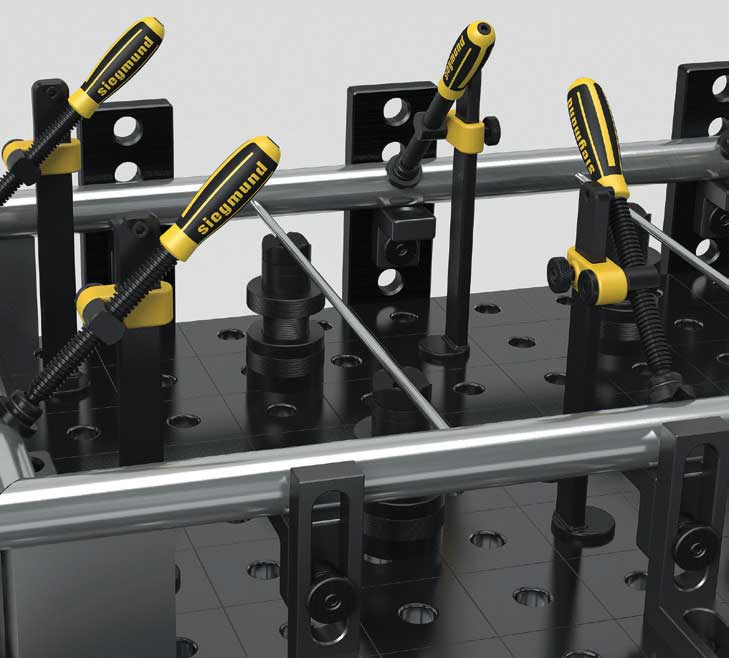

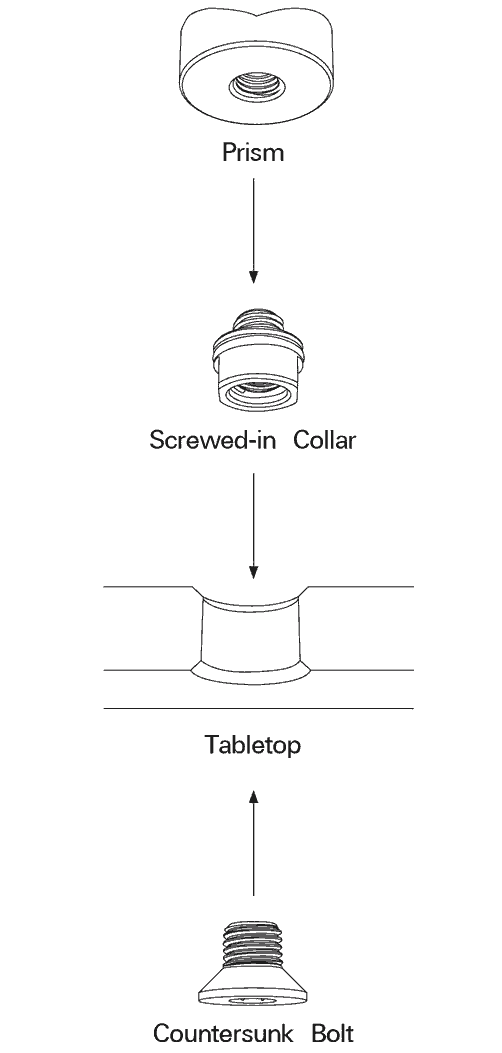

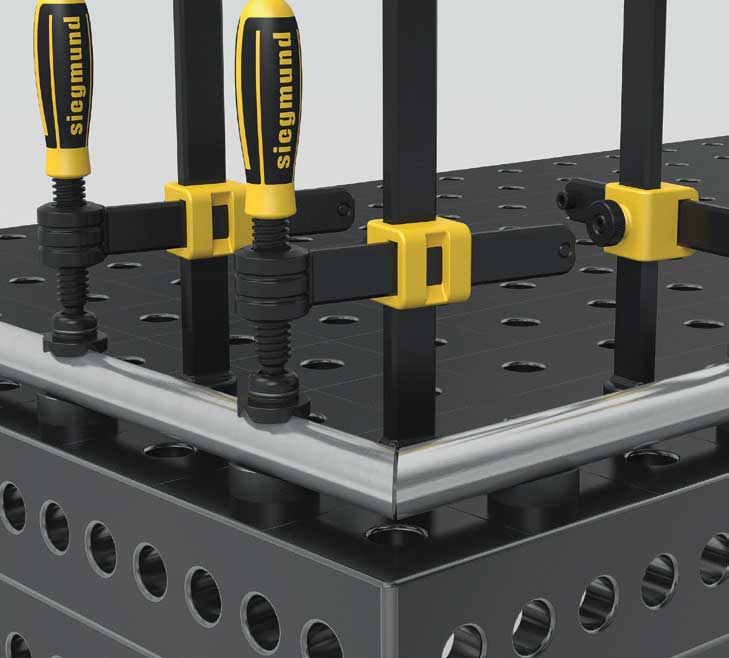

V-Prisms are used for holding round stock of different sizes. Included in the delivery of V-prisms are a screw-in collar (S2-280669) and countersunk bolt. This enables the V-prism to be used flat on the table or with system holes.

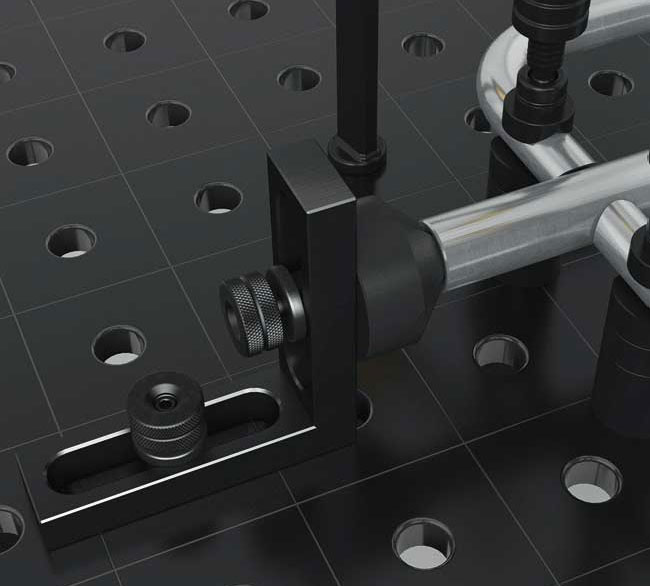

The clamping cone is clamped to 28 mm bore holes using fast clamping bolts.
S2-280648-1

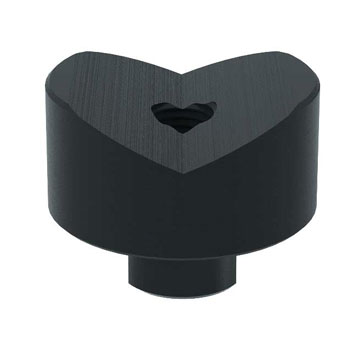

S2-280651-1

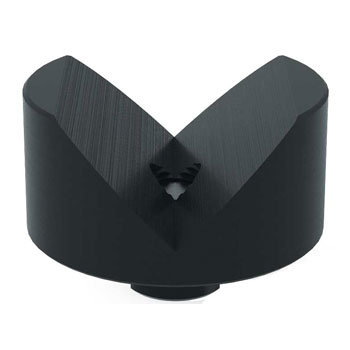

S2-280647-1

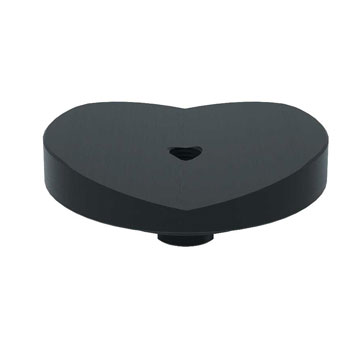

S2-280652-1

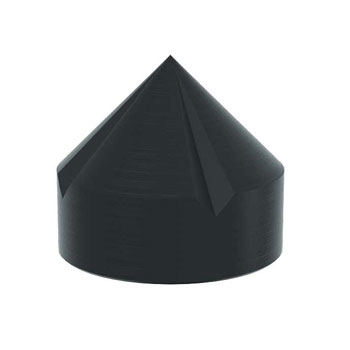

S2-280670
| Item Number | Name | Hole Mount | Height (mm) | Dia. (mm) | Prism Degree | Weight (kg) |
|---|---|---|---|---|---|---|
| S2-280648-1 | Prism Ø 50 135° with screwed-in collar | M16 | 20 | 50 | 135 | 0.2 |
| S2-280651-1 | Prism Ø 60 135° with screwed-in collar | M16 | 30 | 60 | 135 | 0.5 |
| S2-280647-1 | Prism Ø 80 90° with screwed-in collar | M16 | 40 | 80 | 90 | 1.0 |
| S2-280652-1 | Prism Ø 120 157° with screwed-in collar | M16 | 30 | 120 | 157 | 1.7 |
| S2-280670 | Clamping Cone | 28 mm | 70 | 80 | - | 1.4 |
