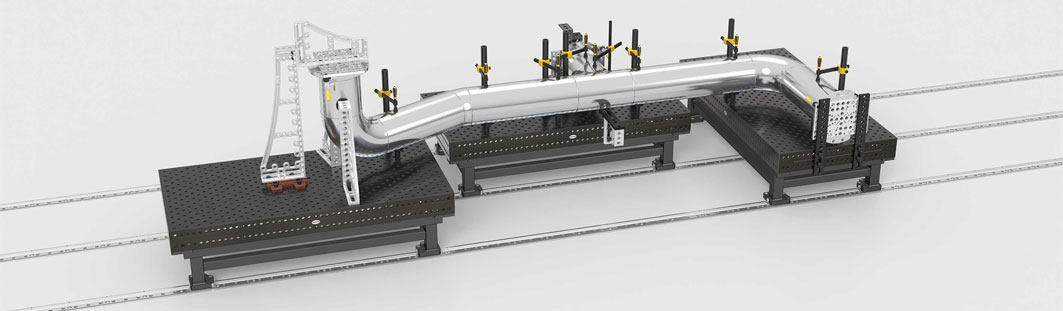

Clamping plates come in various sizes for ANSI / ASME and DIN sizes. Included with each clamping plate are a set of pins to hold different flange sizes in place, refer to specification table to see which pins are included.
S2-280250-P
Clamping Plate 150 lbs Nitrided with Fixing Bolt for flange US standard ANSI / ASME B 16.5 150 lbs from 1/2" to 8"
| Item Number | Length (mm) | Width (mm) | Thickness (mm) | Weight (kg) | Pins included w/ plate (2 x ea.) |
|---|---|---|---|---|---|
| S2-280250-P | 350 | 250 | 25 | 14 | S2-280255, S2-280257, S2-280256 |
Clamping Plate 300 lbs Nitrided with Fixing Bolt for flange US standard ANSI / ASME B 16.5 300 lbs from 1/2" to 8"
| Item Number | Length (mm) | Width (mm) | Thickness (mm) | Weight (kg) | Pins included w/ plate (2 x ea.) |
|---|---|---|---|---|---|
| S2-280251-P | 350 | 250 | 25 | 14 | S2-280255, S2-280259, S2-280256, S2-280258 |
S2-280251-P
S2-280252-P
Clamping Plate 400 - 600 lbs Nitrided with Fixing Bolt for flange US standard ANSI / ASME B 16.5 400 - 600 lbs from 1/2" to 6"
| Item Number | Length (mm) | Width (mm) | Thickness (mm) | Weight (kg) | Pins included w/ plate (2 x ea.) |
|---|---|---|---|---|---|
| S2-280252-P | 350 | 250 | 25 | 14 | S2-280255, S2-280256, S2-280257, S2-280258, S2-280259 |
S2-280255
S2-280256
S2-280257
S2-280258
S2-280259
| Item Number | Description | Length (mm) | Dia (mm) | Dia (in) | Weight (kg) |
|---|---|---|---|---|---|
| S2-280255 | Fixing Bolt Ø 15.5 | 39 | 15.5 | 0.610 | 0.03 |
| S2-280256 | Fixing Bolt Ø 18.9 | 41 | 18.9 | 0.744 | 0.05 |
| S2-280257 | Fixing Bolt Ø 22.2 | 45 | 22.2 | 0.874 | 0.10 |
| S2-280258 | Fixing Bolt Ø 25.2 | 50 | 25.2 | 0.992 | 0.14 |
| S2-280259 | Fixing Bolt Ø 28.2 | 50 | 28.2 | 1.110 | 0.16 |
S2-280220-P
S2-280221-P
| Item Number | Description | Length (mm) | Width (mm) | Thickness (mm) | Weight (kg) | Pins included w/ plate (2 x ea.) |
|---|---|---|---|---|---|---|
| S2-280220-P | Clamping Plate 550 for DIN Flanges Nitrided with Fixing Bolt For flanges DIN 2632 / 2633, nominal widths DN 15 - DN 400. For flanges DIN 2634 / 2635, nominal widths DN 50 - DN 300. |
550 | 350 | 25 | 30 | S2-280222, S2-280223, S2-280224, S2-280225, S2-280226, S2-280227 |
| S2-280221-P | Clamping Plate 350 for DIN Flanges Nitrided with Fixing Bolt For flanges DIN 2633, nominal width DN 15 - DN 200. |
350 | 250 | 25 | 14 | S2-280222, S2-280223, S2-280224 |
S2-280222
S2-280223
S2-280224
S2-280225
S2-280226
S2-280227
| Item Number | Description | Length (mm) | Dia (mm) | Weight (kg) |
|---|---|---|---|---|
| S2-280222 | Fixing Bolt Ø 13.8 for bore 8.1 | 39 | 13.8 | 0.03 |
| S2-280223 | Fixing Bolt Ø 17.8 for bore 10.1 | 41 | 17.8 | 0.05 |
| S2-280224 | Fixing Bolt Ø 21.8 for bore 16.1 | 47 | 21.8 | 0.10 |
| S2-280225 | Fixing Bolt Ø 25.8 for bore 16.1 | 50 | 25.8 | 0.14 |
| S2-280226 | Fixing Bolt Ø 29.8 for bore 16.1 | 55 | 29.8 | 0.20 |
| S2-280227 | Fixing Bolt Ø 32.8 for bore 16.1 | 60 | 32.8 | 0.27 |
