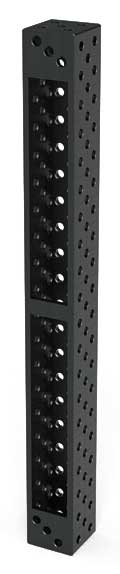

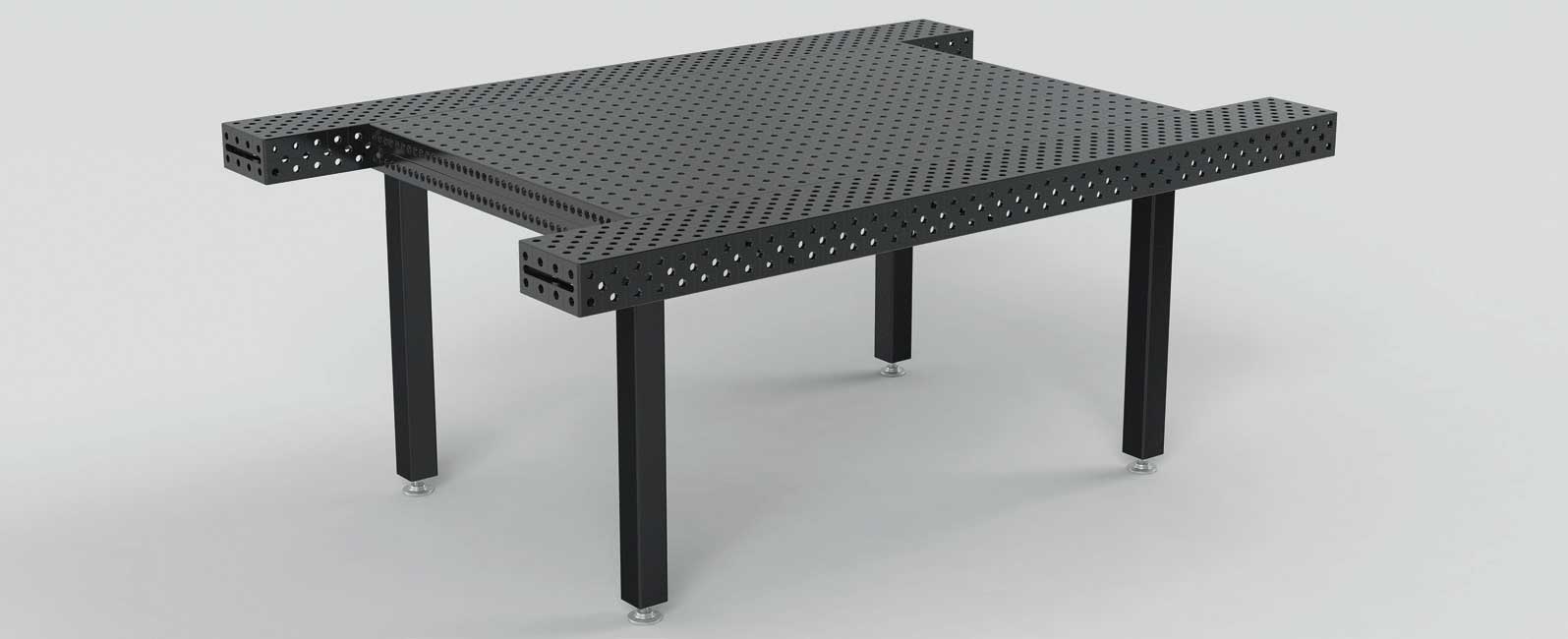

Riser blocks are used as table extensions and vertical setups, they are available in 100 x 100 mm and 200 x 100 mm profiles.
Riser blocks are plasma nitride hardened. Riser blocks over 500 mm in length come with leg mounting holes; all lengths longer than 500 mm should be supported by additional legs when used in a cantilever position.
SAFETY NOTE: Riser Blocks should only be joined to the table using connector bolts (Item S2-160560 or S2-2160550-1). Do not use fast clamping bolts or other available bolts to join.
| Item Number | Description | Length (mm) | Width (mm) | Height (mm) | Weight (kg) |
|---|---|---|---|---|---|

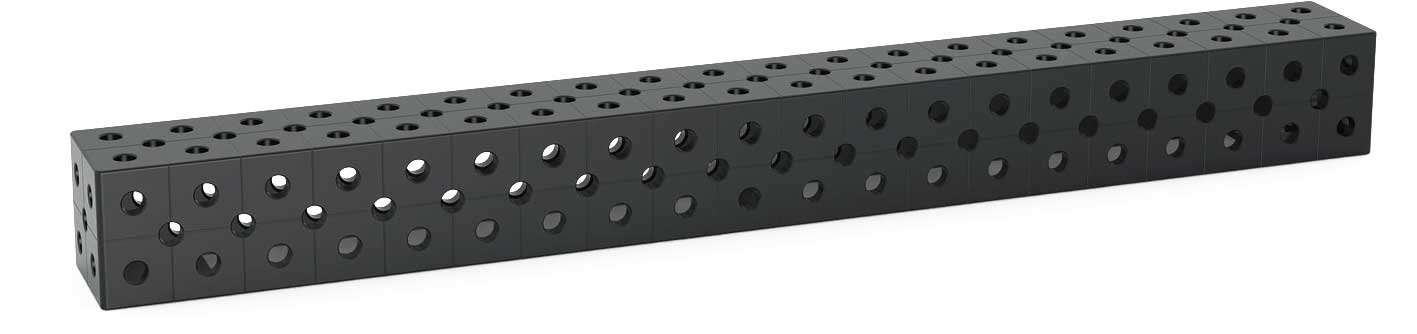

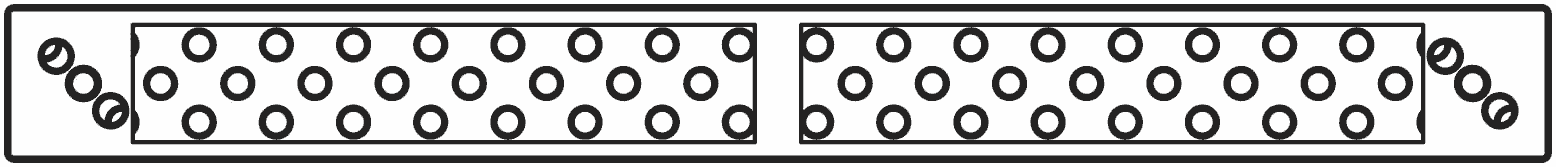

| S2-160396-P | Riser Block 100 x 100 x 100 Plasma nitrided | 100 | 100 | 100 | approx. 3 |
| S2-160360-P | Riser Block 500 x 100 x 100 Plasma nitrided | 500 | 100 | 100 | approx. 13 |
| S2-160370-P | Riser Block 1,000 x 100 x 100 Plasma nitrided | 1000 | 100 | 100 | approx. 25 |
| Item Number | Description | Length (mm) | Width (mm) | Height (mm) | Weight (kg) |
|---|---|---|---|---|---|

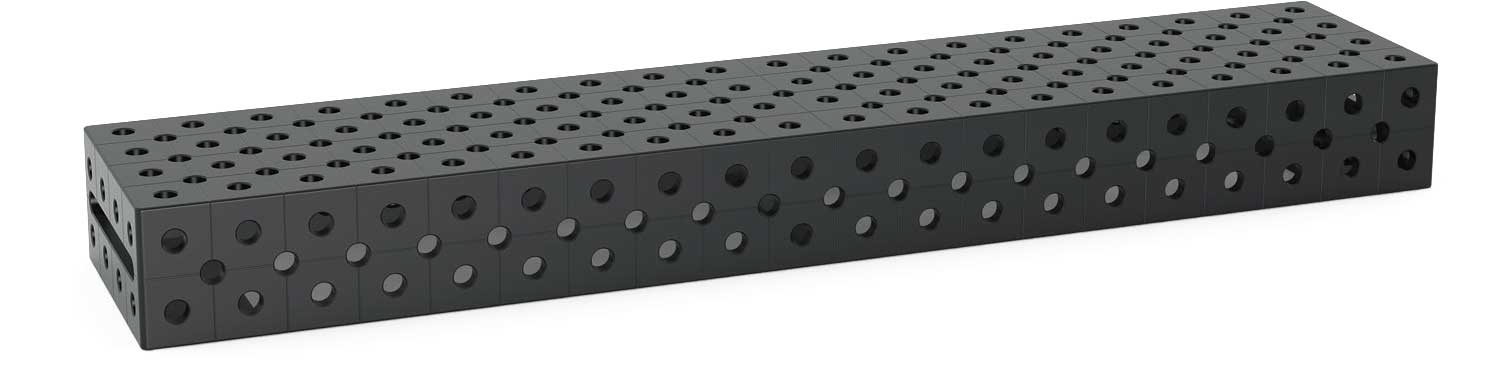

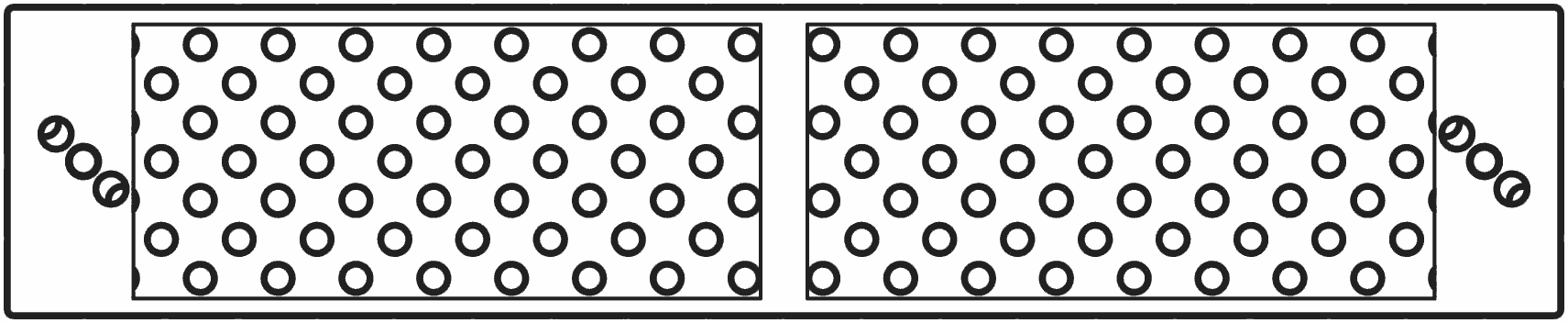

| S2-160396-1-P | Riser Block 100 x 200 x 100 Plasma nitrided | 100 | 200 | 100 | approx. 6 |
| S2-160360-1-P | Riser Block 500 x 200 x 100 Plasma nitrided | 500 | 200 | 100 | approx. 17 |
| S2-160370-1-P | Riser Block 1,000 x 200 x 100 Plasma nitrided |
1000 | 200 | 100 | approx. 35 |
| S2-160380-1-P | Riser Block 1,500 x 200 x 100 Plasma nitrided | 1500 | 200 | 100 | approx. 50 |
| S2-160390-1-P | Riser Block 2,000 x 200 x 100 Plasma nitrided |
2000 | 200 | 100 | approx. 66 |
