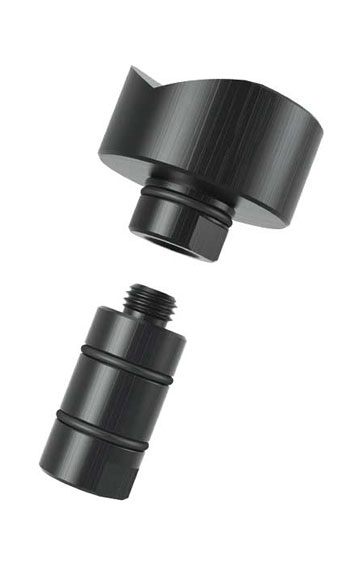

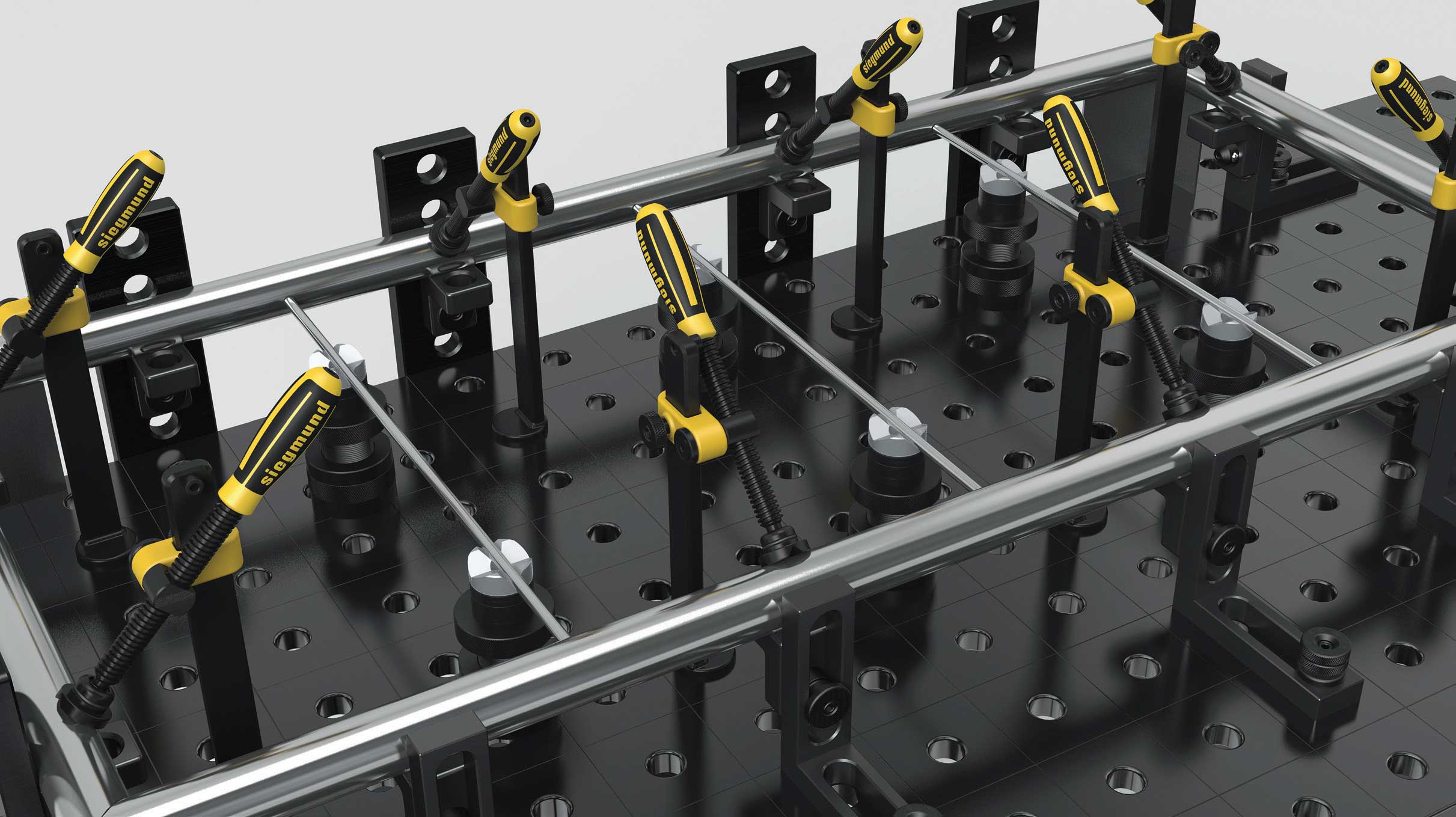

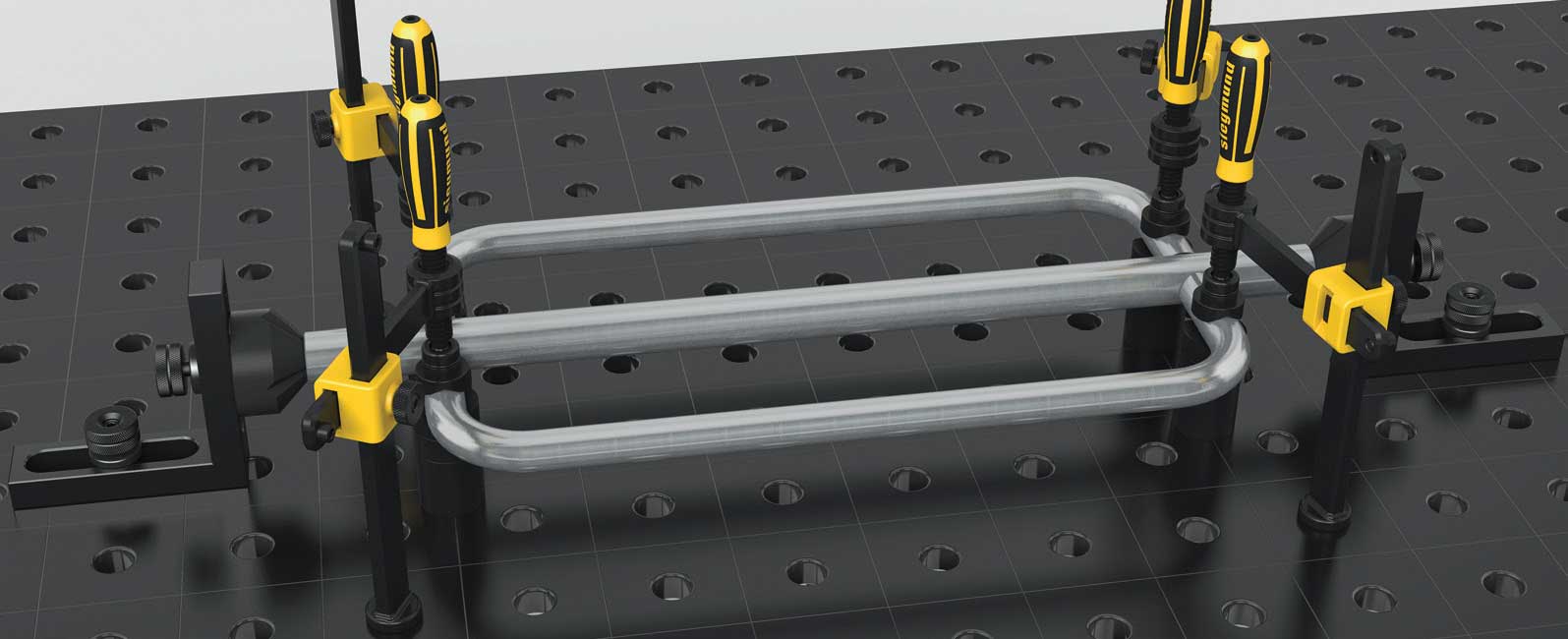

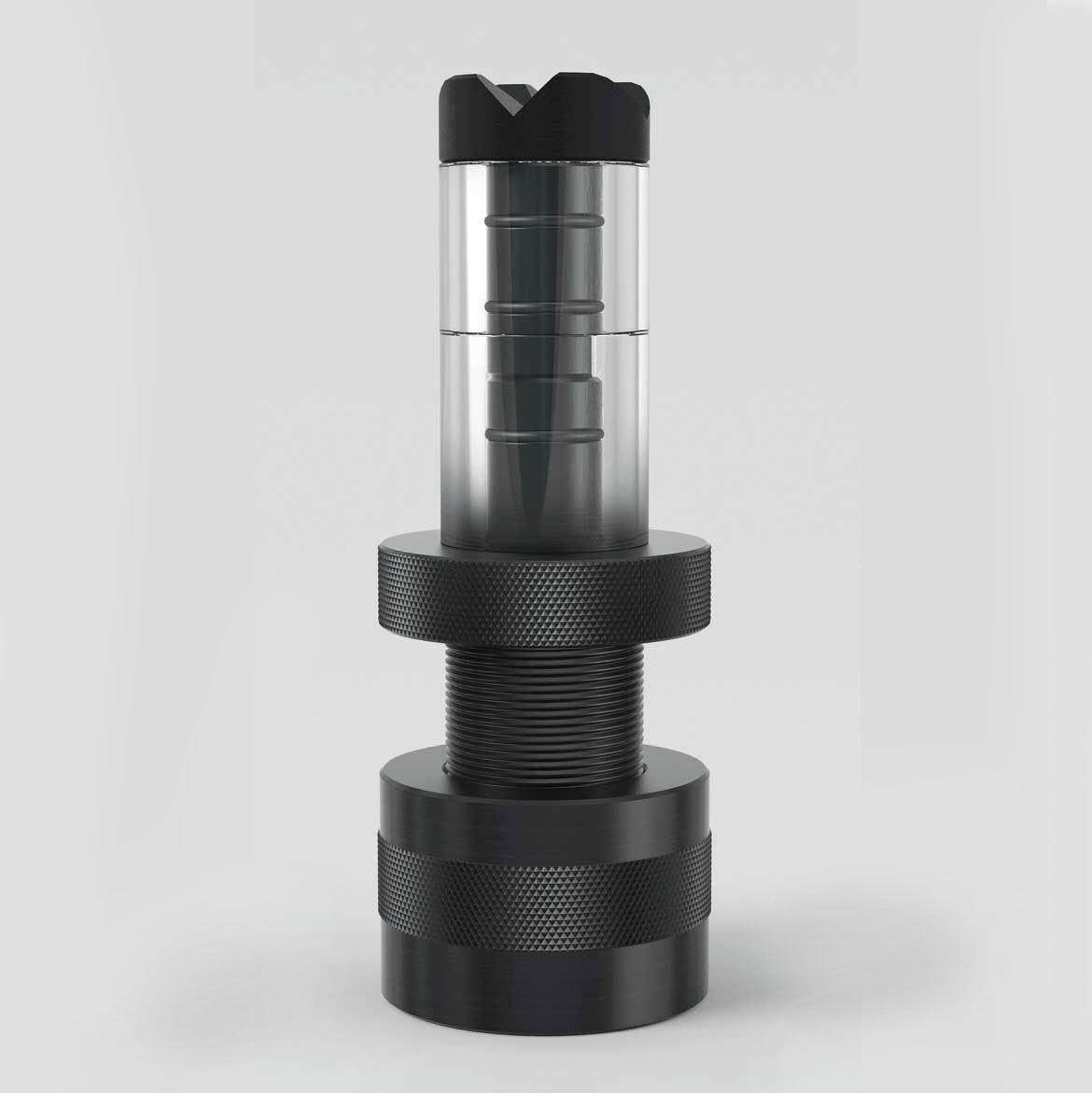

Combine the Screw Support with Shim Sets and Prism Extensions to achieve infinitely variable height adjustment.

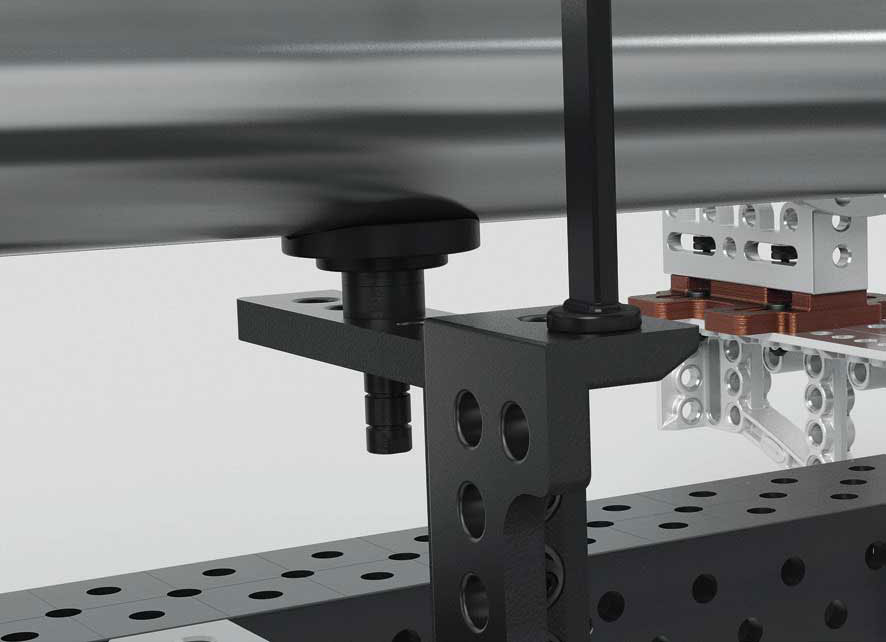

The 11-pc Shim Set can be combined with prism extensions to create offsets in your fixtures. Note the shim set storage tube does not act as a prism extension.
S2-280822
S2-280821
S2-280649
S2-280649-1
S2-280649-2
S2-280669
| Item Number | Name | Height (mm) | Dia. (mm) | Weight (kg) |
|---|---|---|---|---|

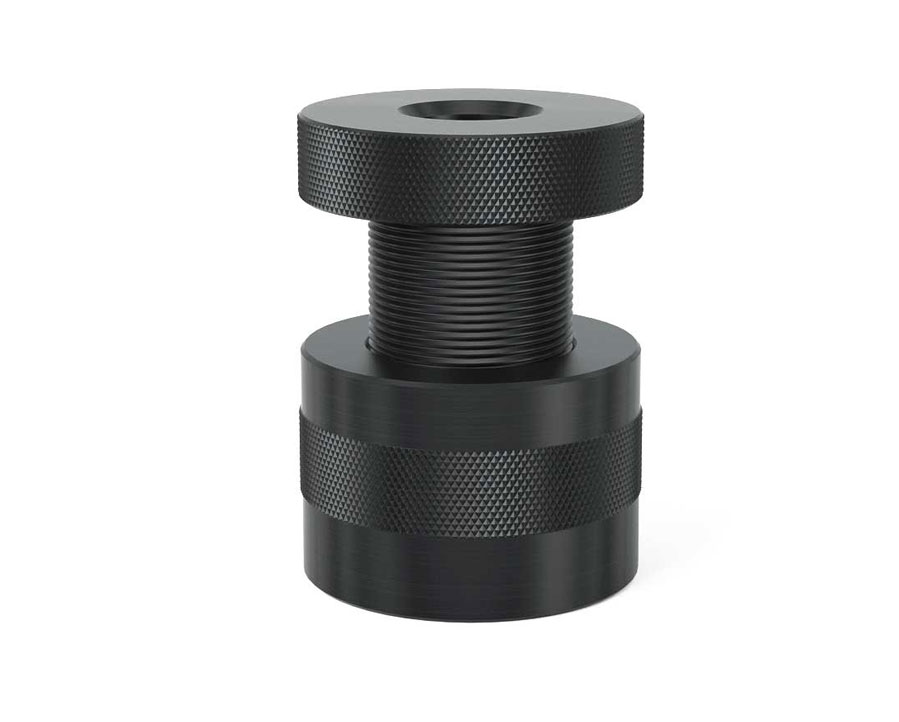

| S2-280822 | Screw Support Ø 80 | 75 - 110 | 80 | 2.30 |

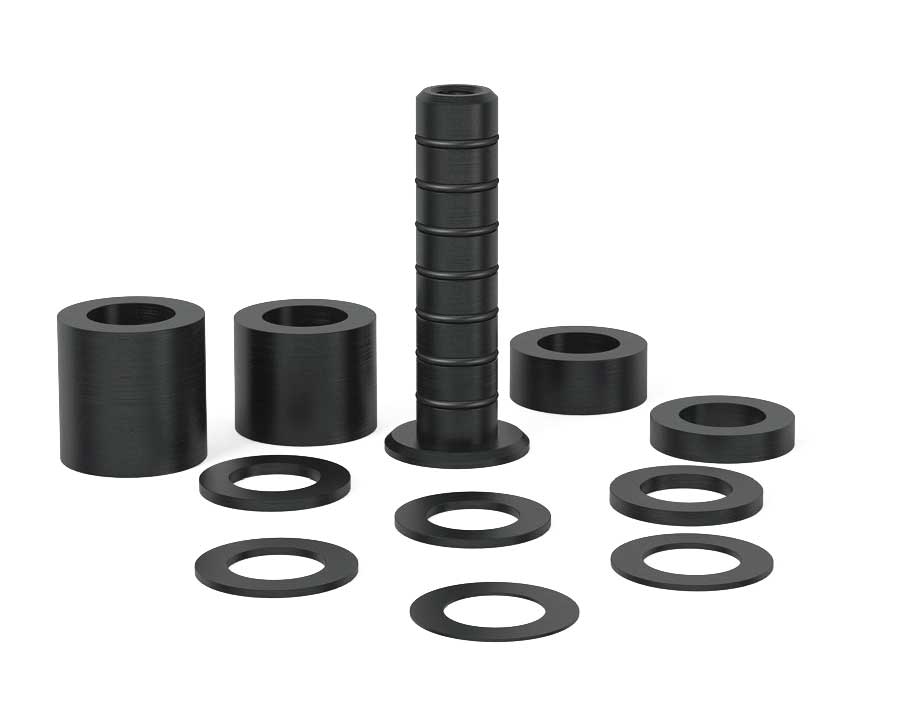

| S2-280821 | Set of Shim Supports 11-piece set Disc thickness: 1 / 2 / 3 / 4 / 5 mm 10 / 20 / 40 / 50 mm 1/10 inch disc (2.54 mm) + storage holder |
125 | 50 | 1.95 |

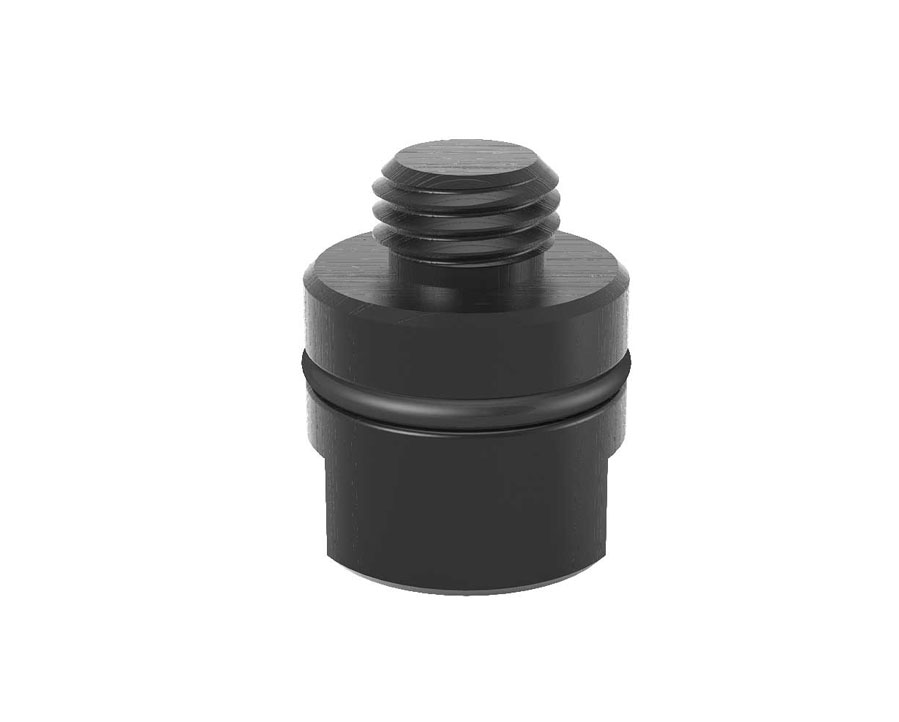

| S2-280649 | Prism Extension 25 | 25 | 28 | 0.11 |

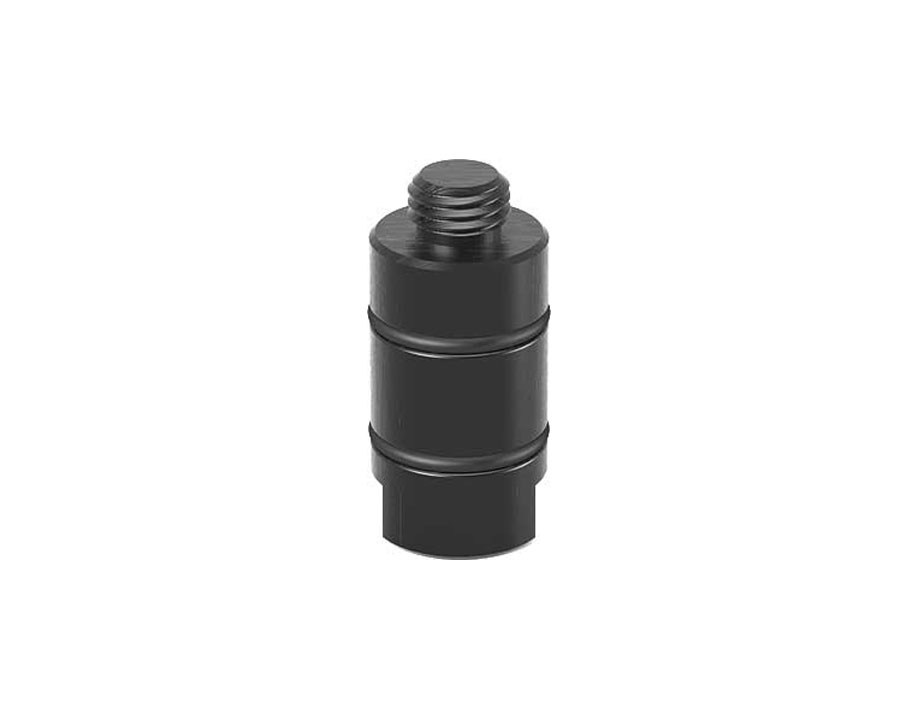

| S2-280649-1 | Prism Extension 50 | 50 | 28 | 0.22 |
| S2-280649-2 | Prism Extension 100 | 100 | 28 | 0.45 |

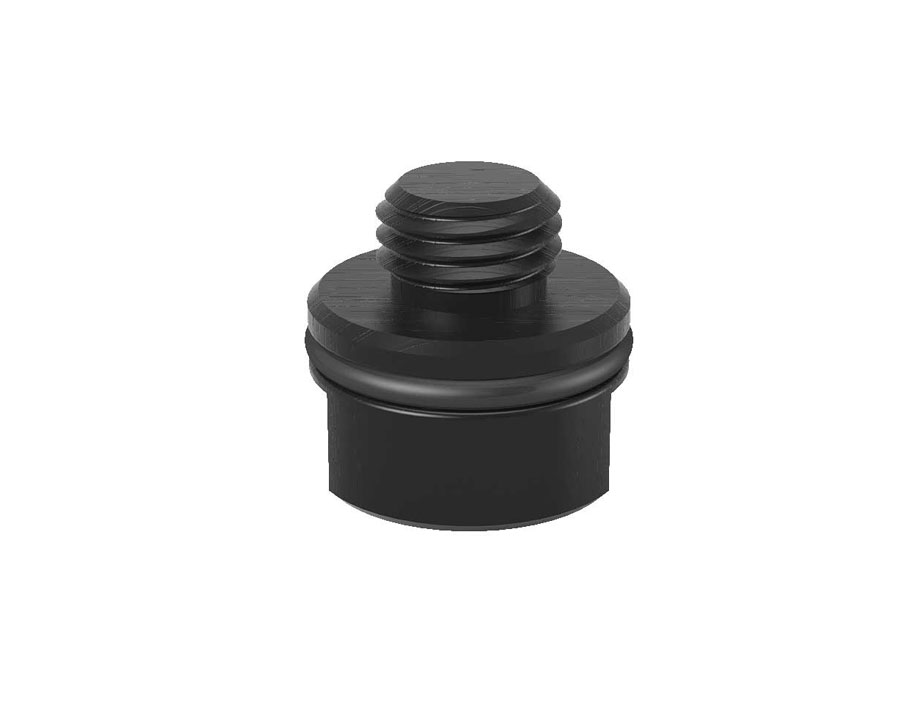

| S2-280669 | Prism Collar Screw with countersunk bolt | 27 | 28 | 0.07 |
