Extension Blocks

Riser Blocks are ideally suited as table extensions or for joining multiple tables together for long projects. Riser blocks are plasma nitride hardened. Riser blocks 200 mm and 500 mm in length do not have leg mounting holes.

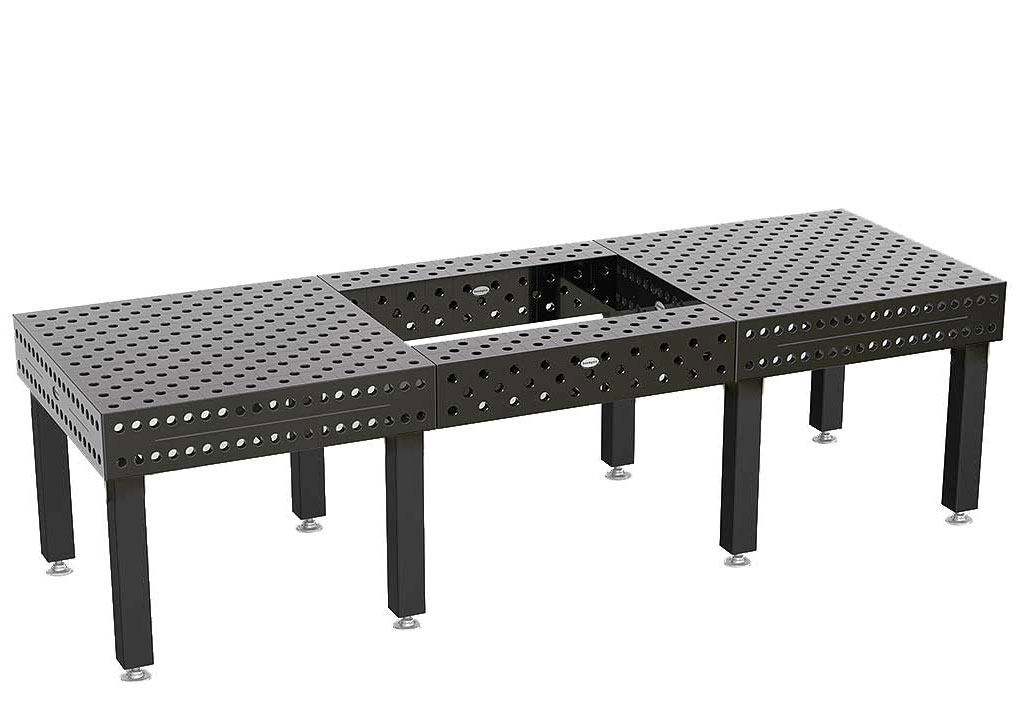

extension block application

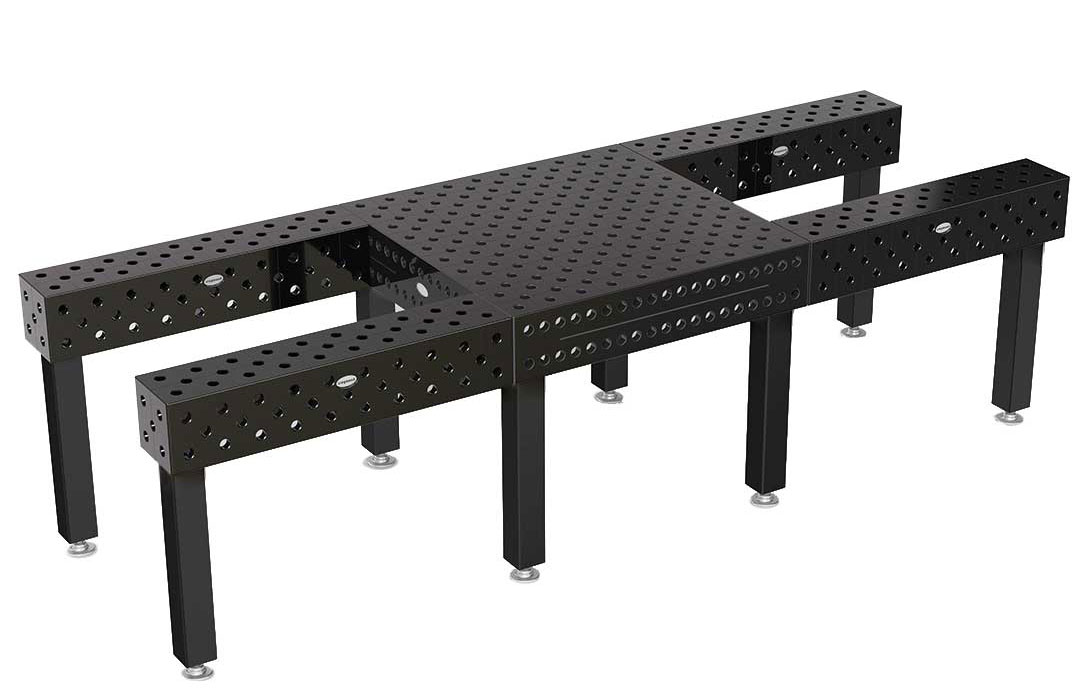

extension block application

Riser blocks 1,000 mm and longer in length have leg mounting holes, and all blocks over 500 mm in length should be supported by legs when used as a table extension.

SAFETY NOTE: Riser Blocks should only be joined to the table using connector bolts (Item S2-280560 or S2-280550-1). Do not use fast clamping bolts or other available bolts to join.

Custom Riser Blocks can be ordered with profiles of 200 x 200 mm, 400 x 200 mm, and 400 x 400 mm (width x height) in lengths up to 4,000 mm.

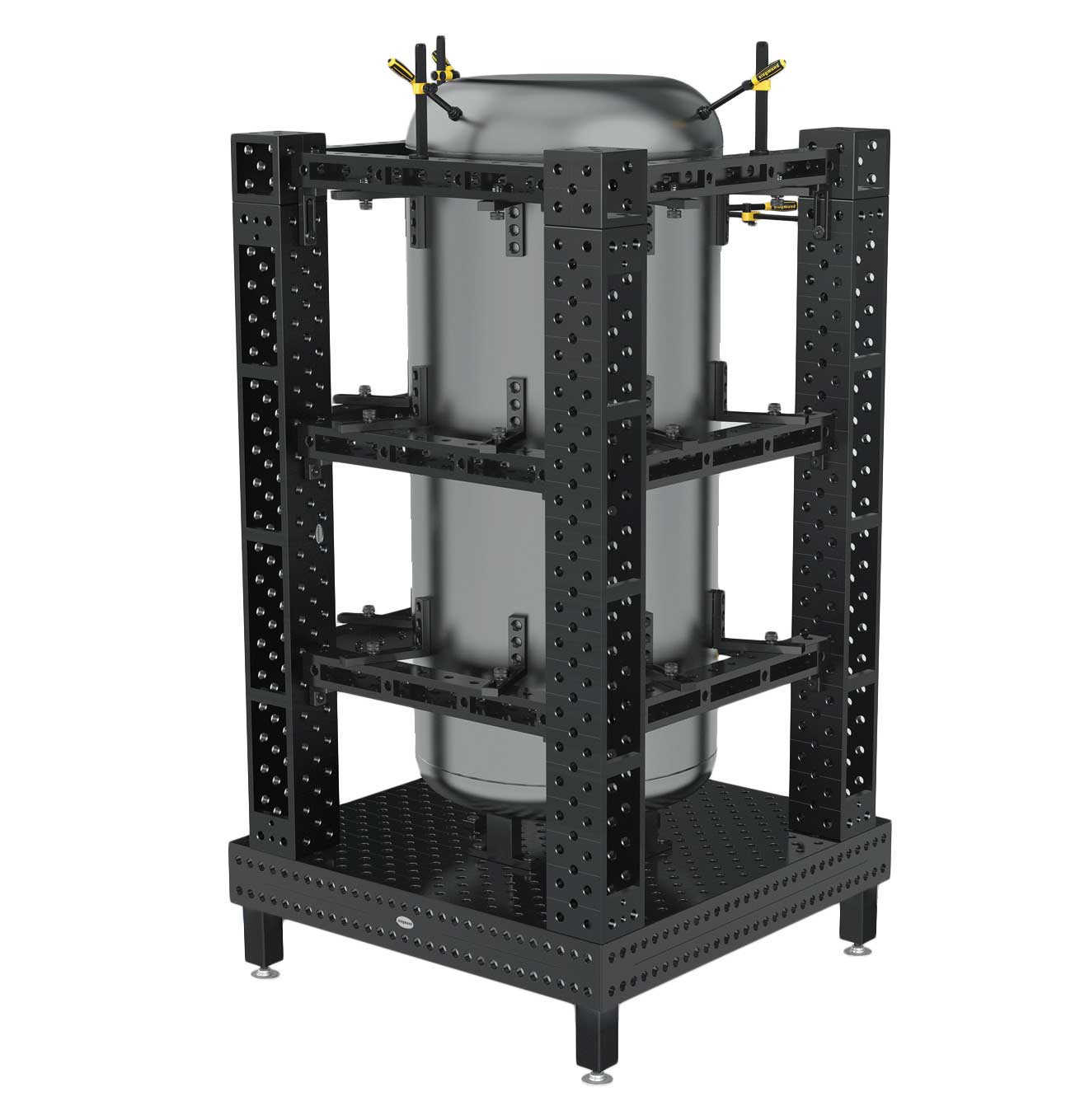

extension block application
extension block

S2-280370-P

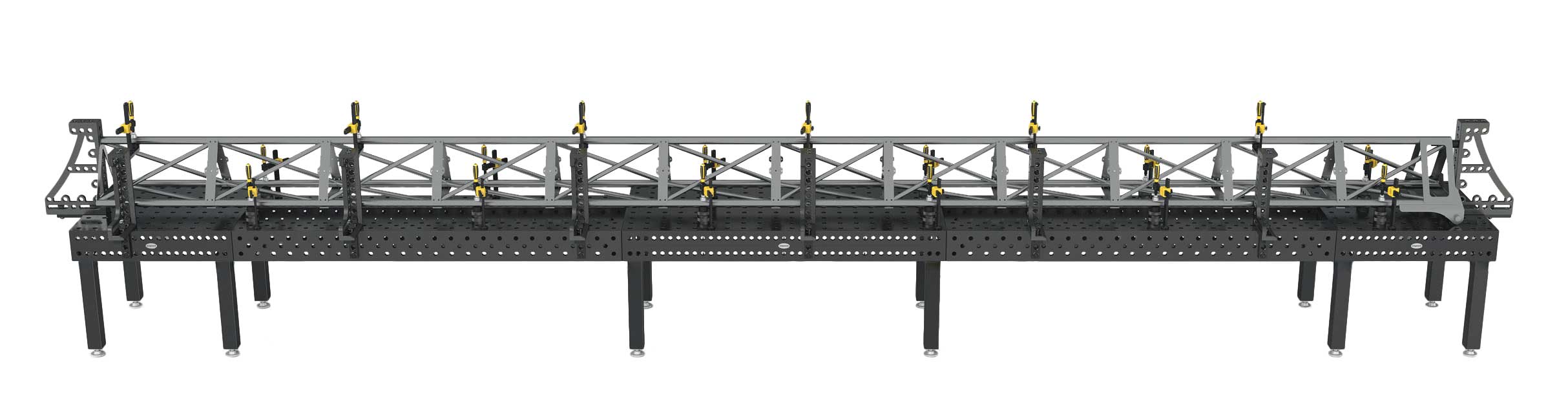

Extension Block Application
extension block
Item Number Description Length (mm) Width (mm) Height (mm) Weight (kg)
S2-280396-1-P Riser Block 200 x 200 x 200 200 200 200 32
S2-280360-P Riser Block 500 x 200 x 200 500 200 200 68
S2-280370-P Riser Block 1000 x 200 x 200 1000 200 200 130
S2-280380-P Riser Block 1500 x 200 x 200 1500 200 200 190
S2-280390-P Riser Block 2000 x 200 x 200 2000 200 200 245
S2-280391-P Riser Block 2400 x 200 x 200 2400 200 200 290
S2-280392-P Riser Block 3000 x 200 x 200 3000 200 200 365
