S2-160190

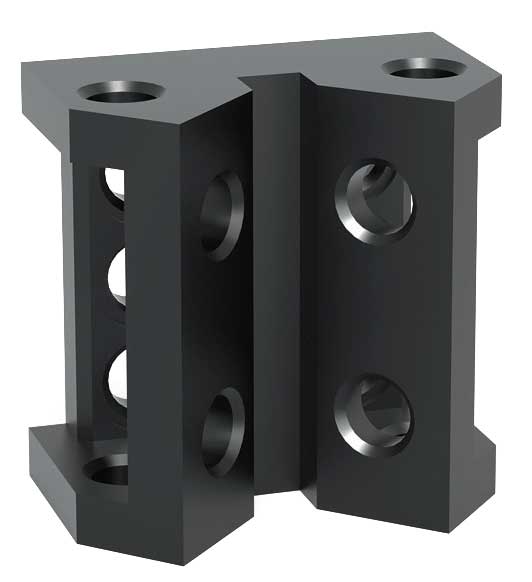

The corner square is used to mount clamping squares or U-shapes at table corners to extend the work surface.

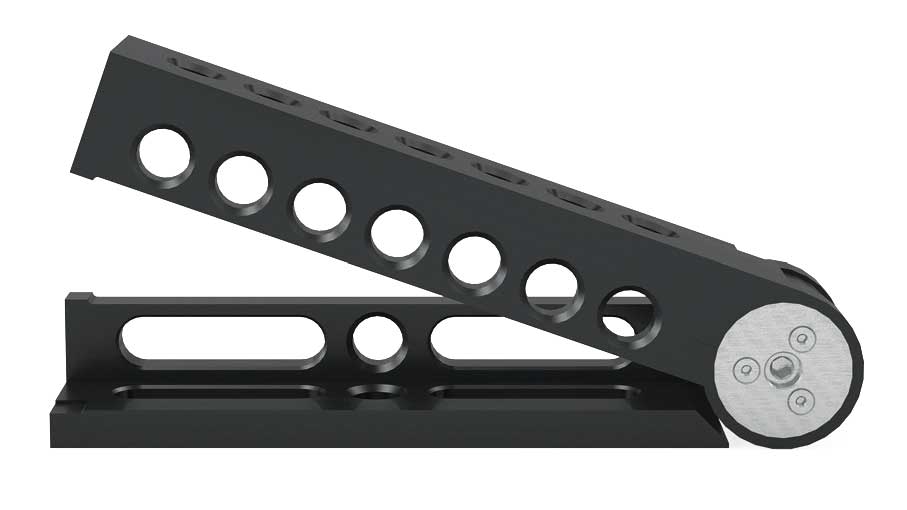

Load-Bearing Adjustable Angle Protractor is weight bearing due to a hydro mechanical mechanism and has a built in angle guide.
S2-160171
| Item Number | Name | Length (mm) | Width (mm) | Height (mm) | Weight (kg) |
|---|---|---|---|---|---|
| S2-160190 | Corner Connection, Cast Iron | 100 | 65 | 100 | 1.7 |
| S2-160171 | Universal Angle Hydromechanical Clamping |
250 | - | - | 2.8 |
S2-160300
S2-160301
The support and clamping frame serves as a connection for different elements. Bore holes with slots provide numerous fixture possibilities.
| Item Number | Name | Length (mm) | Width (mm) | Height (mm) | Weight (kg) |
|---|---|---|---|---|---|

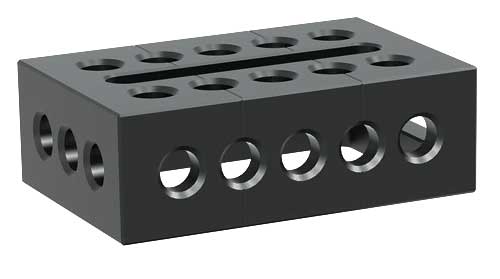

| S2-160300 | Support and Clamping Frame, small - stop on right |
100 | 50 | 150 | 2.1 |

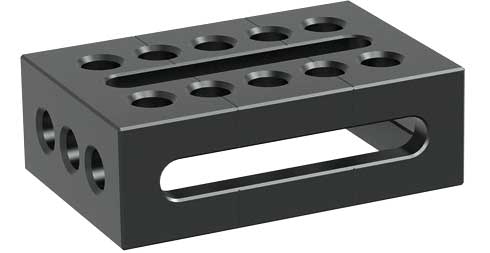

| S2-160301 | Support and Clamping Frame, small - stop on left |
100 | 50 | 150 | 2.1 |
S2-160280-P
S2-160290-P

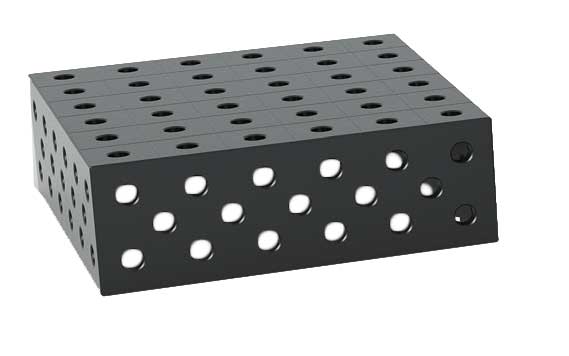

Clamping blocks can be used to join two tables together or as vertical extensions. Clamping blocks should be joined with Connecting Bolts (S2-160560).
| Item Number | Name | Length (mm) | Width (mm) | Height (mm) | Thickness (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| S2-160280-P | Clamping Block - five-sided - Plasma nitrided |
300 | 300 | 100 | 12 | approx. 16 |

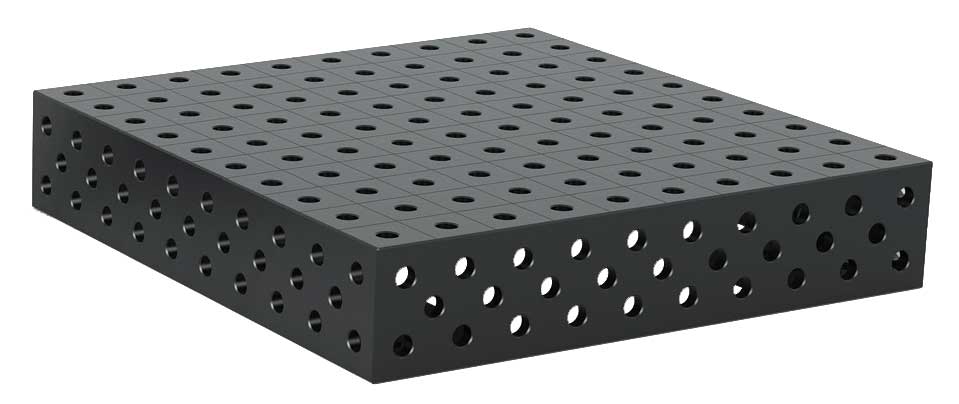

| S2-160290-P | Clamping Block - five-sided - Plasma nitrided |
500 | 500 | 100 | 12 | approx. 40 |
