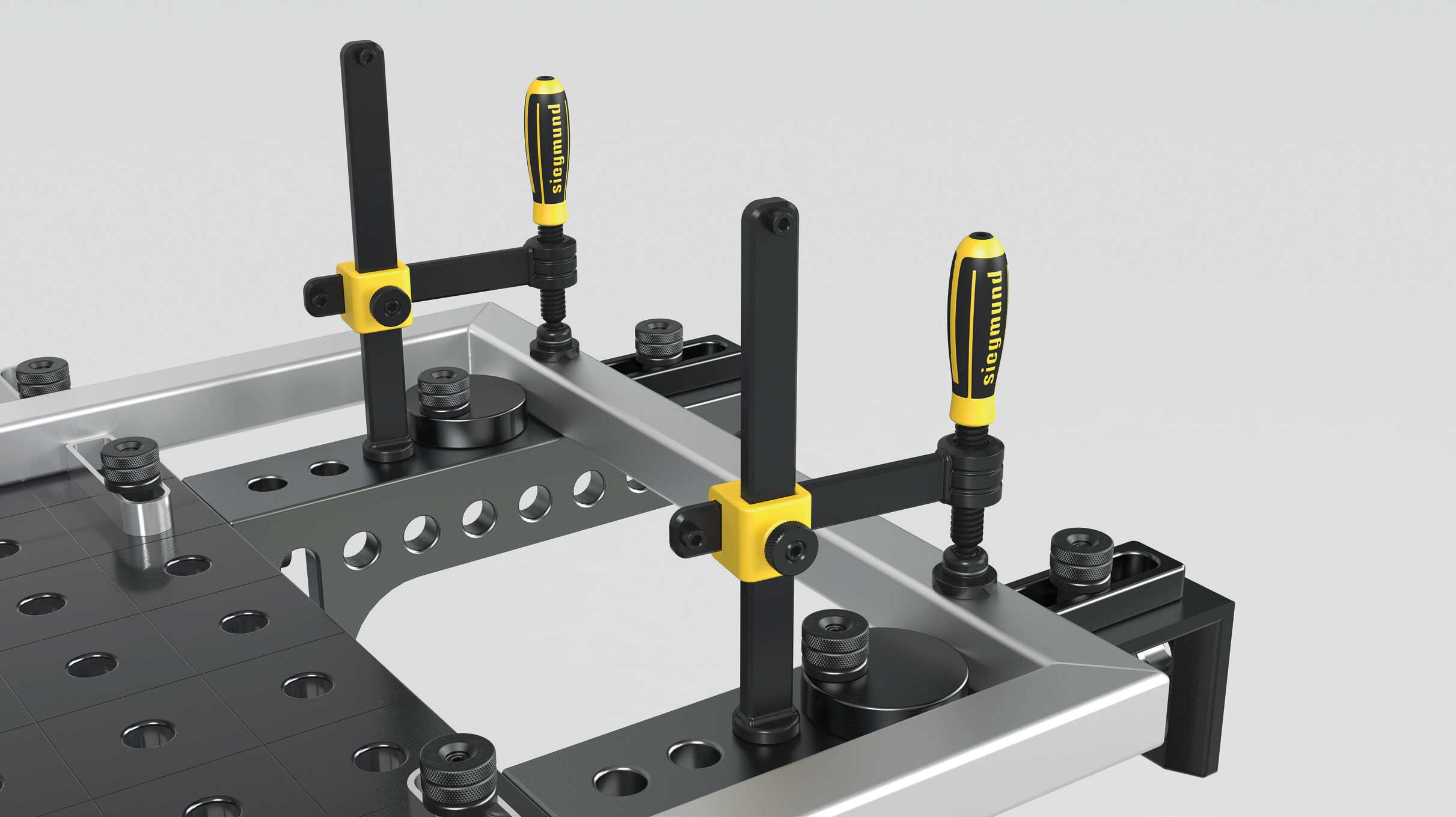

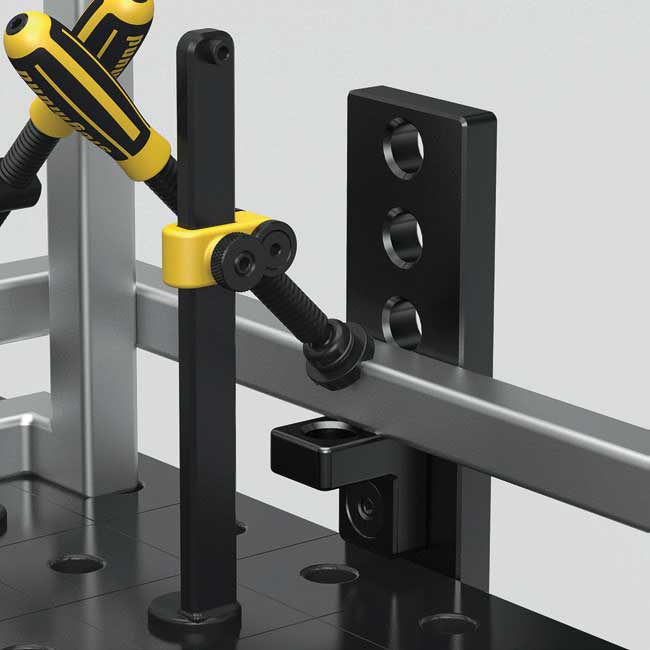

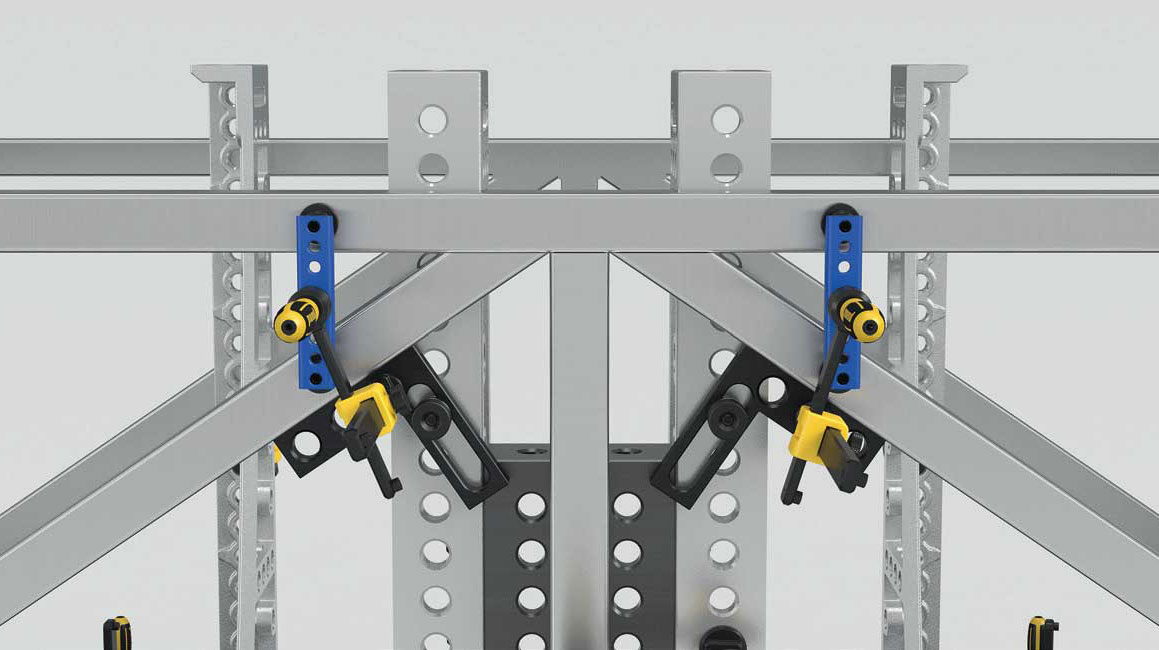

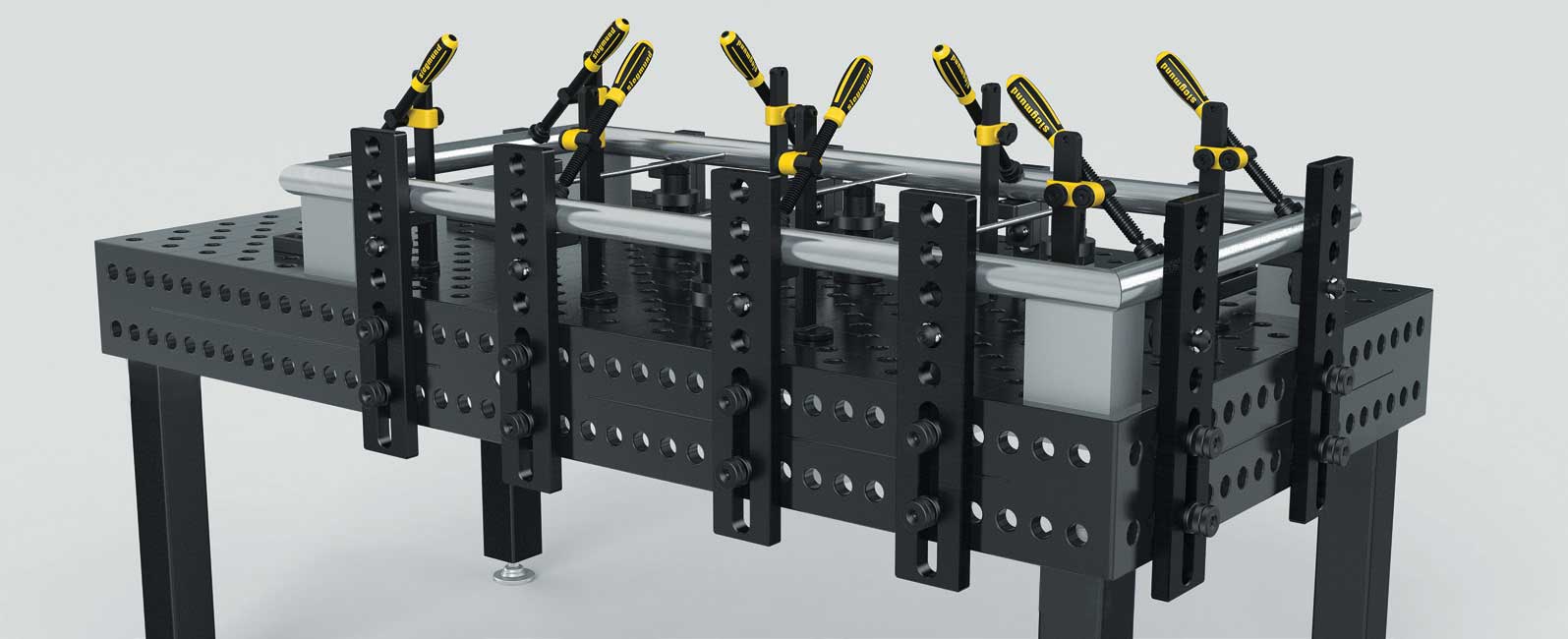

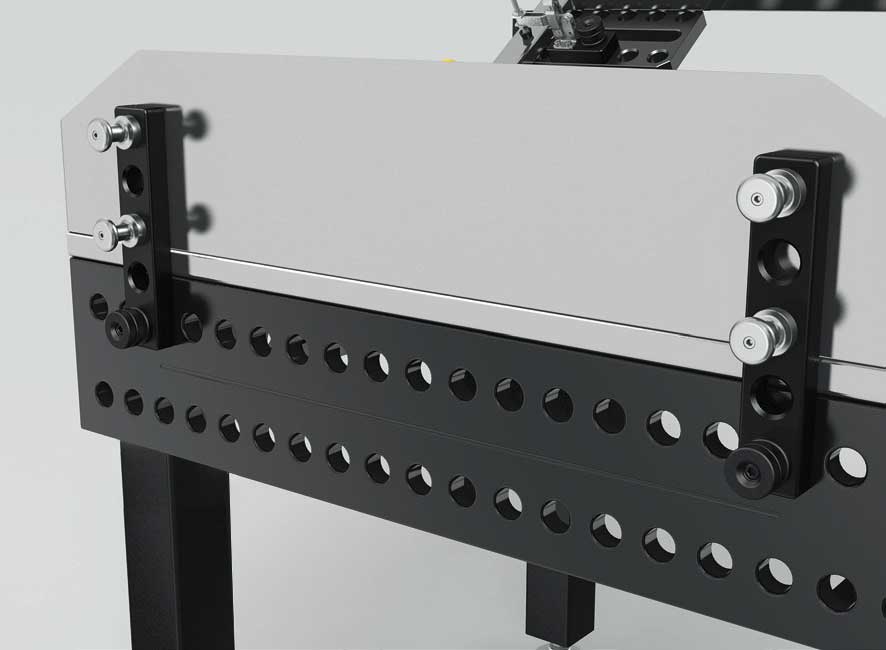

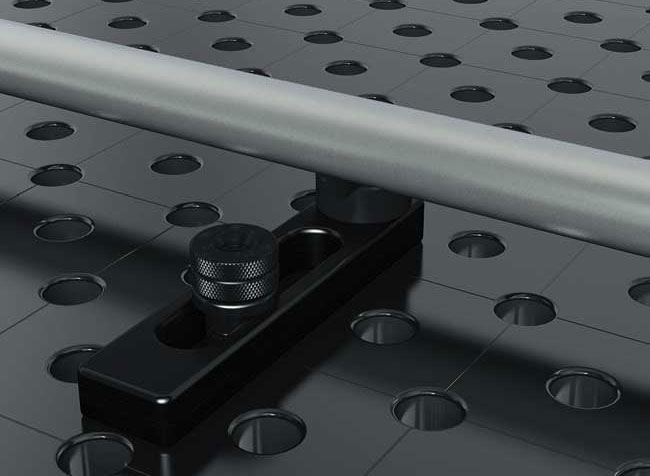

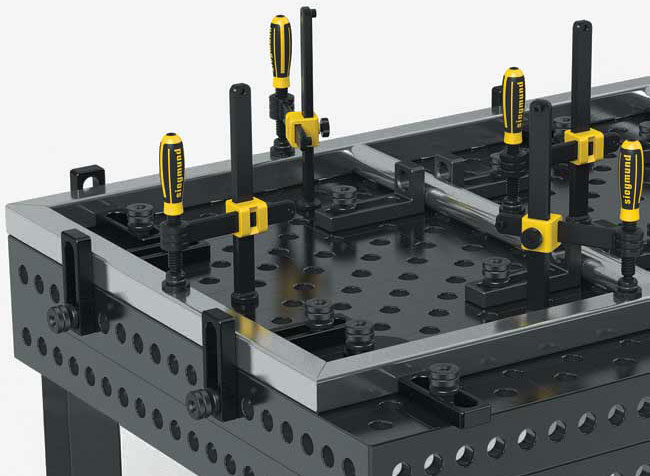

Stops are used to align work pieces anywhere on the table. Oblong slots provide adjustment while holes provide anchoring points for accessories such as clamps and V-Prisms.

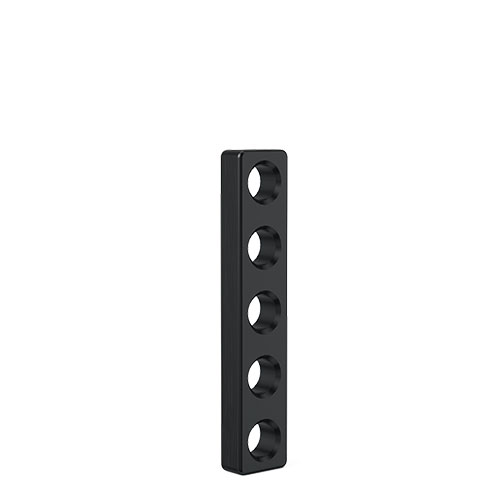

S2-280409
S2-280407
S2-280408
S2-280410-N
S2-280420-N
S2-280430
S2-280432
| Item Number | Name | Length (mm) | Width (mm) | Thickness (mm) | Slot Length (mm) | Weight (kg) |
|---|---|---|---|---|---|---|

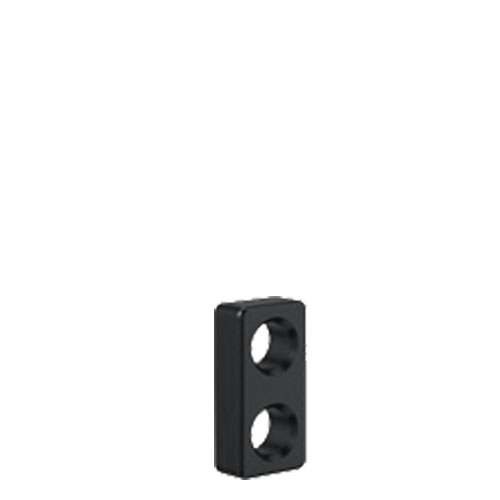

| S2-280407 | Universal Stop 100 L | 100 | 50 | 25 | - | 0.8 |

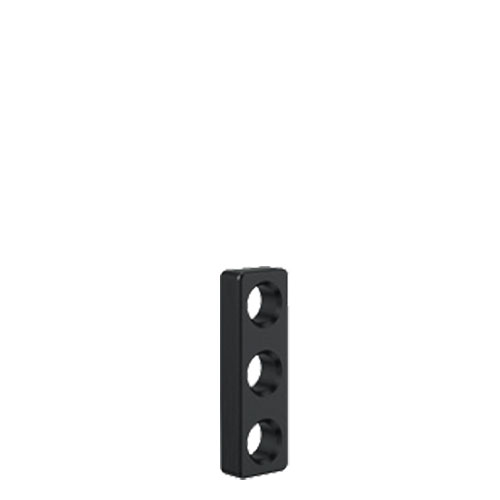

| S2-280408 | Universal Stop 150 L | 150 | 50 | 25 | - | 1.1 |
| S2-280409 | Universal Stop 250 L | 250 | 50 | 25 | - | 1.8 |
| S2-280410-N | Universal Stop 150 L (Nitrided) | 150 | 50 | 25 | 100 | 0.8 |
| S2-280420-N | Universal Stop 225 L (Nitrided) | 225 | 50 | 25 | 100 | 1.4 |
| S2-280430 | Universal Stop 500 S | 500 | 100 | 25 | 200 | 7.9 |

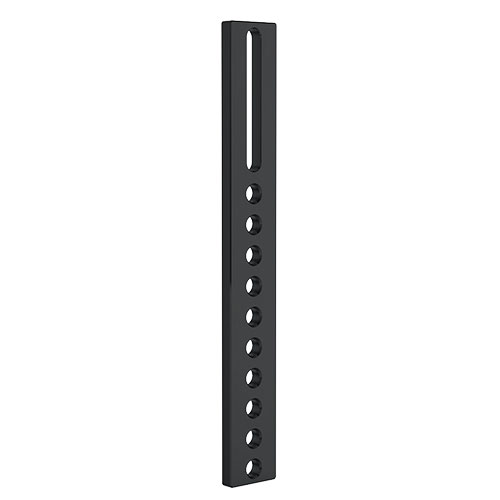

| S2-280432 | Universal Stop 750 S | 750 | 100 | 25 | 200 | 12.1 |

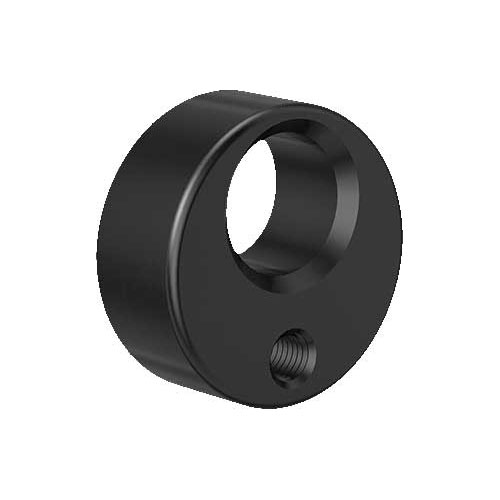

Eccentric Stops provide infinite adjustment in a compact package. Item S2-280402 can also be used as a ground connection and features an M10 thread.
S2-280402
S2-280403
| Item Number | Name | Diameter (mm) | Thickness (mm) | Weight (kg) |
|---|---|---|---|---|
| S2-280402 | Eccentric Stop 60 | 60 | 25 | 0.4 |

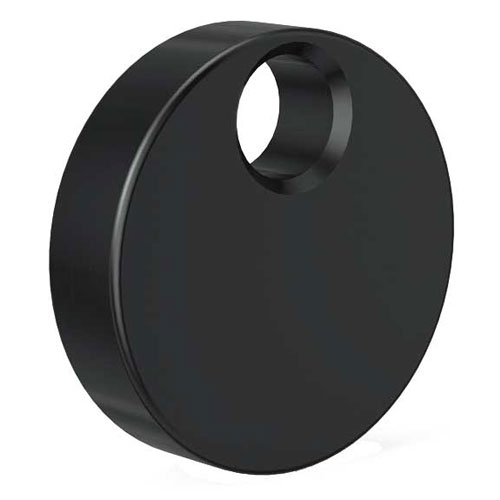

| S2-280403 | Eccentric Stop 100 | 100 | 25 | 1.4 |

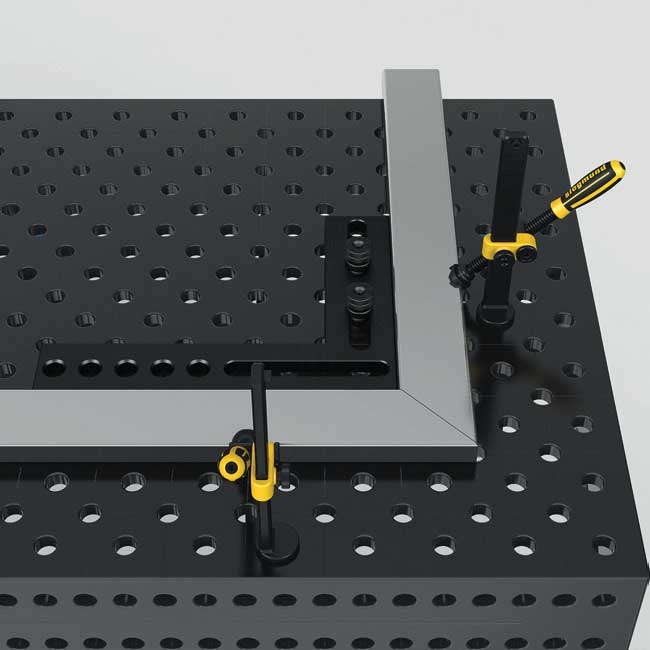

Flat Squares provide a broad adjustable stopping surface and an alternate, compact method of creating right angle fixtures.

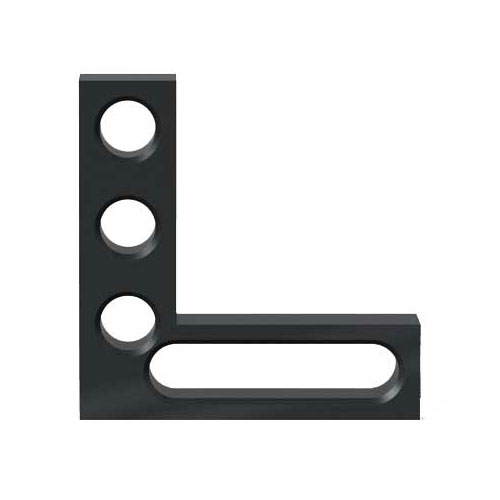

S2-280445
S2-280444
| Item Number | Name | Length (mm) | Width (mm) | Thickness (mm) | Weight (kg) |
|---|---|---|---|---|---|
| S2-280445 | Flat Square 175 - 100 mm slot | 175 | 175 | 25 | 1.9 |

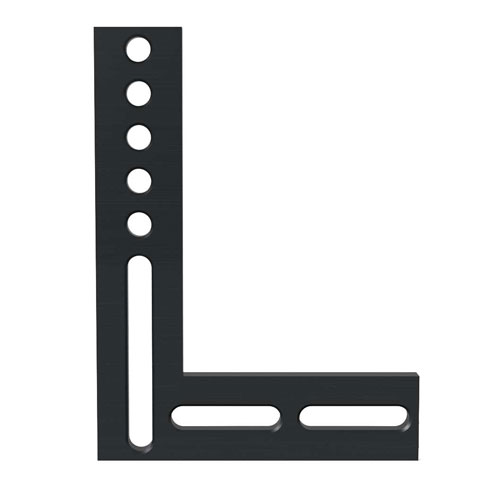

| S2-280444 | Flat Square 500 - 200 mm slot | 500 | 375 | 25 | 12.0 |
Small stop and clamping squares are used for mounting in tight spaces.
S2-280105
S2-280107
| Item Number | Name | Length (mm) | Width (mm) | Thickness (mm) | Weight (kg) |
|---|---|---|---|---|---|

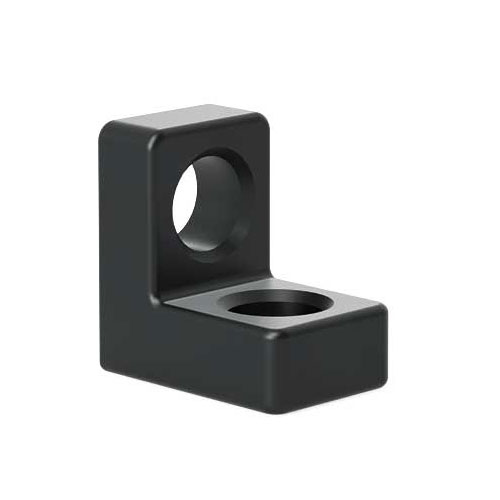

| S2-280105 | Stop and Clamping Square 75 L | 75 | 50 | 25 | 1.0 |

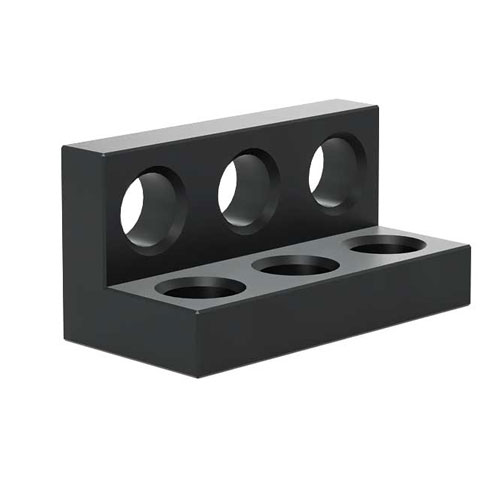

| S2-280107 | Mounting Square | 75 | 150 | 25 | 2.9 |
