S2-280303-P
| Item Number | Description | Length (mm) | Width (mm) | Height (mm) | Weight (kg) |
|---|---|---|---|---|---|
| S2-280303-P | Clamping Rail 1,000 x 100 x 100 | 1000 | 100 | 100 | 48 |
S2-280302
S2-280195

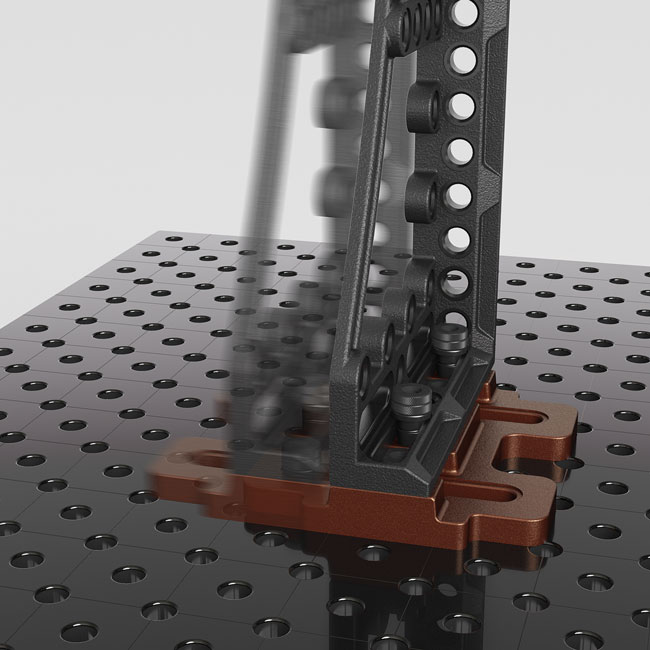

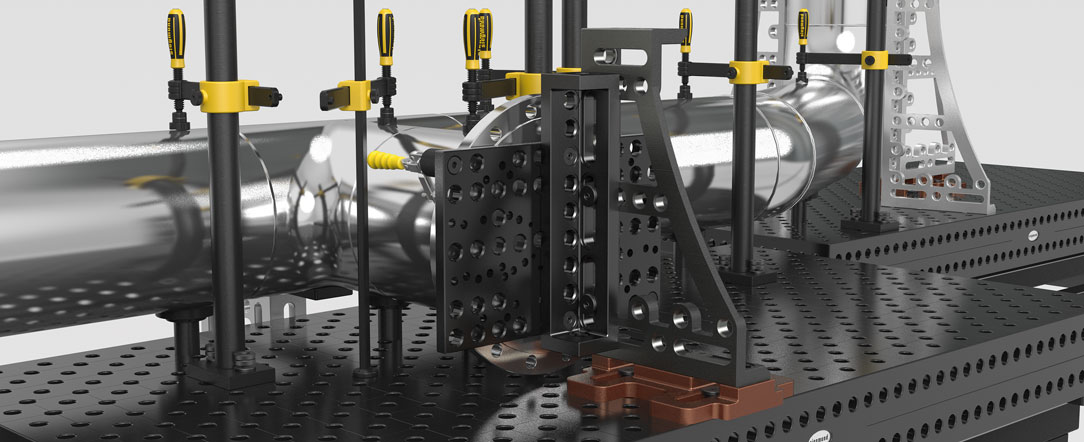

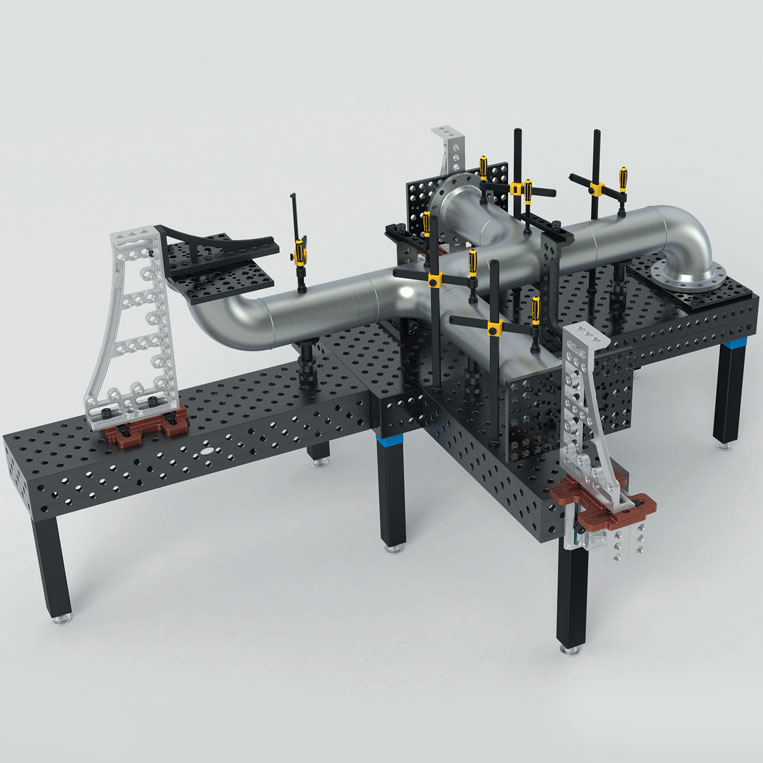

The Sliding Base and Slotted Square together provide 3-axis adjustment for heavy fixtures. They work especially well in combination with Flange Clamping Plates and 3D Clamping Squares for pipefitting applications.
The Sliding Base should be bolted to the table with a low profile clamping bolt, item S2-280522 to ensure proper clearance between the base and clamping square when sliding.
| Item Number | Description | Length (mm) | Width (mm) | Thickness (mm) | Weight (kg) |
|---|---|---|---|---|---|

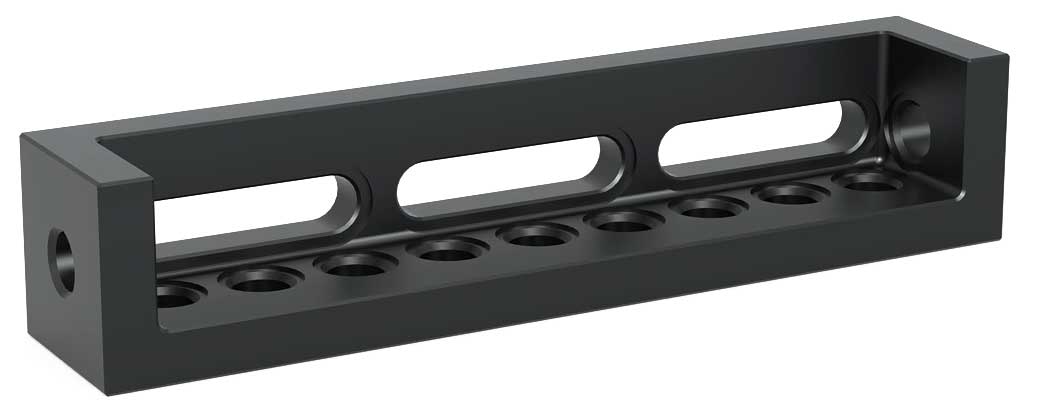

| S2-280302 | Slotted Adj. Square Cast Iron | 500 | 100 | 100 | 16 |

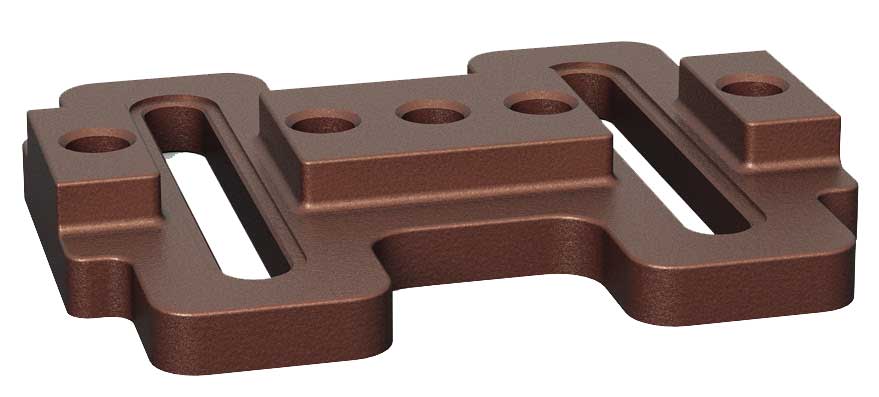

| S2-280195 | Sliding Base | 350 | 300 | 50 | 16 |
