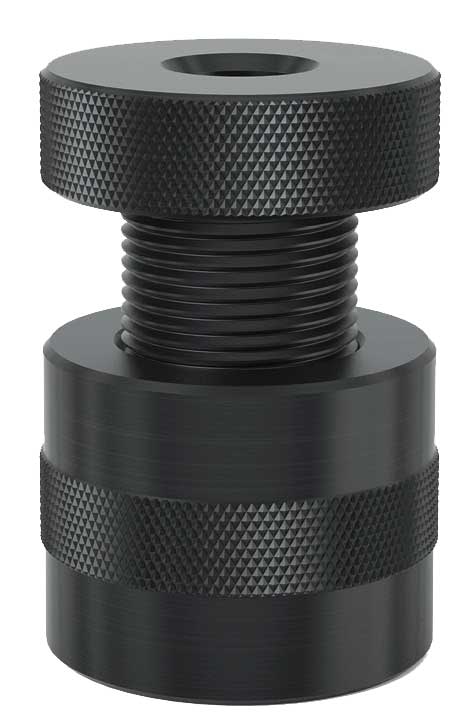

S2-160822
Screw Support, especially intended for vernier adjustments ranging from 50 - 70 mm. Height compensation can be substantially increased by using prism extensions and the set of supports.

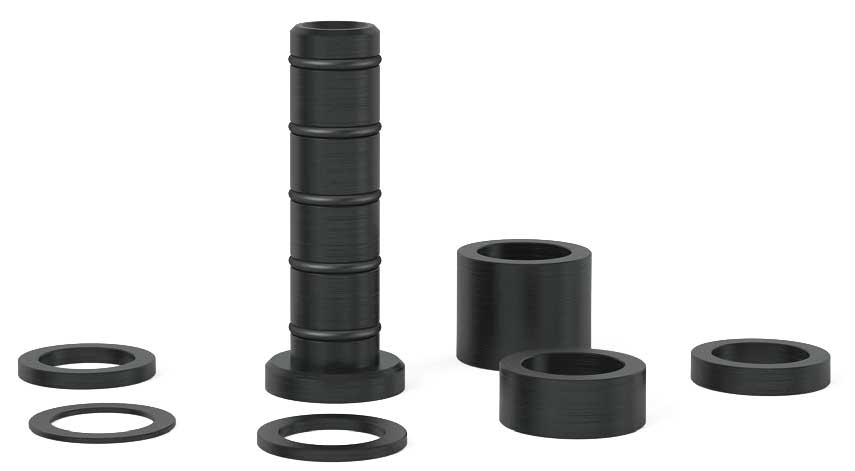

7-piece Set of Supports, offers the option to create height-adjustable work surfaces. The individual supports can be utilized to compensate for height differences of 1 - 60 mm. In order to achieve the intended height precisely, the lowest grading of the Supports is 1 mm. The measurements are specified on the particular discs.
S2-160821
S2-160649
S2-160649-0
S2-160649-1
S2-160649-2

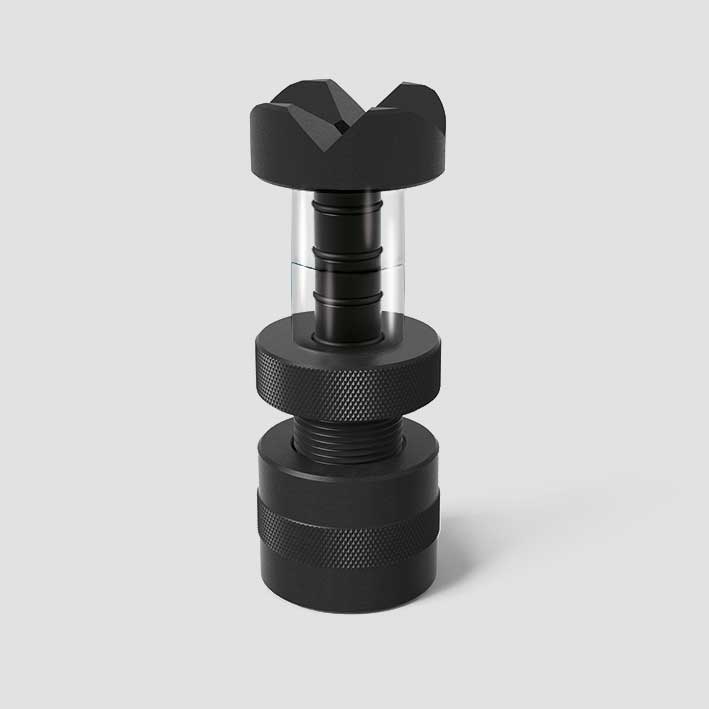

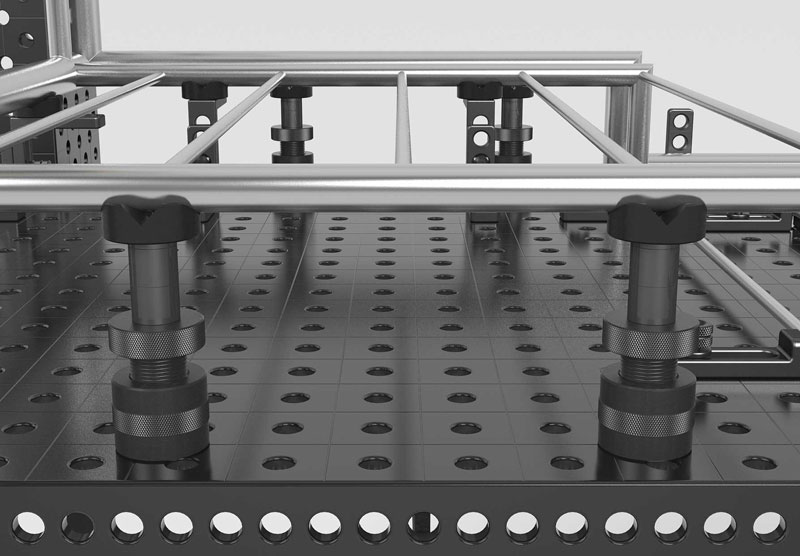

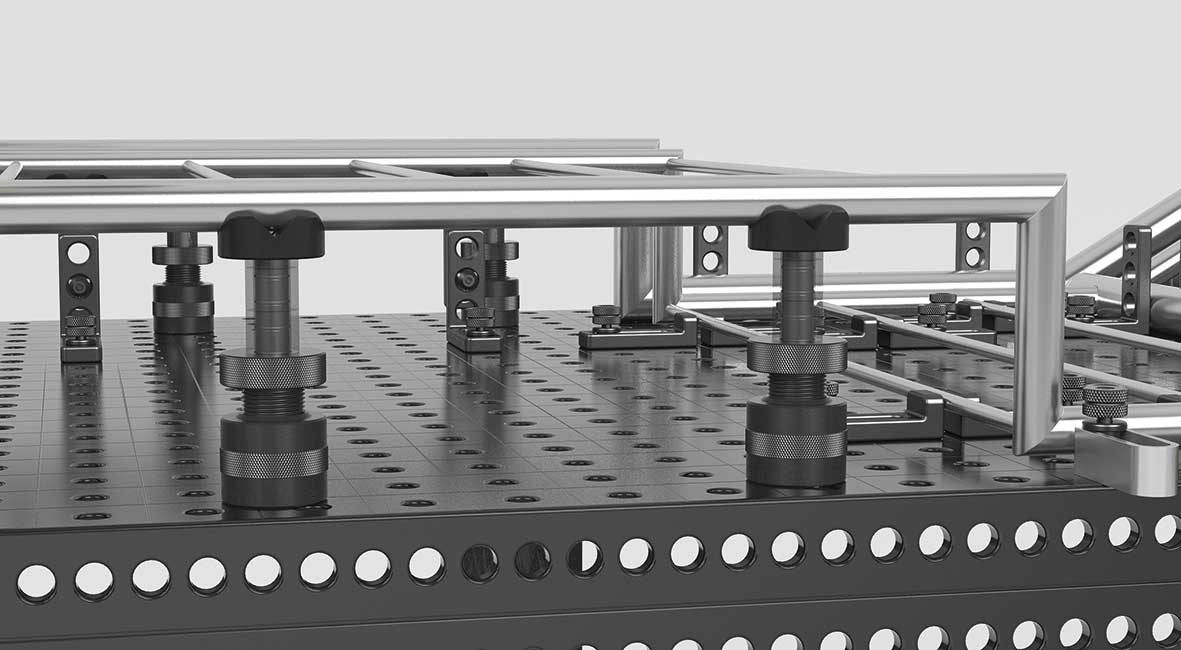

The Prism extension can be quickly and securely screwed in all prisms and enables positioning of the prism at different heights in combination with spacers (Item No. S2-280821). With the screw support (Item No. S2-280822) an infinitely variable positioning is possible.

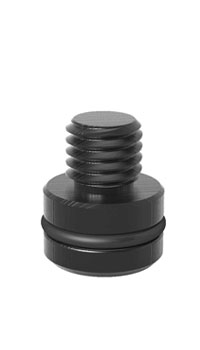

S2-160649 is a collar which inserts into the system holes.

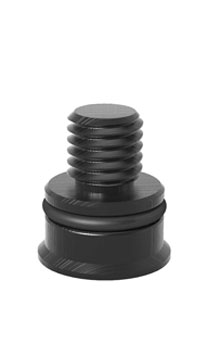

S2-160649-0 has a flush mount protrusion to securely mount into system holes.
| Item Number | Name | Height (mm) | Dia. (mm) | Weight (kg) |
|---|---|---|---|---|
| S2-160822 | Screw Support Ø 50 - Burnished | 50 - 70 | 50 | 0.71 |
| S2-160821 | Set of Supports 7 pieces - Burnished Disc thickness: 1 / 2 / 3 / 5 / 10 / 20 mm |
65 | 25 | 0.17 |
| S2-160649 | Prism Screw-in Collar - Burnished | 19 | 16 | 0.02 |
| S2-160649-0 | Special screw - for prisms system 16 | 20 | 16 | 0.02 |

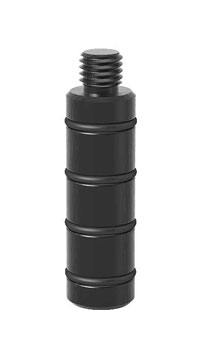

| S2-160649-1 | Prism Extension 50 - Burnished |
50 | 16 | 0.08 |

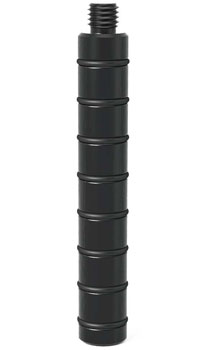

| S2-160649-2 | Prism Extension 100 - Burnished |
100 | 16 | 0.15 |
