Cast Squares

3D Stop and Clamping Squares are manufactured from high quality ductile cast iron and specifically designed to handle heavy parts.

They serve equally well for stopping large parts, serving as table extensions, or building vertically. Cut outs are optimized for lighter weight and easier handling, while the hardening process makes them even stronger and more durable. New clamping squares with rotation slots provide more ways to create angled fixtures. Squares come in two versions with stops on either the left or right side.

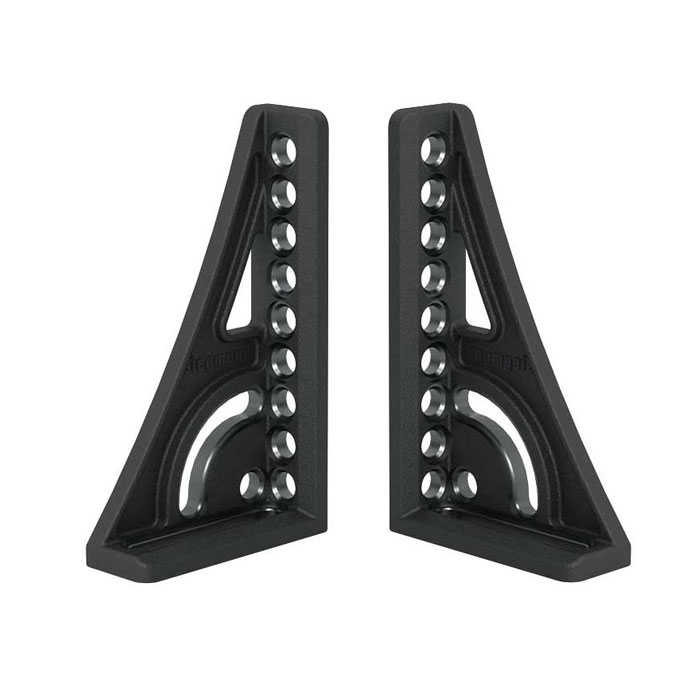

Cast Square S2-160161 / S2- 160163

S2-160161 / S2-160163

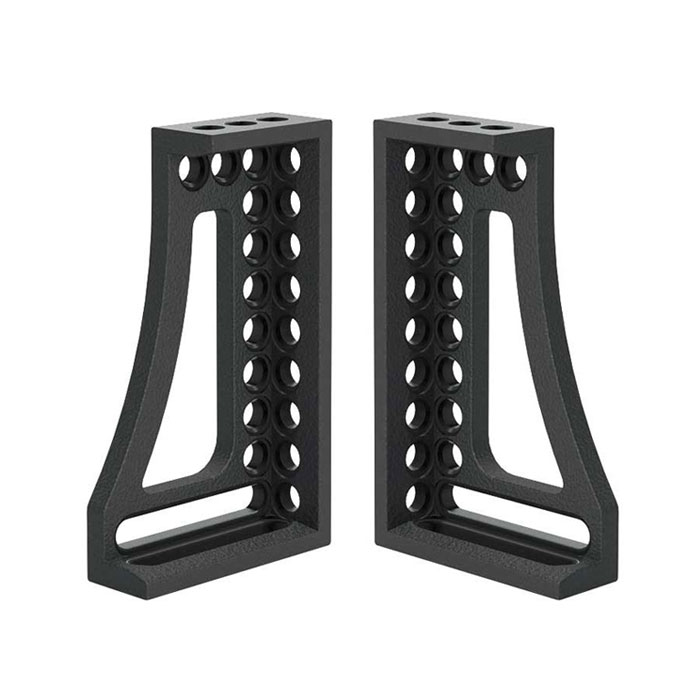

Cast Square S2-160124 / S2- 160126

S2-160124 / S2-160126

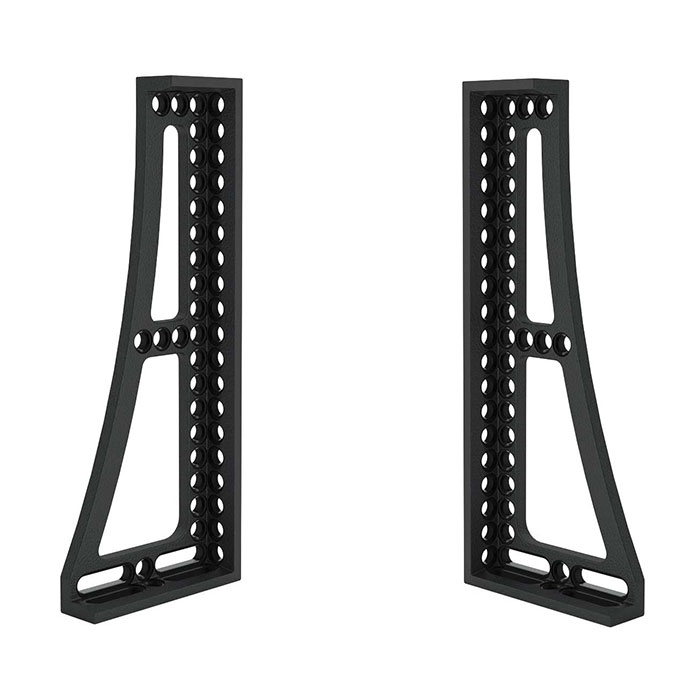

Cast Square S2-160134 / S2-160136

S2-160134 / S2-160136

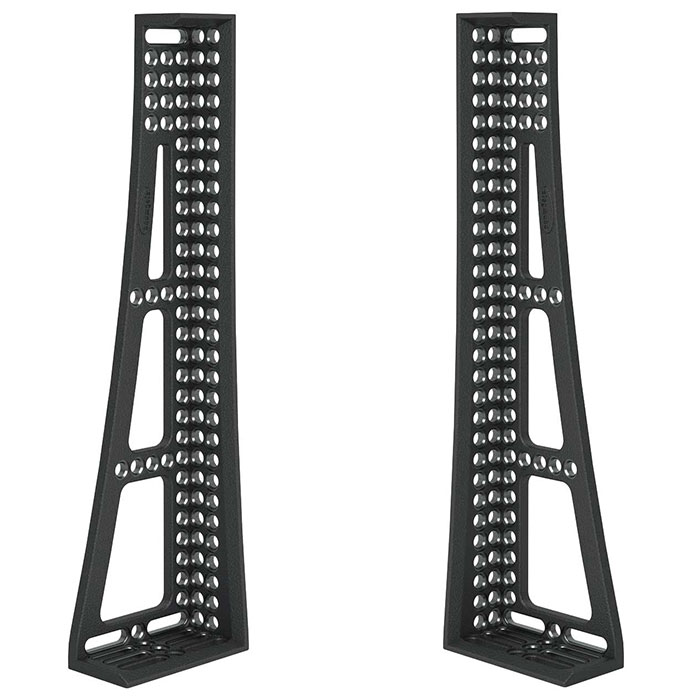

Cast Square S2-160146-P / S2-160148-P

S2-160146-P / S2-160148-P

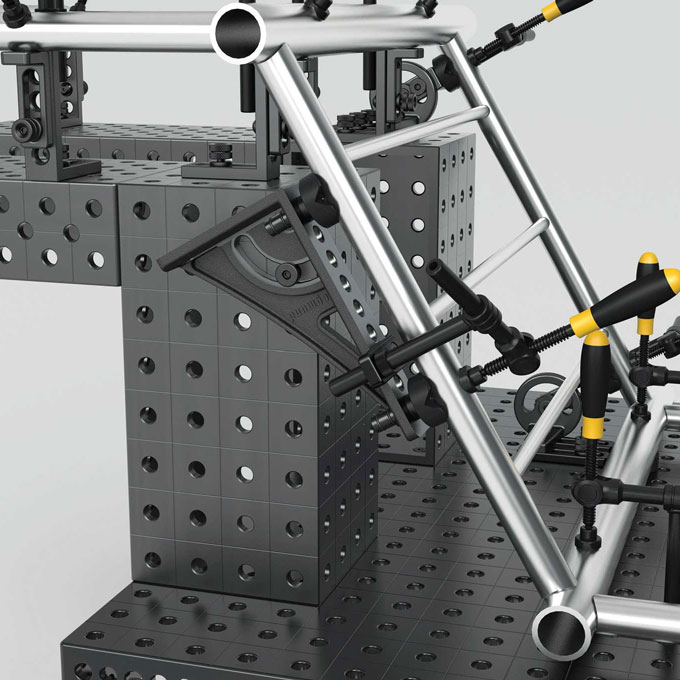

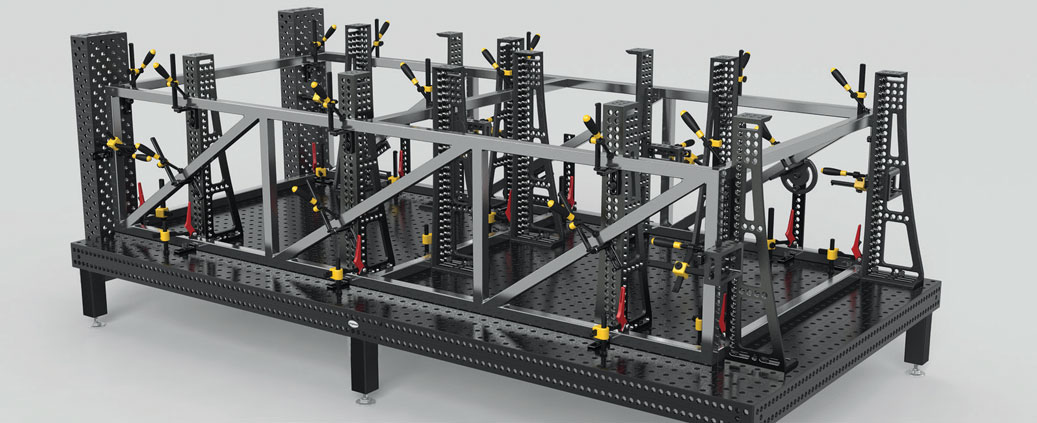

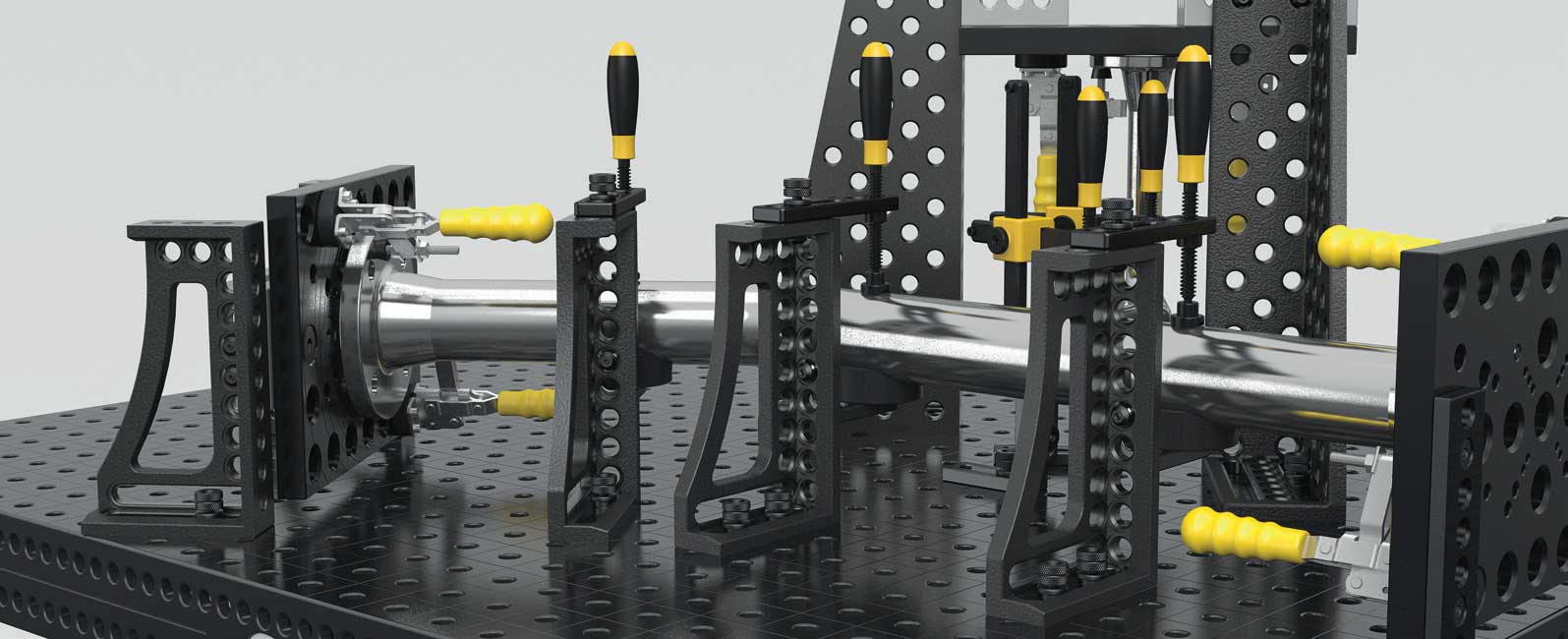

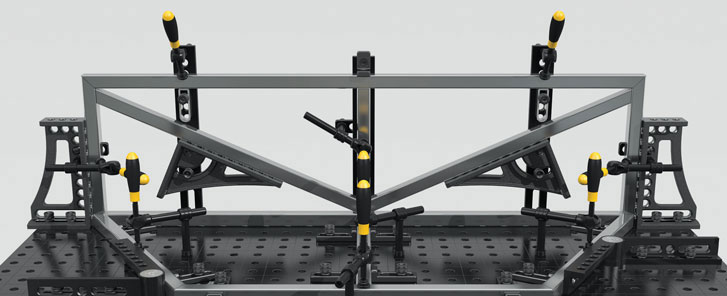

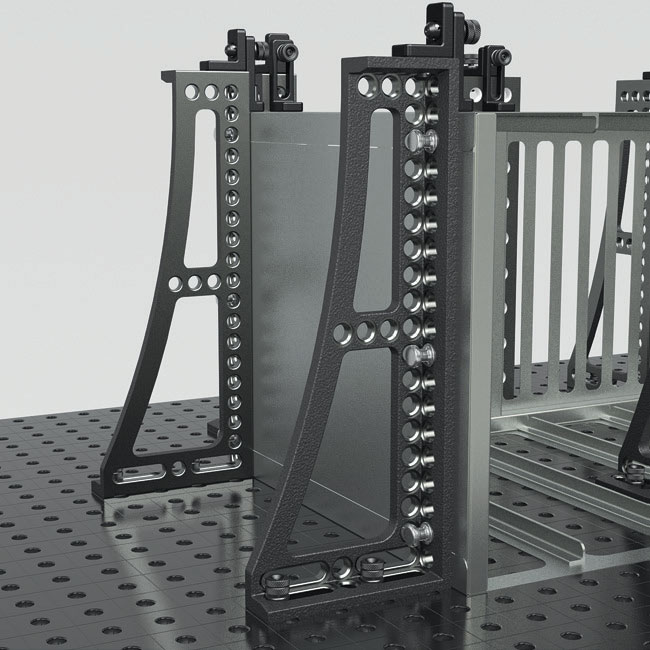

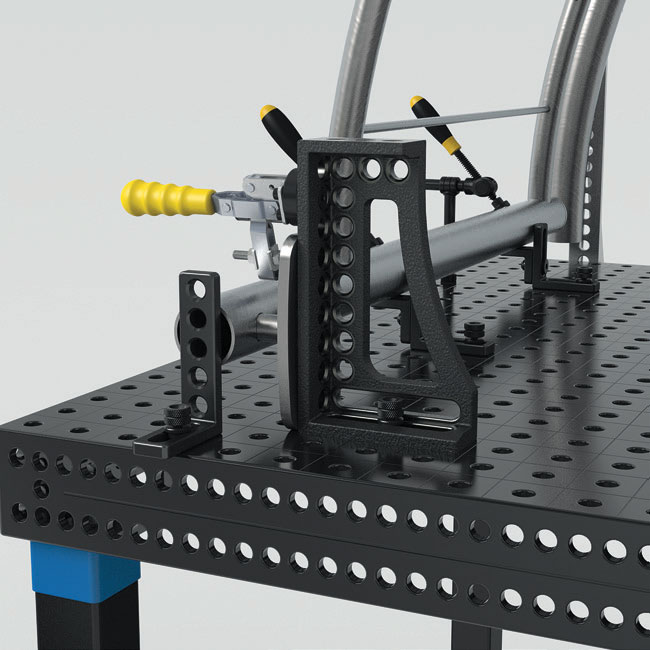

square application square application square application square application square application
Item Number Name Length (mm) Width (mm) Height (mm) Weight (kg)
S2-160161
S2-160163		 Stop and Clamping Square 250 G with rotation angle
- stop on left / right		 145 50 250 2.16
S2-160124
S2-160126		 Stop and Clamping Square 250 GK
- stop on left / right
- standard with fine scale		 145 50 250 2.10
S2-160134
S2-160136		 Stop and Clamping Square 500 GK
- stop on left / right
- standard with fine scale		 195 50 500 5.30
S2-160146-P
S2-160148-P		 Stop and Clamping Square 750 GK Plasma nitrided
- stop on left / right
- standard with fine scale		 200 100 750 8.30
